Chart F - Air Bag Warning Lamp Cannot Indicate DTC By Flashing

CHART F - AIR BAG WARNING LAMP CANNOT INDICATE DTC BY FLASHING

CAUTION:
- When measurements are requested in this chart use specified digital multimeter with correct terminal adapter from special tool (Connector test adapter kit).
- When a check for proper connection is requested refer to "INTERMITTENTS AND POOR CONNECTIONS" in this section.
- When an open in air bag wire harness, damaged wire harness, connector or terminal is found, replace wire harness, connectors and terminals as an assembly.

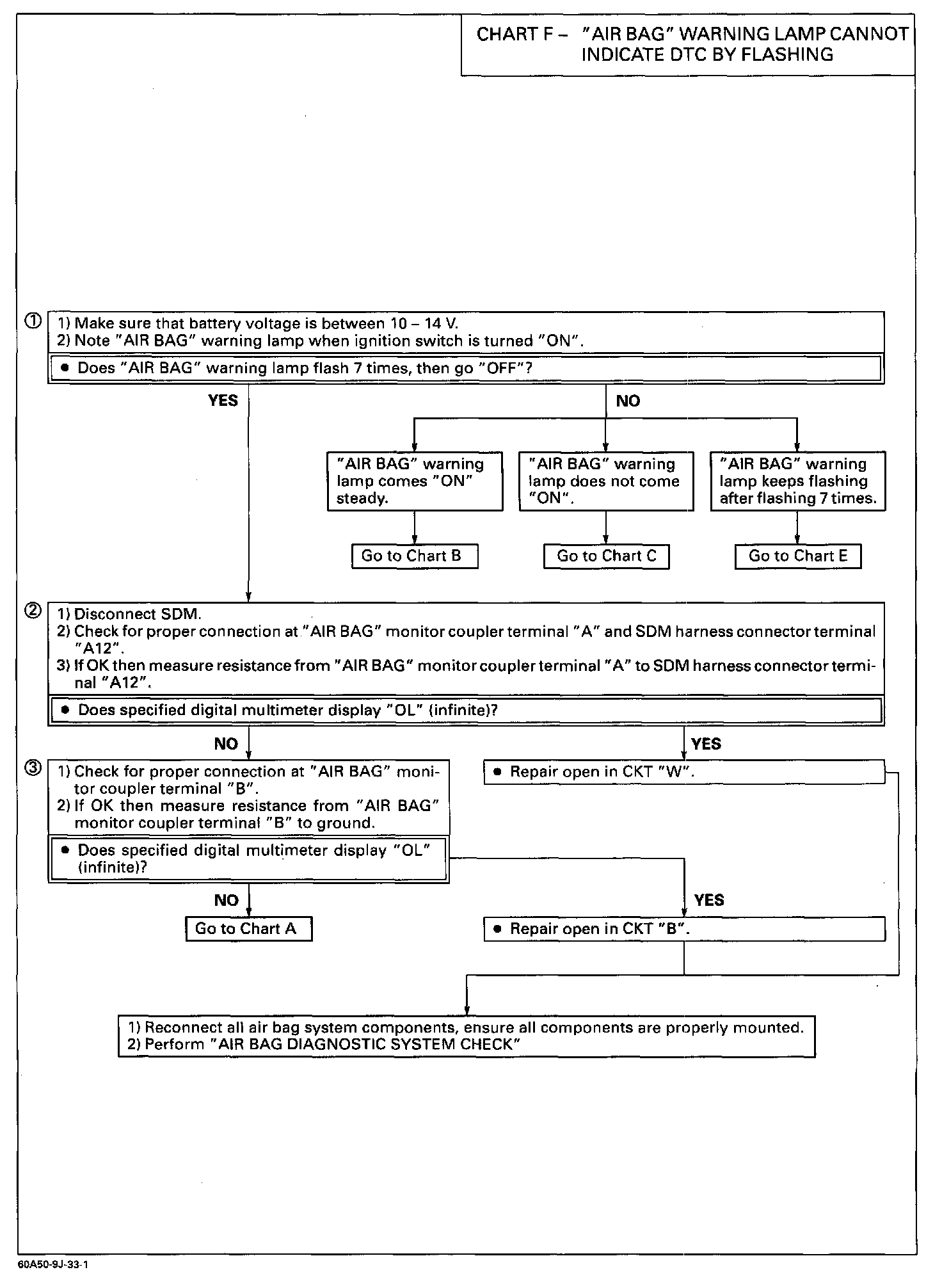

CHART TEST DESCRIPTION: Number(s) below refer to circled number(s) on the diagnostic chart.

1) The "AIR BAG" warning lamp should flash 7 times after ignition is first turned "ON".
2) This test checks for an open in CKT "W".
3) This test checks for an open in CKT "B".

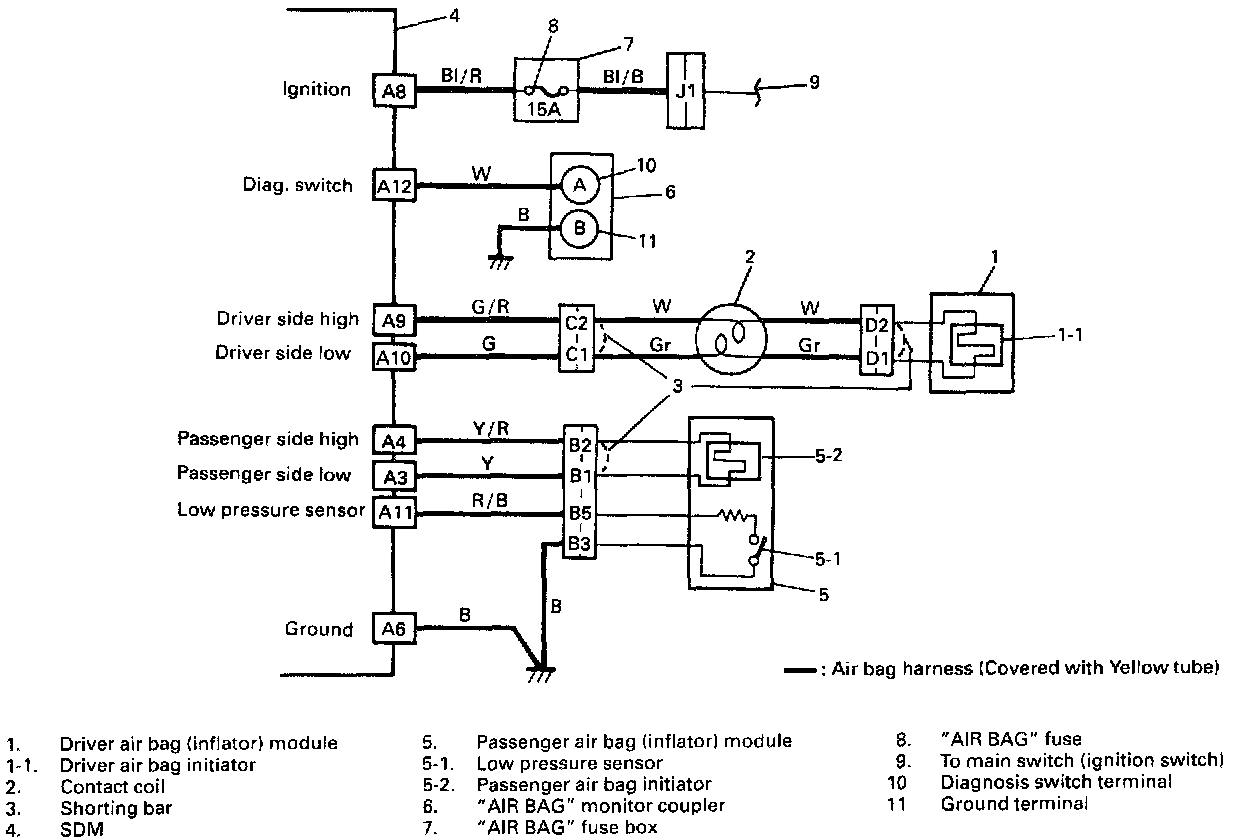

WIRING DIAGRAM
