Chart B-1 Fuel Pump Circuit Inspection
B-1
FUEL PUMP
CIRCUIT INSPECTION

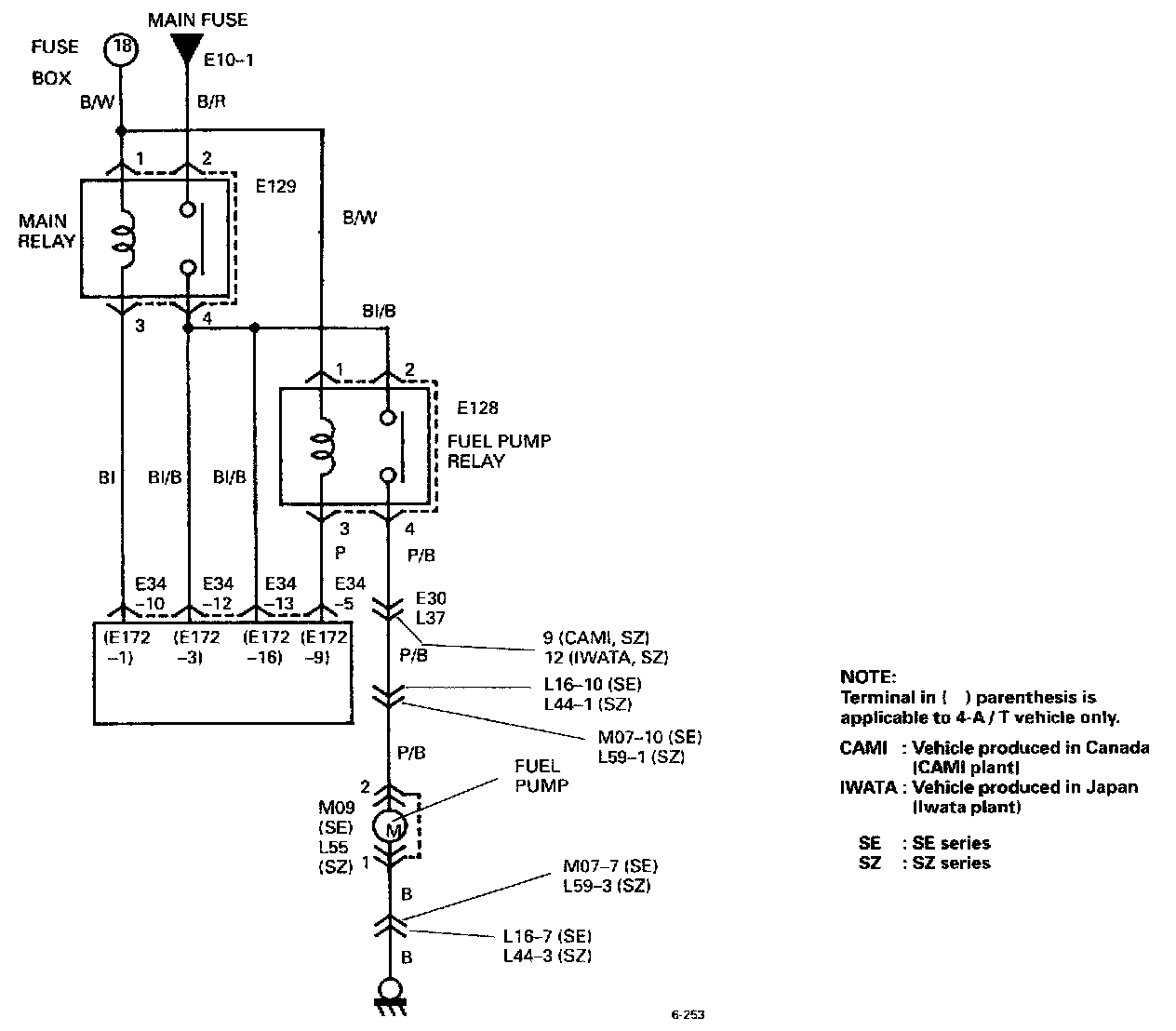

WIRING DIAGRAM

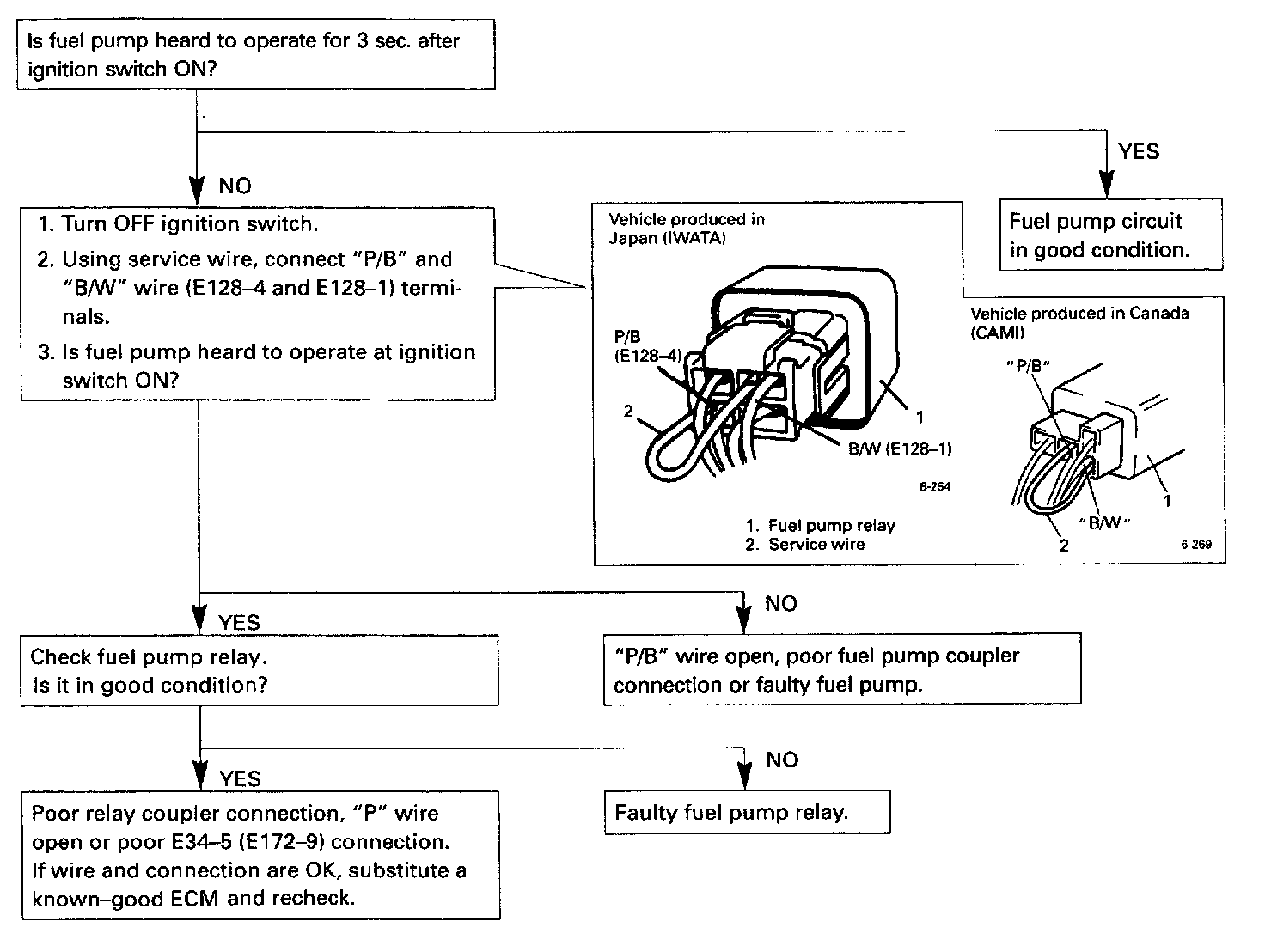

TROUBLESHOOTING
