Chart B-2: Fuel Injectors and Circuit Inspection
B-2 FUEL INJECTORS AND CIRCUIT INSPECTION

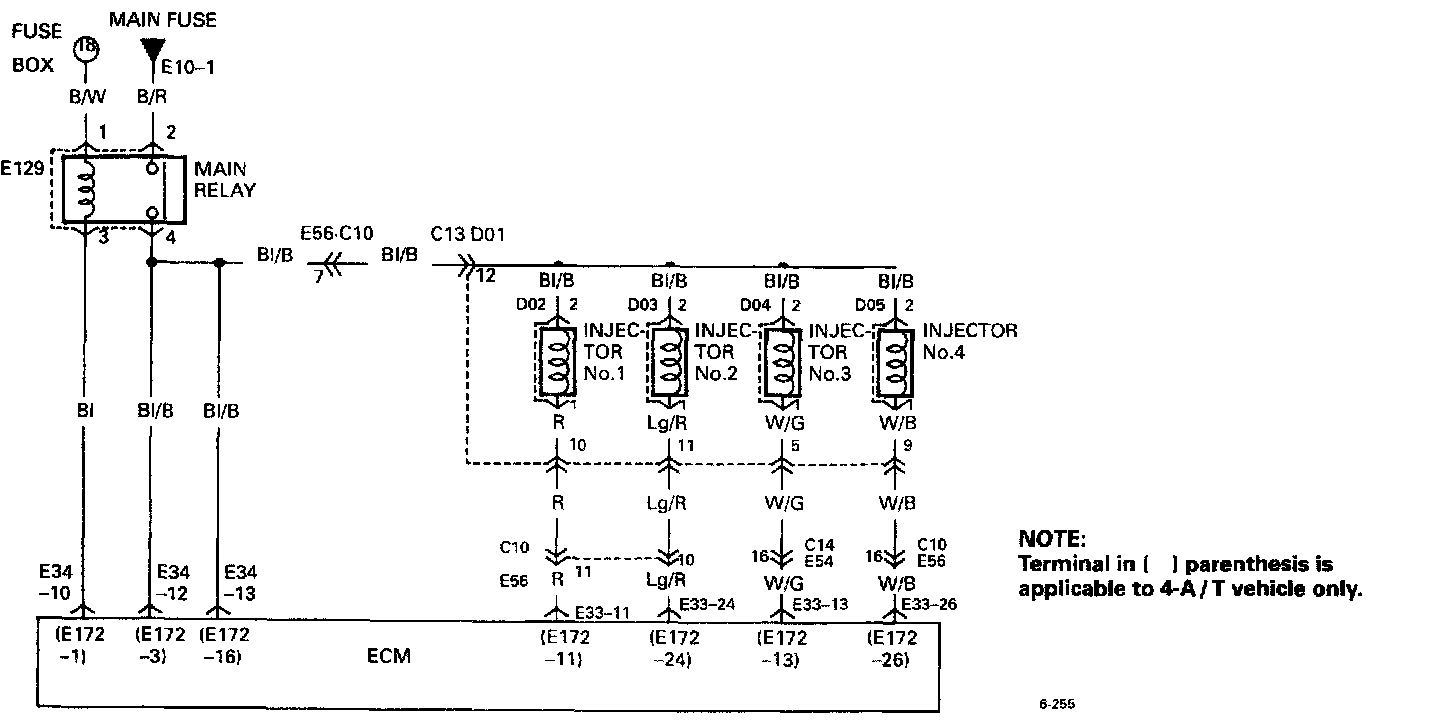

WIRING DIAGRAM

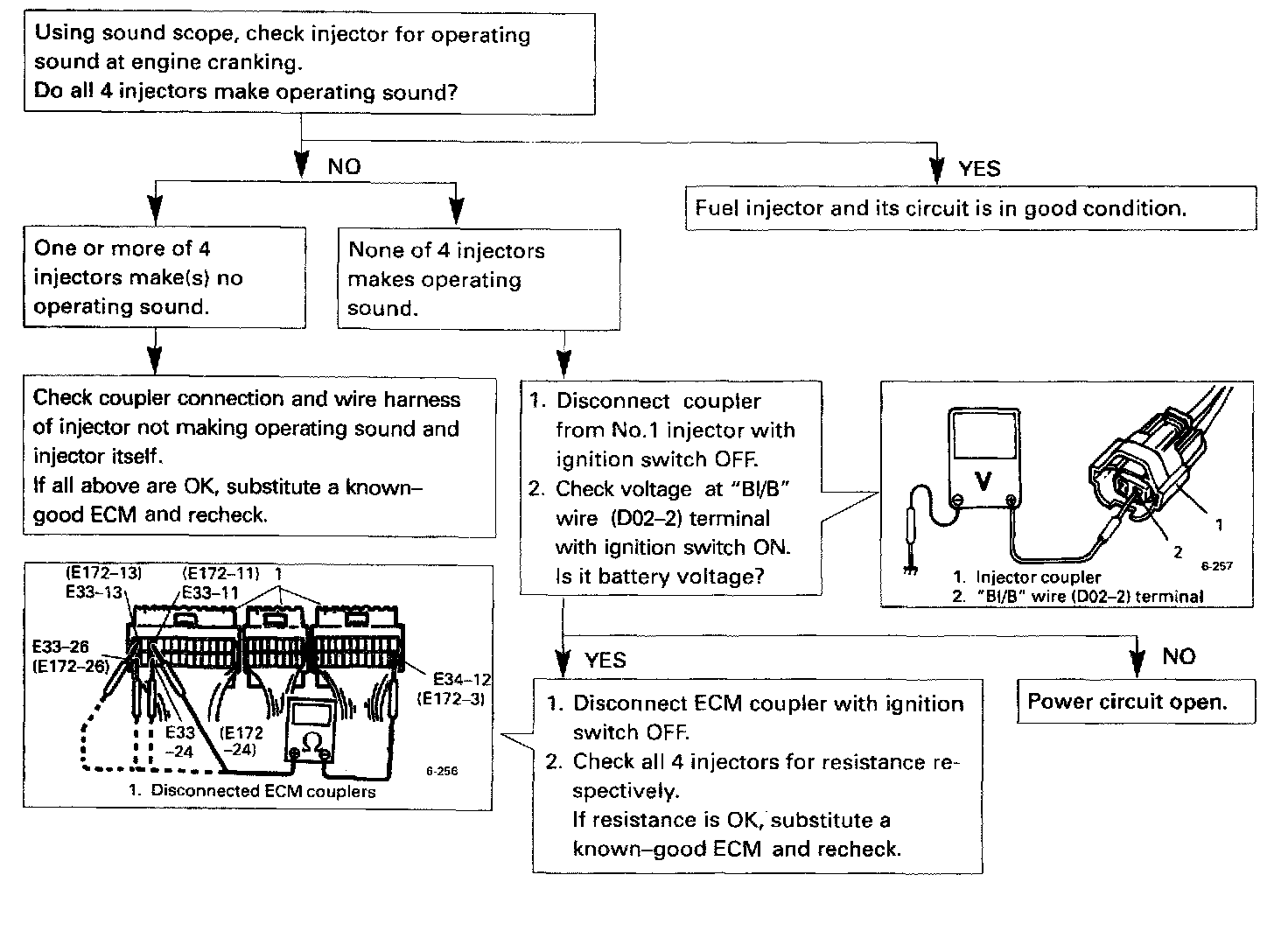

TROUBLESHOOTING
