Suzuki
>>
1998
>>
Sidekick JS 2D 2WD L4-1.6L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Data Link Connector
>>
Diagrams
>>
Connector Views
>>
E Connectors
>>
E126-E171
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
E126-E171

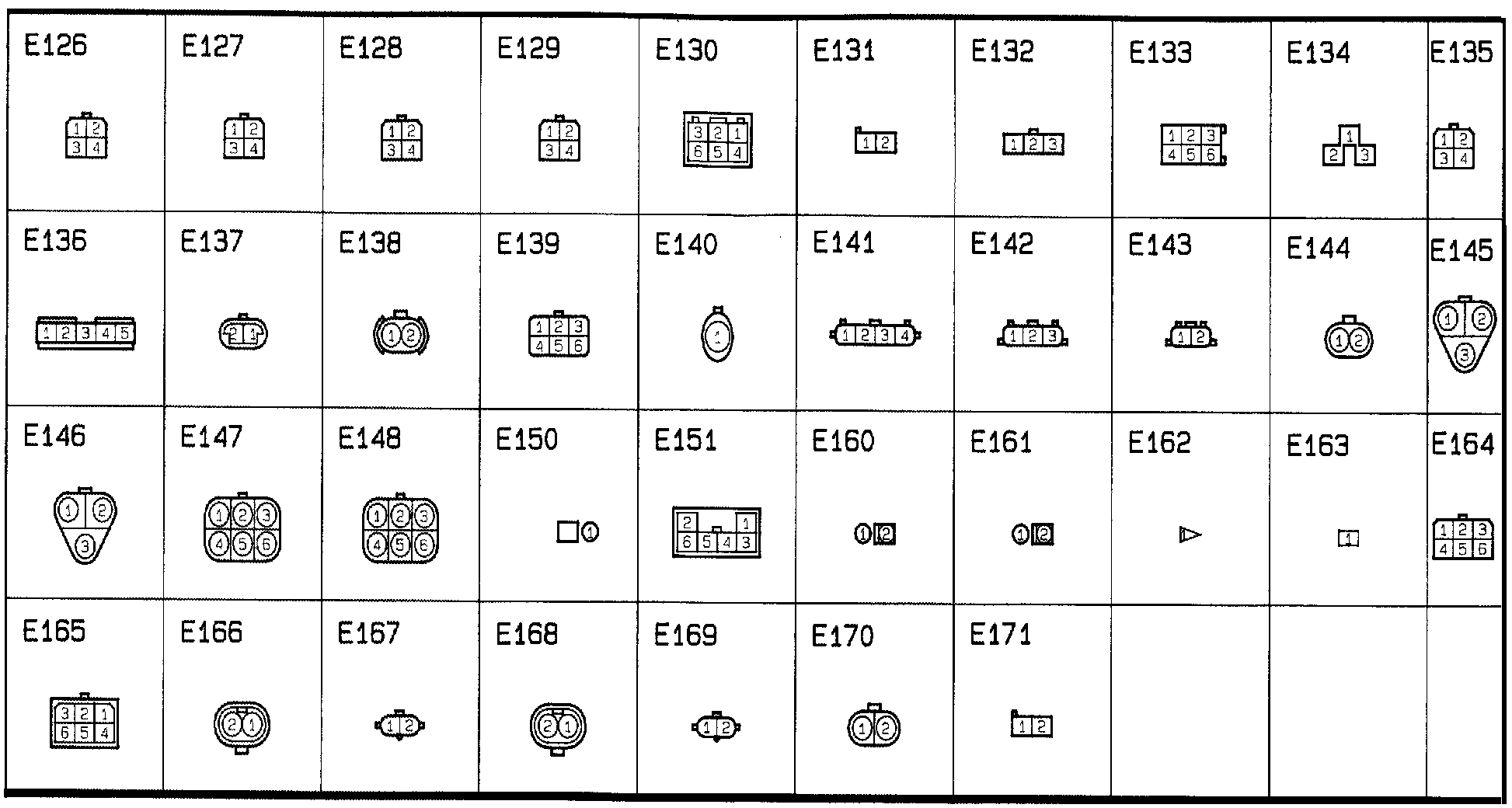

E Connectors - E126 To E171:
