P0705
DTC P0705 TRANSMISSION RANGE SWITCH CIRCUIT MALFUNCTION
WIRING DIAGRAM
DETECTING CONDITION

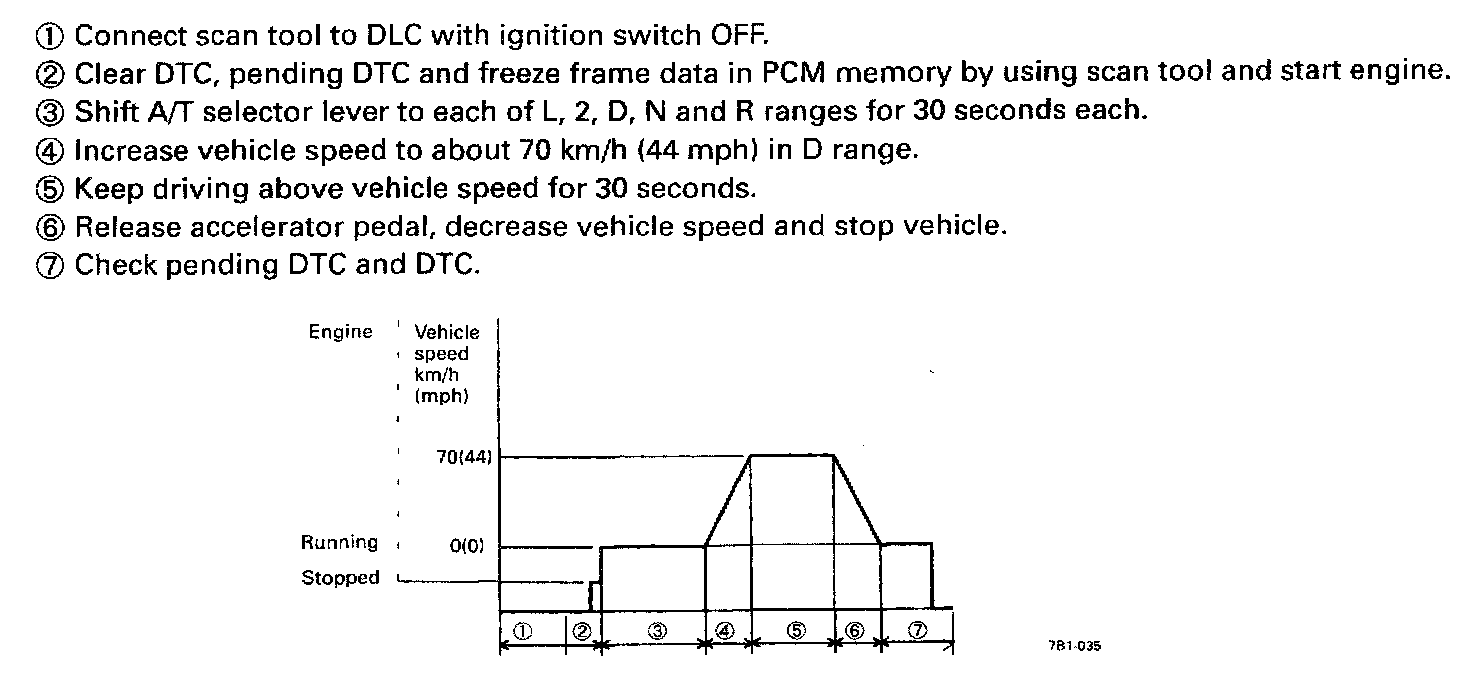

DTC CONFIRMATION PROCEDURE
WARNING:
- When performing a road test, select a place where there is no traffic or possibility of a traffic accident and be very careful during testing to avoid occurrence of an accident.
- Road test, should be carried out with 2 persons, a driver and a tester, on a level road.

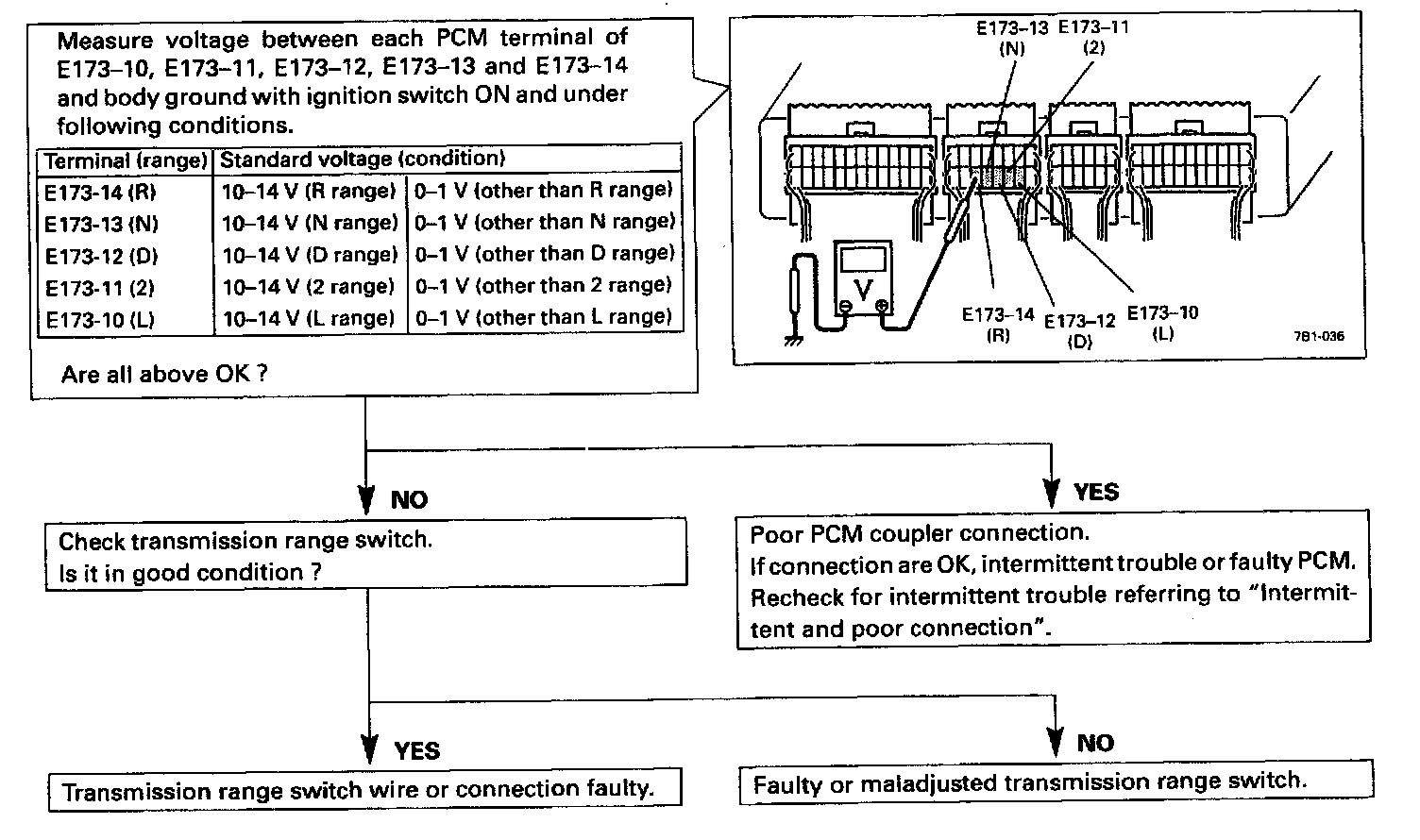

TROUBLESHOOTING
