P0463

DTC P0463 FUEL LEVEL SENSOR CIRCUIT HIGH INPUT





WIRING DIAGRAM






DETECTING CONDITION






DTC CONFIRMATION PROCEDURE

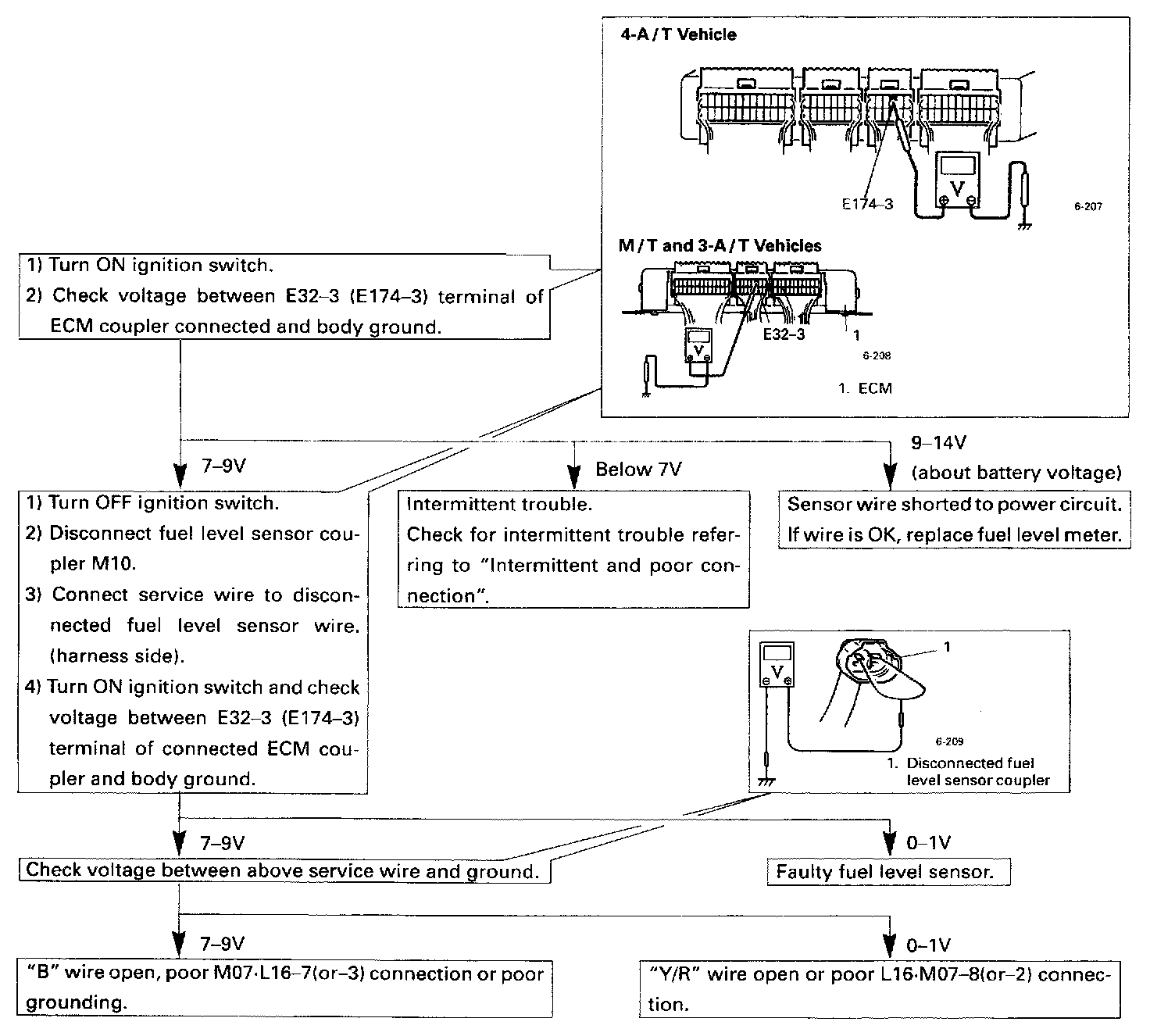

TROUBLESHOOTING
