P0118

DTC P0118 ENGINE COOLANT TEMPERATURE CIRCUIT HIGH INPUT





WIRING DIAGRAM





DETECTING CONDITION






DTC CONFIRMATION PROCEDURE

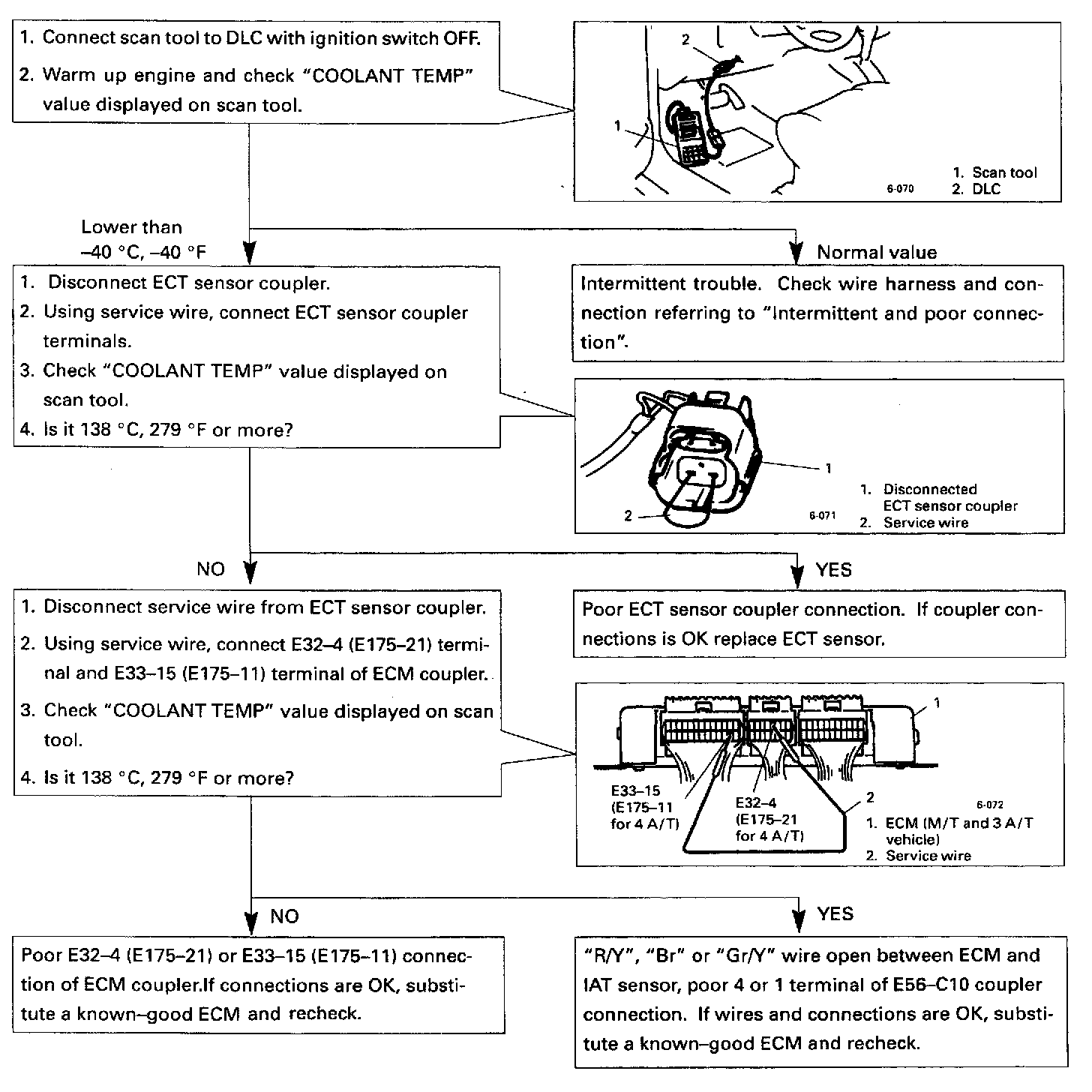

TROUBLESHOOTING
