P0117

DTC P0117 ENGINE COOLANT TEMP CIRCUIT LOW INPUT





WIRING DIAGRAM






DETECTING CONDITION





DTC CONFIRMATION PROCEDURE

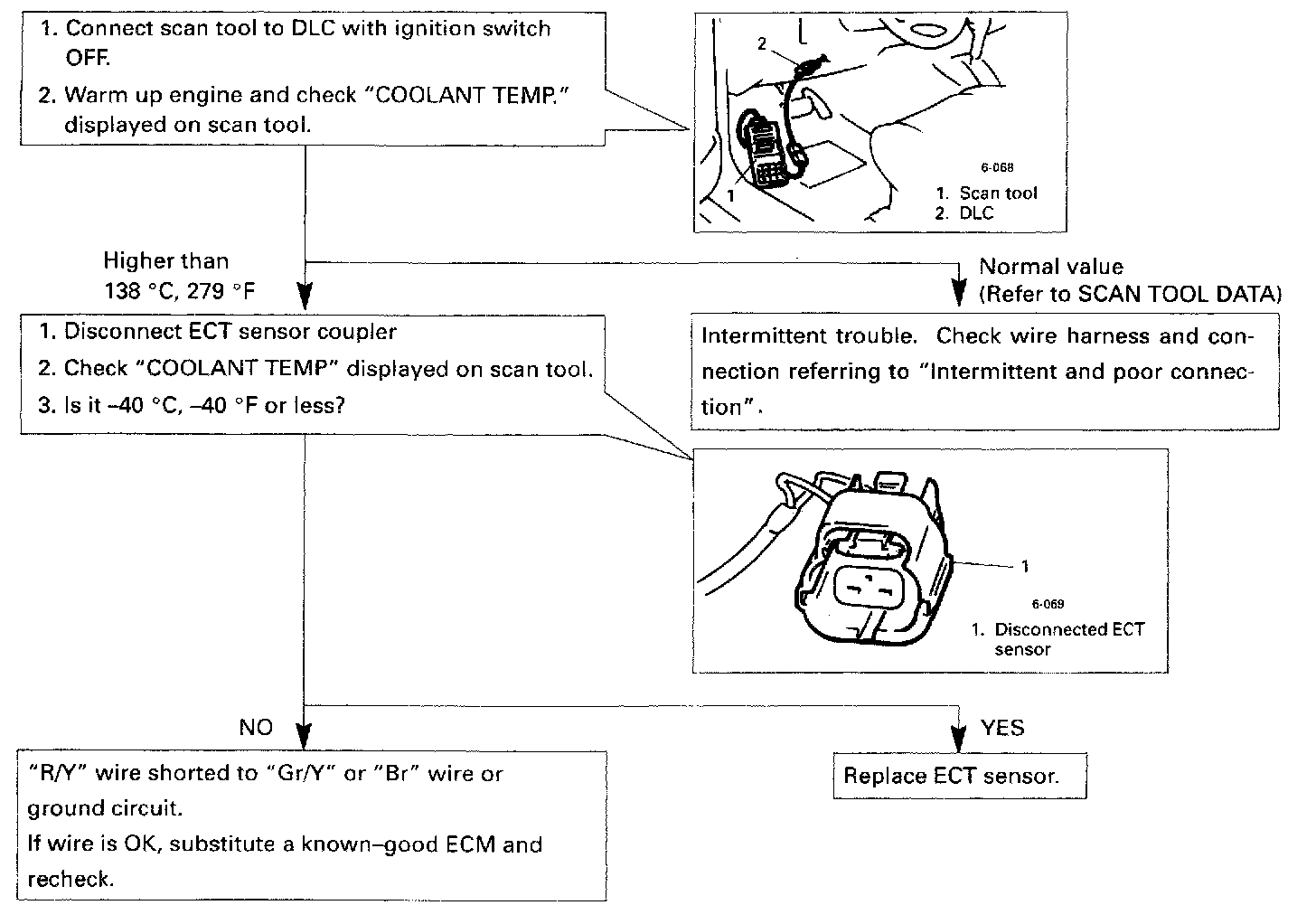

TROUBLESHOOTING
