Automatic Transmission/Transaxle

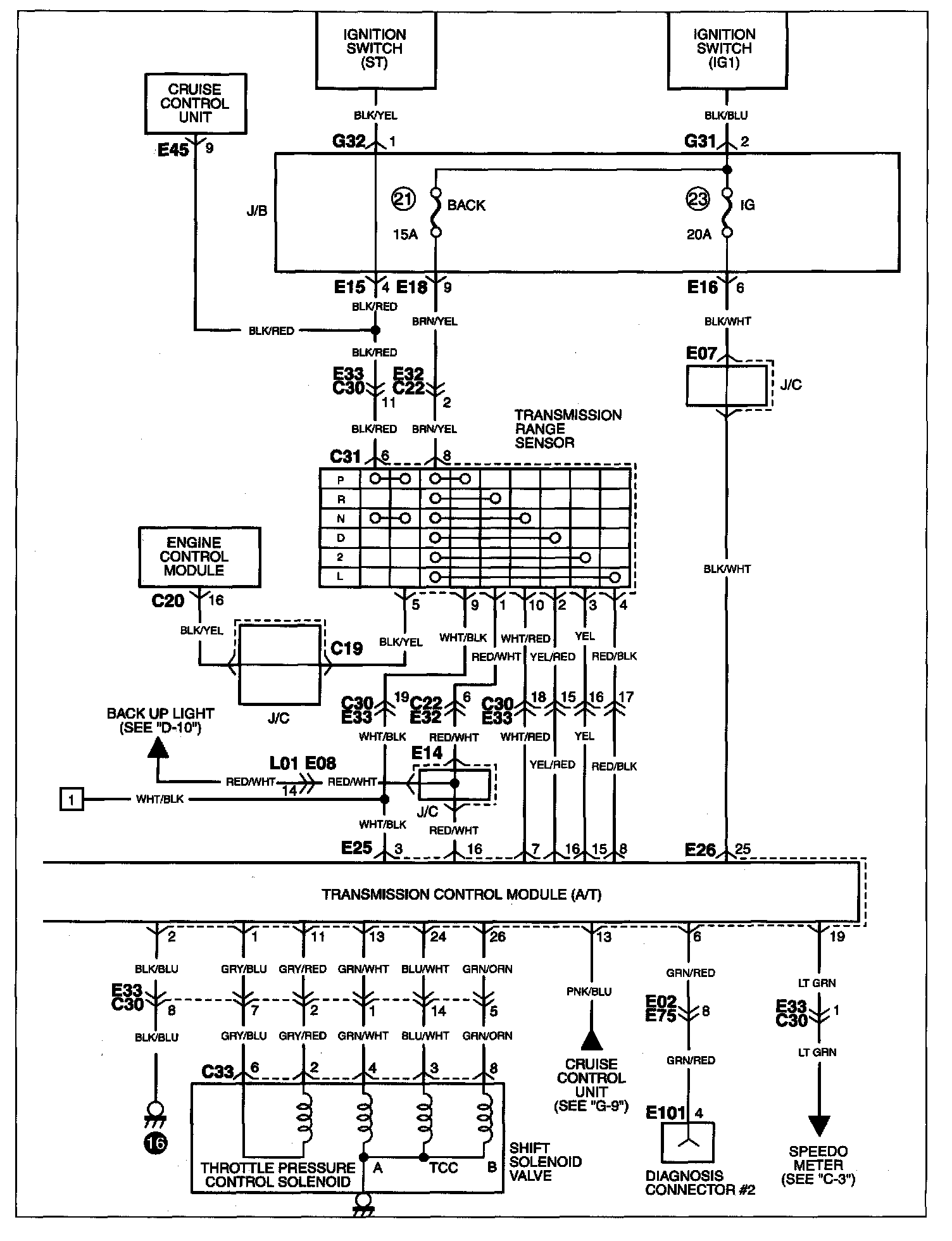

A-7 A/T Control System <Vehicle With Cruise Control System> Part 1:

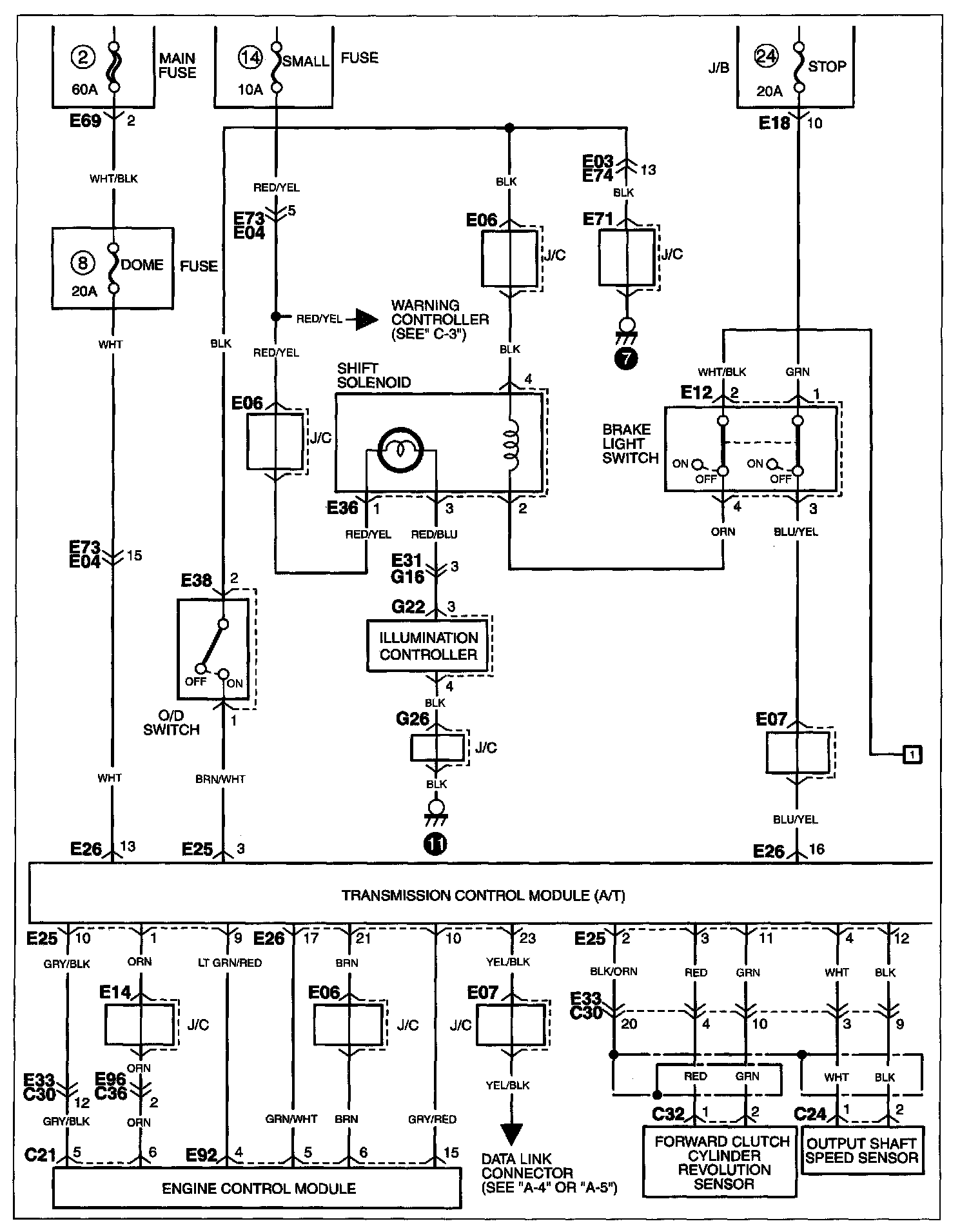

A-7 A/T Control System <Vehicle With Cruise Control System> Part 2:

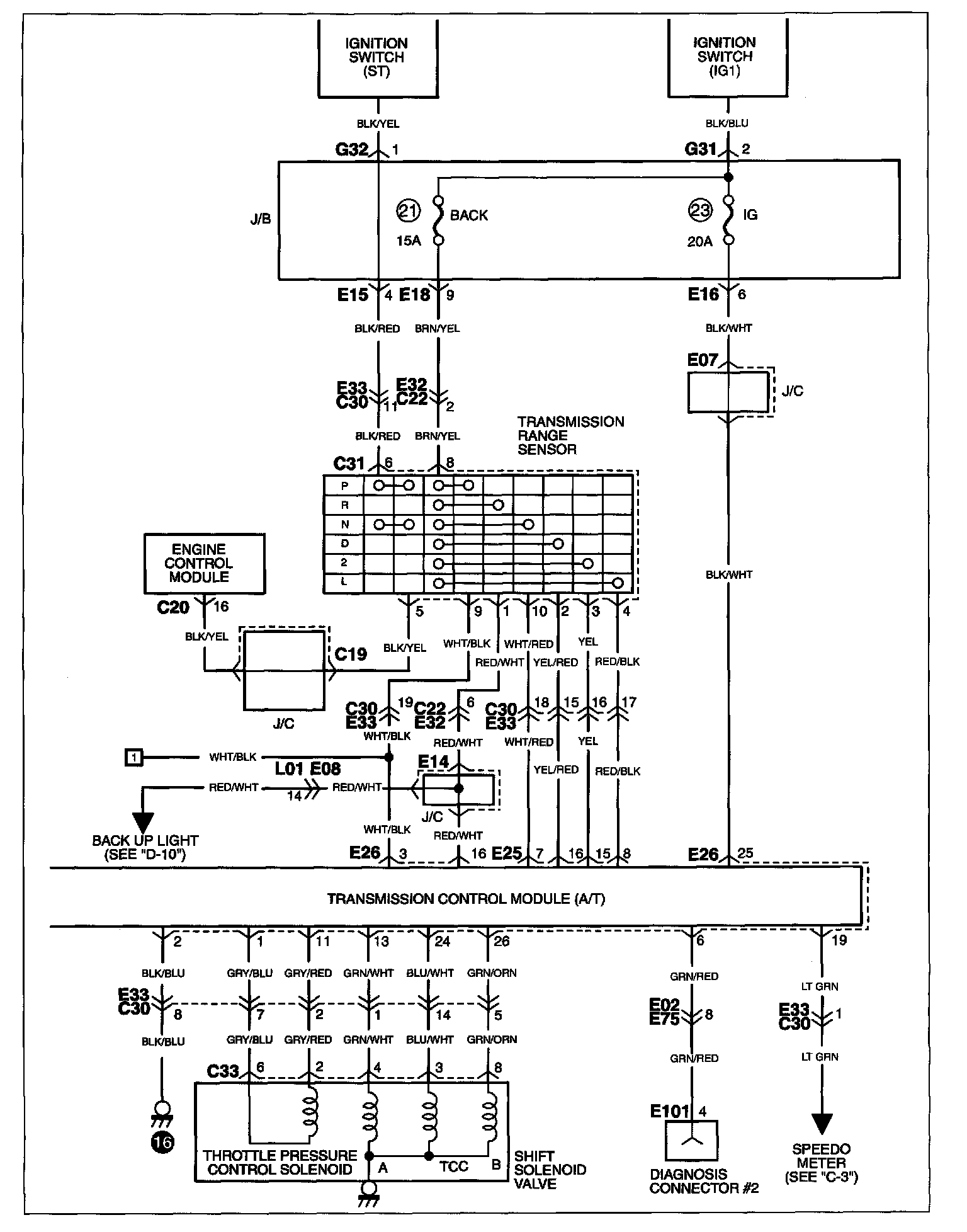

A-8 A/T Control System <Vehicle Without Cruise Control System> Part 1:

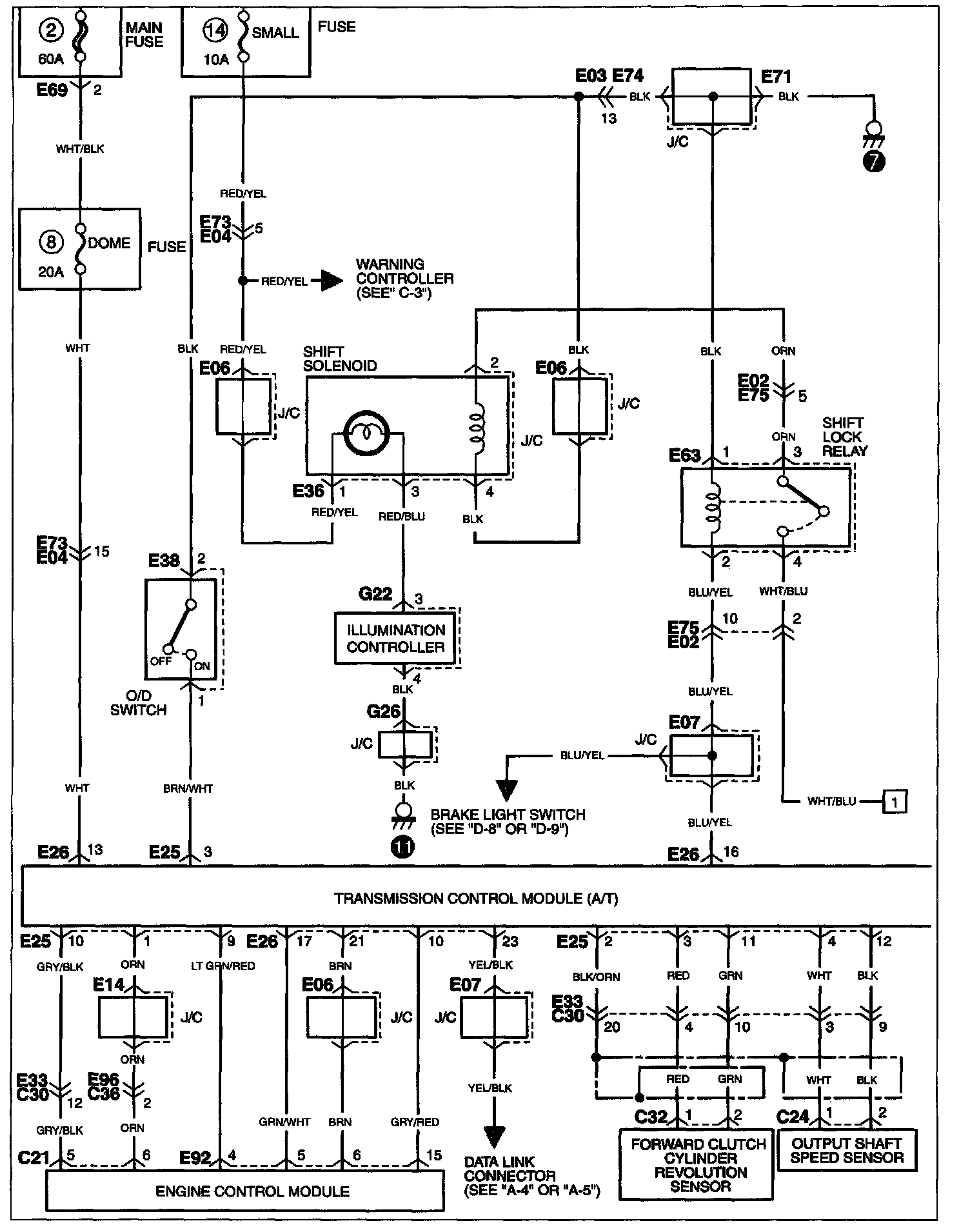

A-8 A/T Control System <Vehicle Without Cruise Control System> Part 2:

NOTE: To view other electrical diagrams referred to in these schematics, see System Circuit Diagrams by letter (A Thru Z) Electrical Diagrams
