P0461

DTC P0461 FUEL LEVEL SENSOR (GAUGE) CIRCUIT PERFORMANCE PROBLEM





WIRING DIAGRAM

CIRCUIT DESCRIPTION
Refer to fuel level signal.
Fuel Level Signal





DETECTING CONDITION

DTC CONFIRMATION PROCEDURE
System circuit confirmation inspection is included in DTC P0461 Diag. Flow Table.

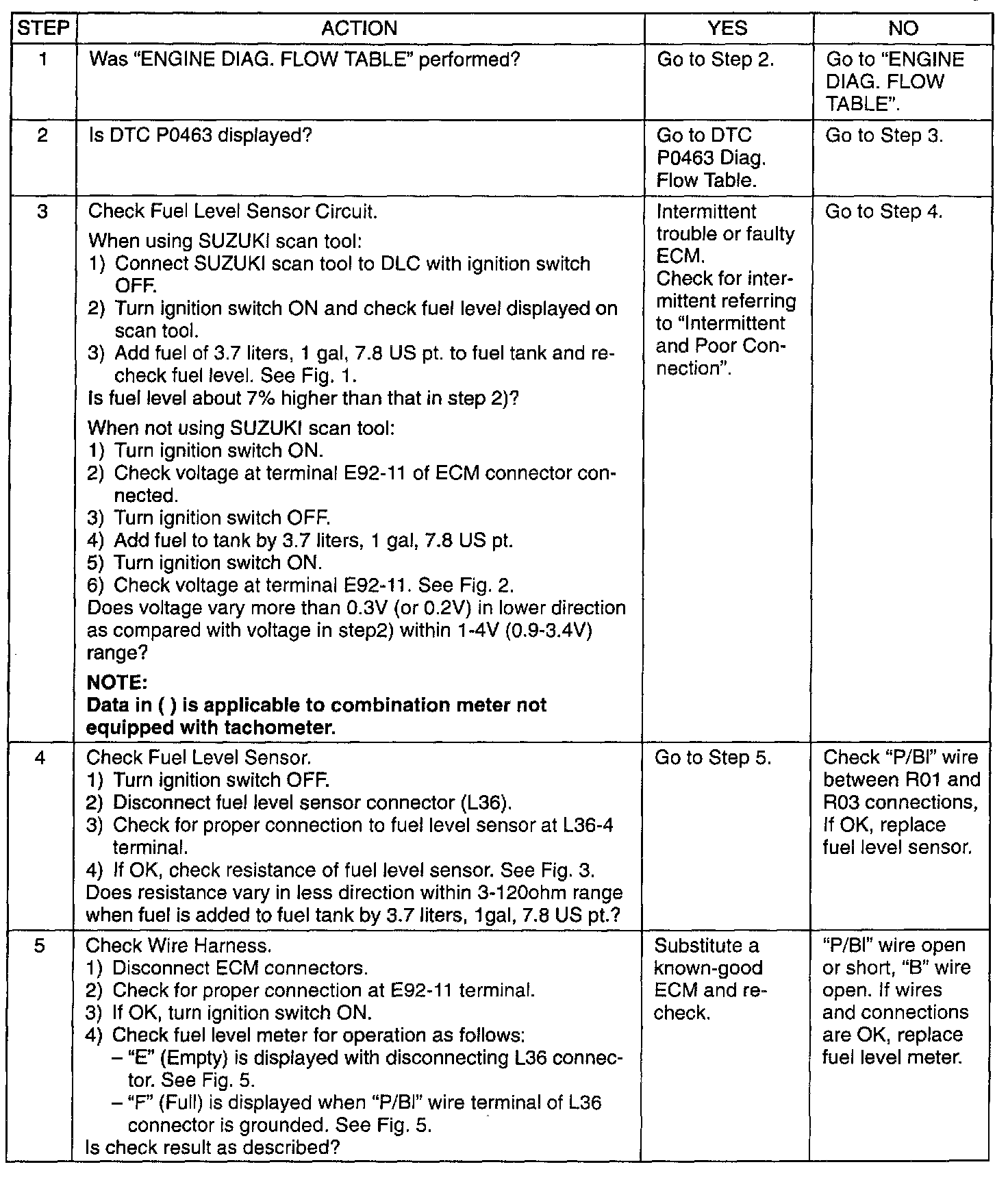

INSPECTION
