Air Duct: Service and Repair

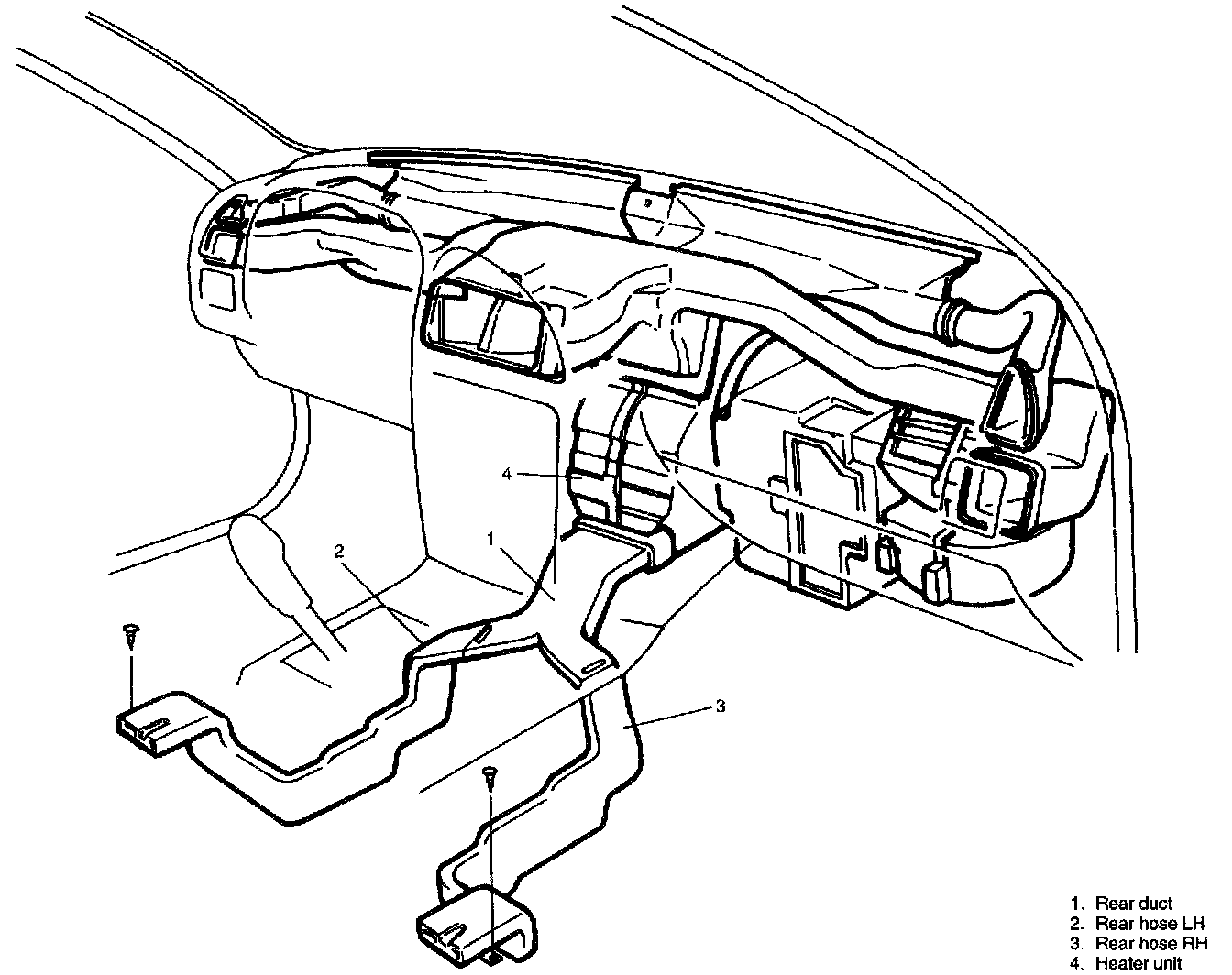

REAR DUCT

DESCRIPTION
Through the rear duct, air is drawn into the rear seat toot space.

REMOVAL
1) Remove front seat.
2) Remove console front box, console rear box and console front extension.
3) Take off carpet till rear duct is totally exposed.

INSTALLATION
Reverse removal sequence to install rear duct.
