Power Rack & Pinion

NOTE: Manufacturer does not recommend power steering rack overhaul. If power rack and pinion is damaged or is malfunctioning, replace as an assembly. Use illistration for exploded view of rack and pinion assembly. See Fig 1 .

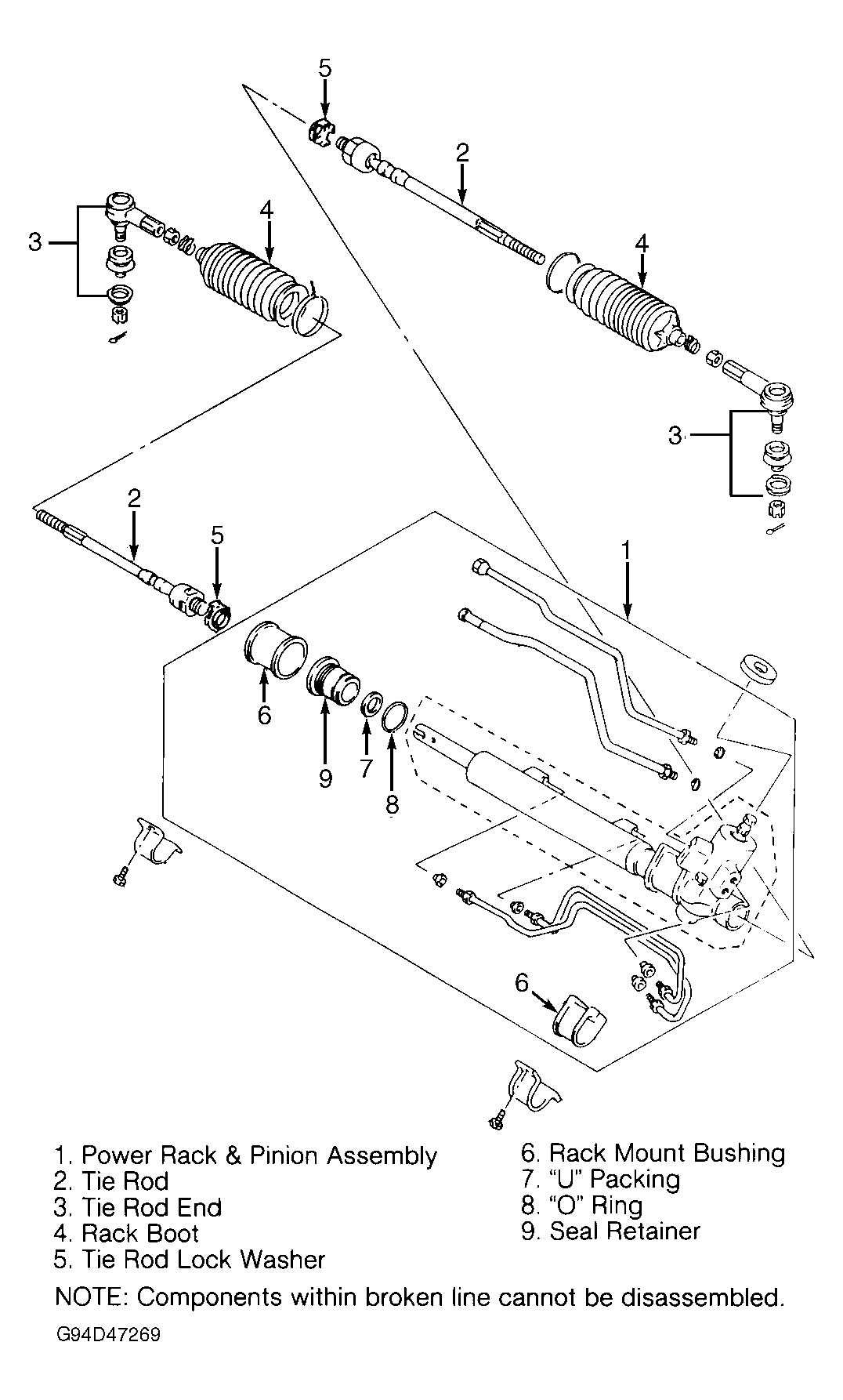

Fig 1: Exploded View Of Power Rack & Pinion (Swift Shown, Esteem Is Similar)
G94D47269Courtesy of SUZUKI OF AMERICA CORP.
