Chart A: SDM System Integrity Check
WARNING:
To avoid air bag deployment and injury when trouble shooting system, only use test equipment specified in diagnostic charts. Under no circumstances should battery powered test equipment or test light be used. Carefully follow all instructions.
NOTE:

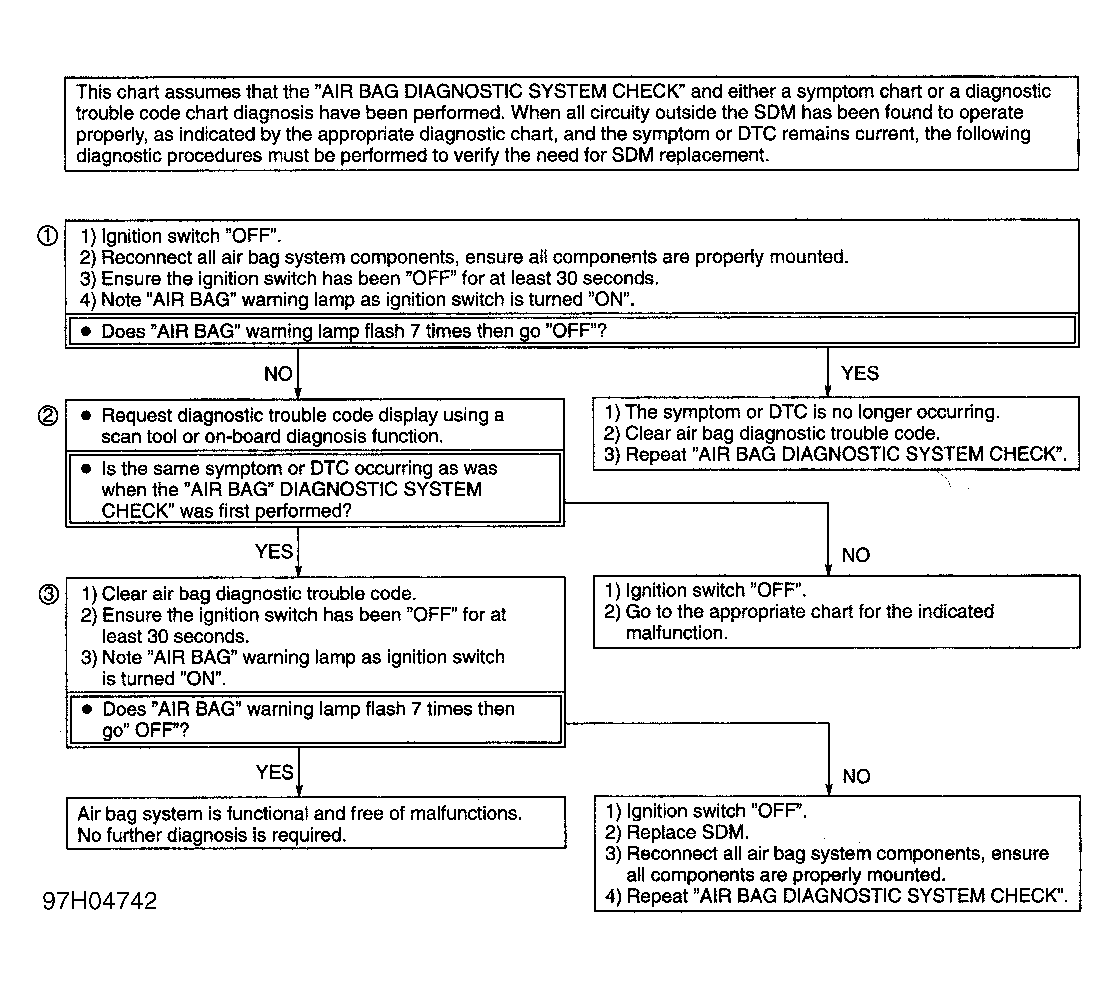

Following step references refer to test step numbers on diagnostic chart. See Fig 1
. For circuit number and wire color identification, see WIRING DIAGRAMS
.
- This test confirms a current malfunction. If no current malfunction is occurring (History DTC set), refer to diagnostic aids for appropriate DTC. Do not replace SDM for History DTC.
- This test checks for a malfunction introduced into SIR during diagnostic process.
- When all circuits outside SDM operate properly, only then should SDM be replaced.
