Leak Detection Solenoid: Testing and Inspection

DTC P0440/DTC P0455 PART 6:

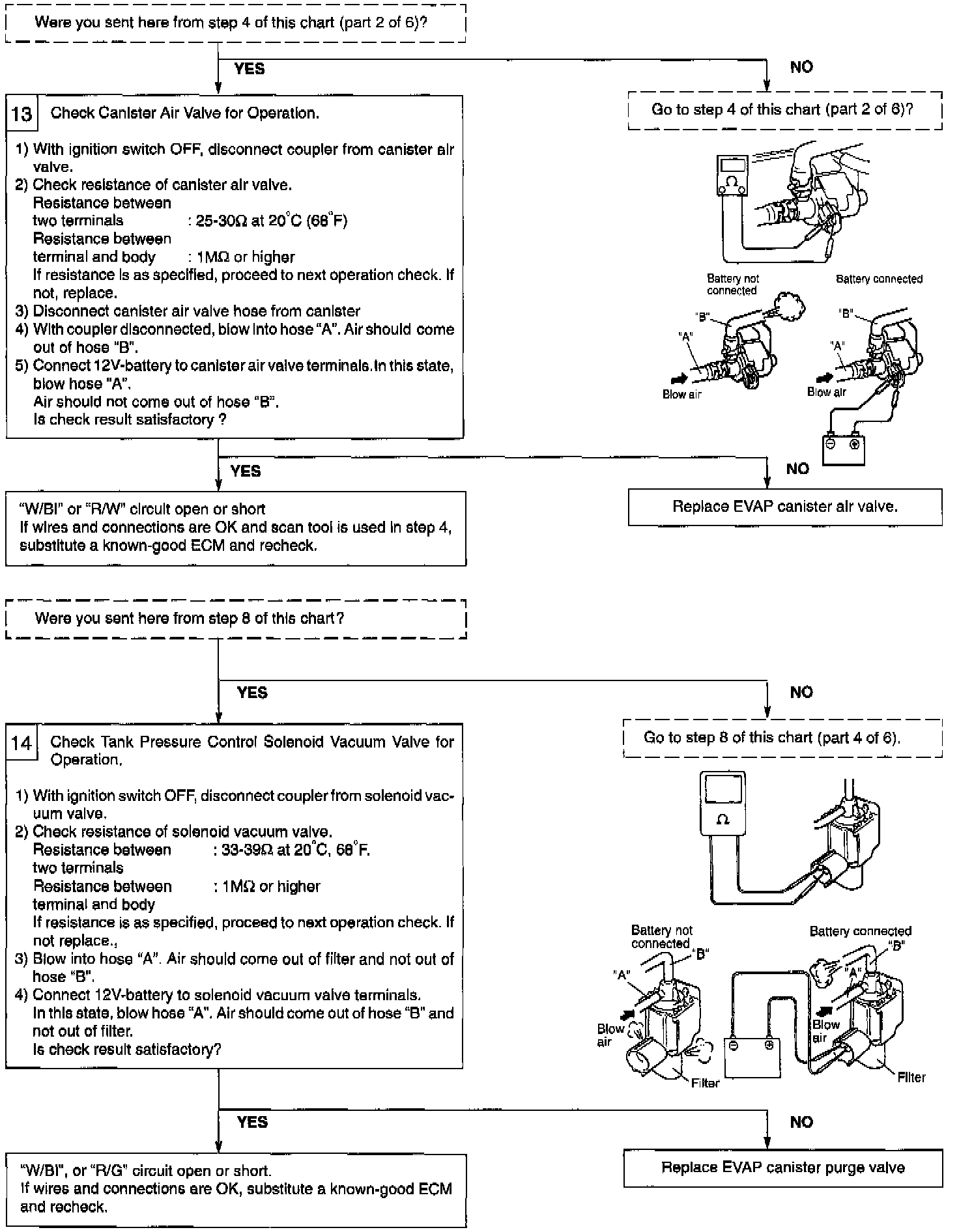

Check tank pressure control solenoid vacuum valve referring to step 14 of DTC P0440/P0455 Flow Chart, shown above.
If found malfunction, replace.
