General

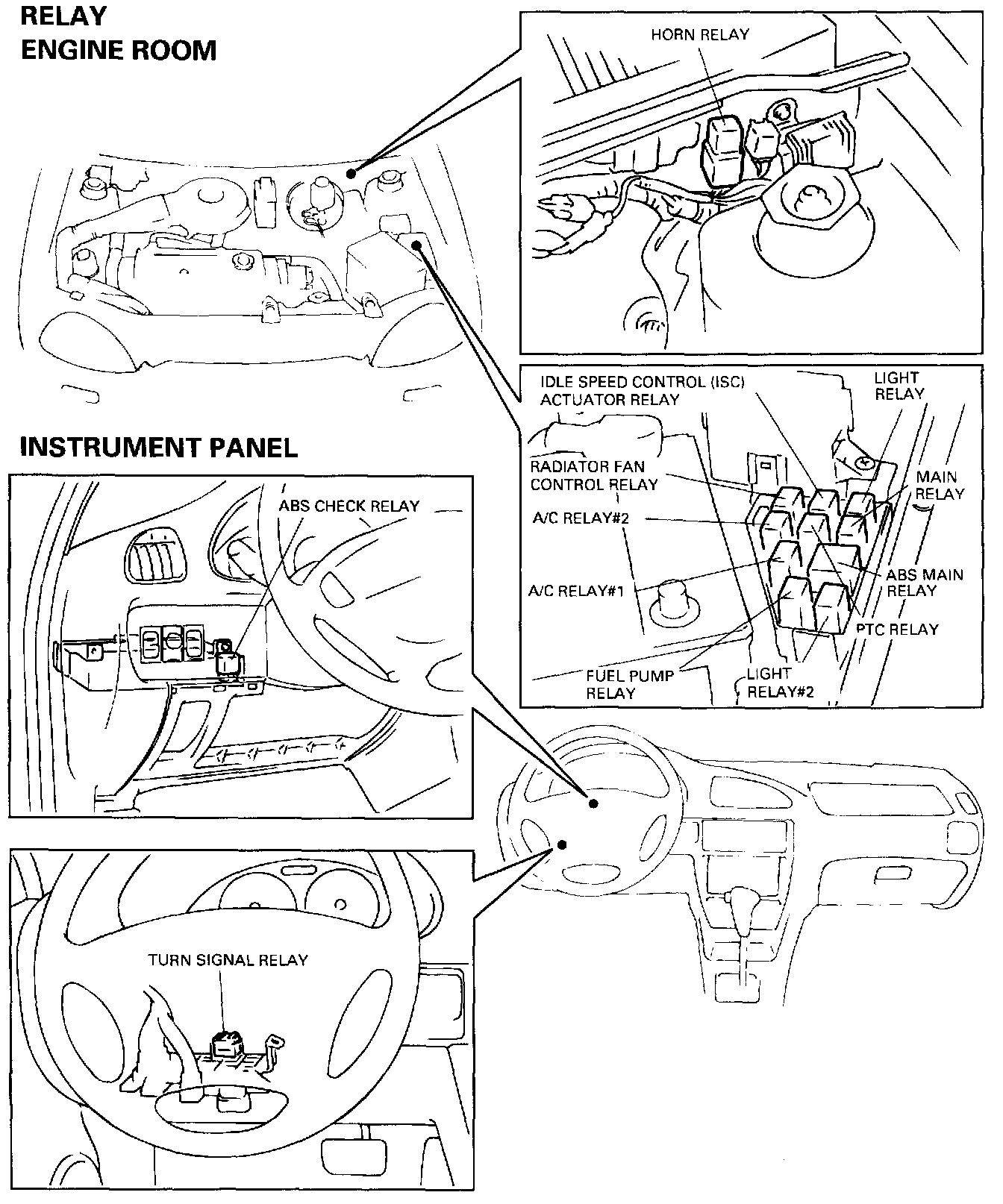

The diagram shows installation positions of fuse, relays and control units used in this vehicle. They are illustrated as shown in the diagram.
