Electronic Fuel Injection System

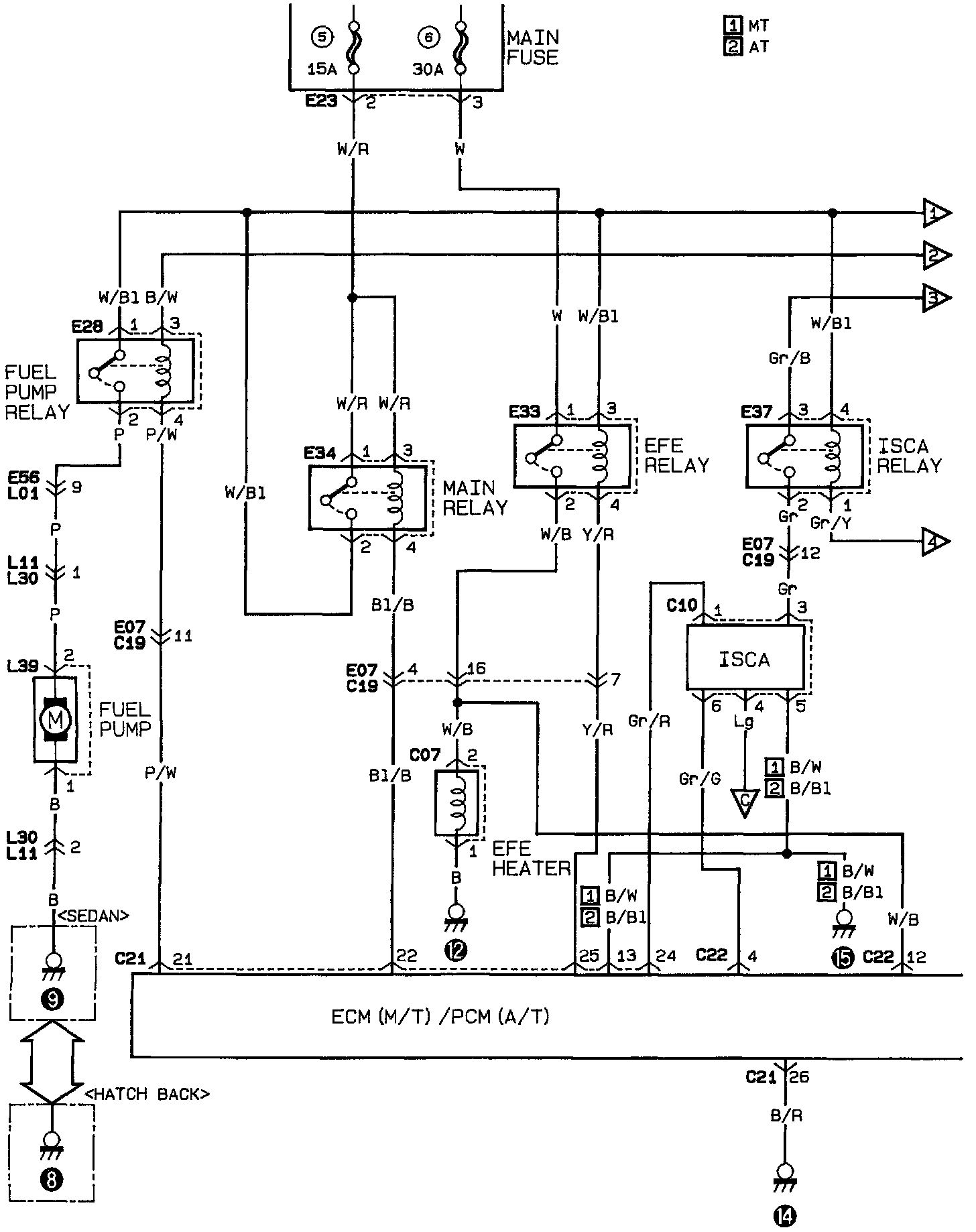

Electronic Fuel Injection System (Part 1 Of 6):

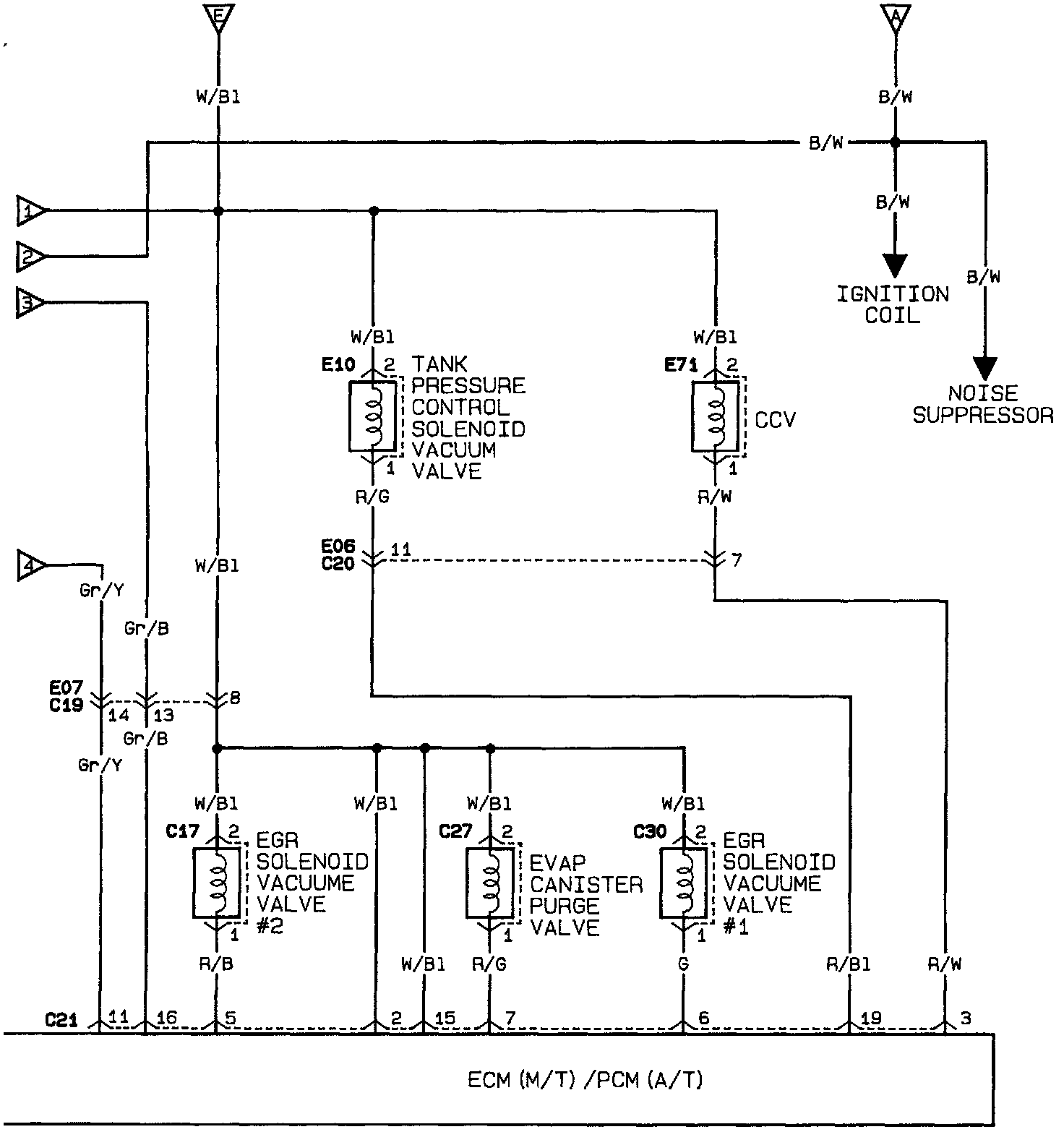

Electronic Fuel Injection System (Part 2 Of 6):

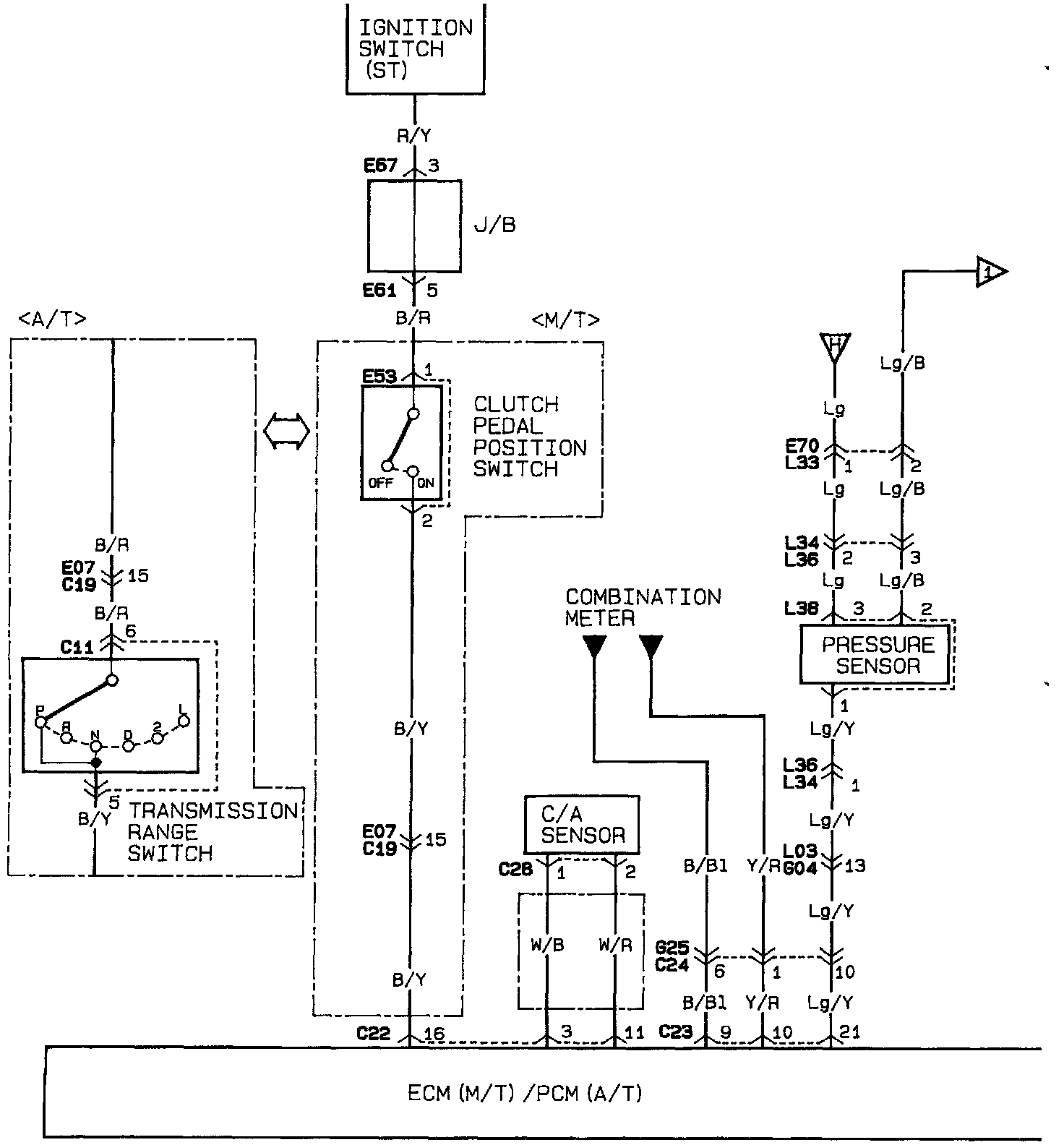

Electronic Fuel Injection System (Part 3 Of 6):

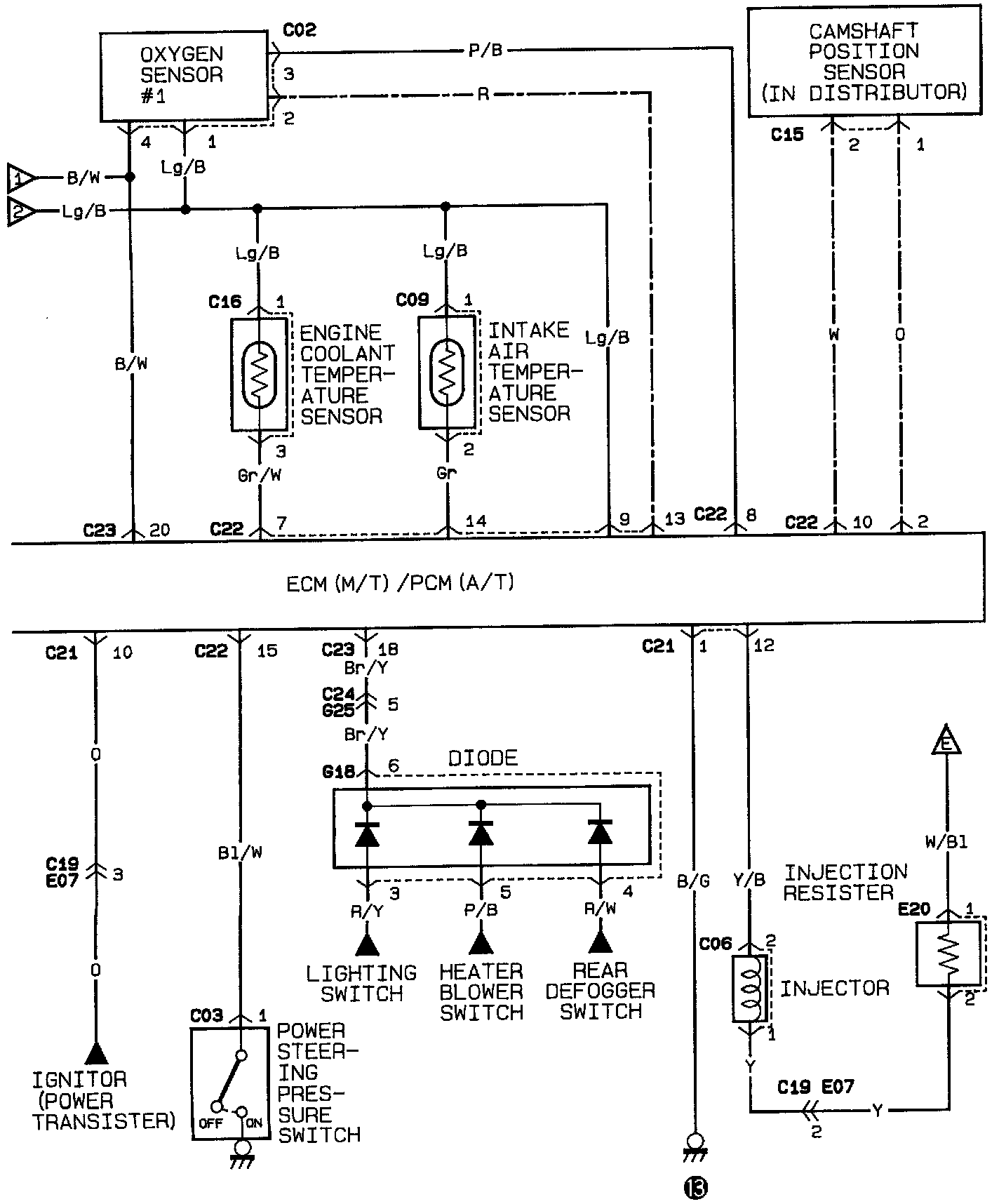

Electronic Fuel Injection System (Part 4 Of 6):

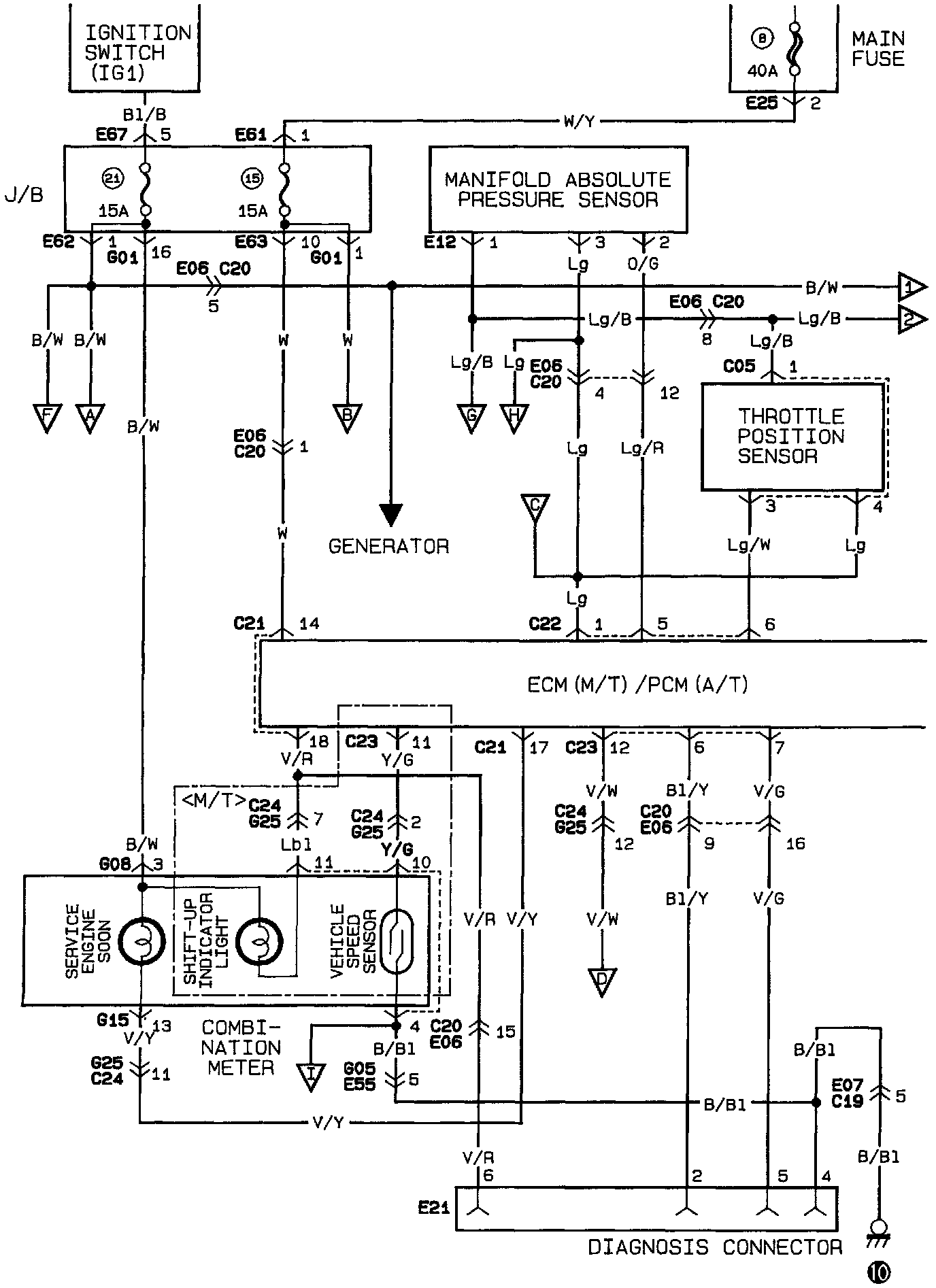

Electronic Fuel Injection System (Part 5 Of 6):

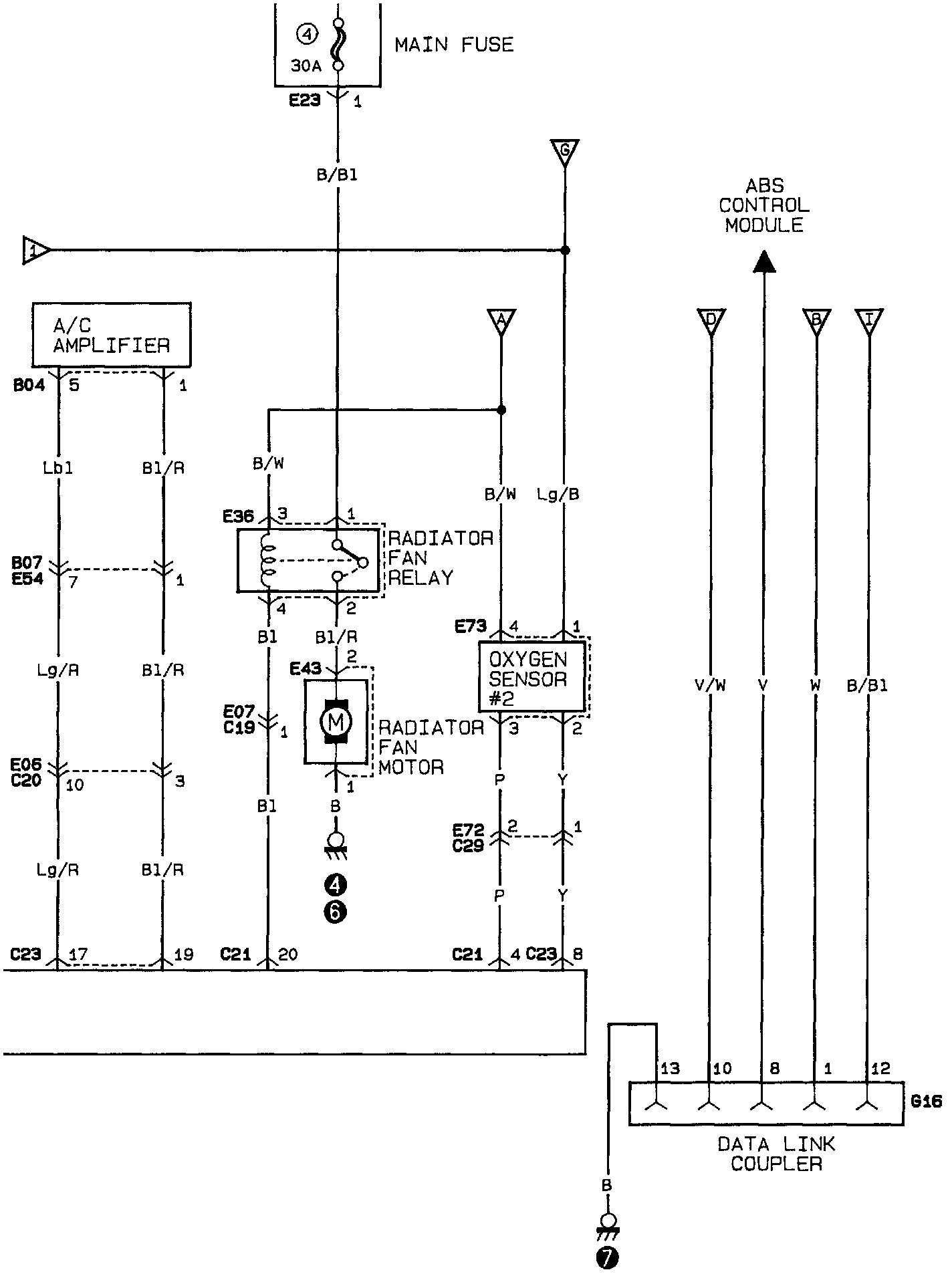

Electronic Fuel Injection System (Part 6 Of 6):
