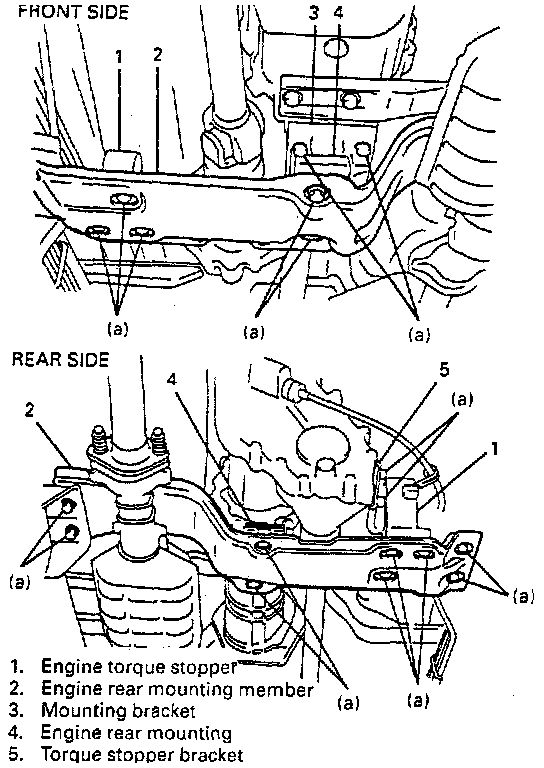

Engine Rear Mounting

1. When replacement of mounting parts are necessary, torque bolts and nut to (a) 50 Nm (36.5 ft. lbs.).

NOTE: Install torque stopper loosely first, remove any tension, twist motion and rubber to rubber contact, and then tighten it.





- If aluminum torque stopper housing is used and replacement is necessary, follow step 2 and 3.
2. For replacing torque stopper bush, use Special Tools (A) 09918-96010, (B) 09919-06010 and hydraulic press. Machined surface of housing should be supported by support base.





3. Align bush slits to level as illustrated when press-fitting.
