System Diagram

WIRE HARNESS AND CONNECTORS

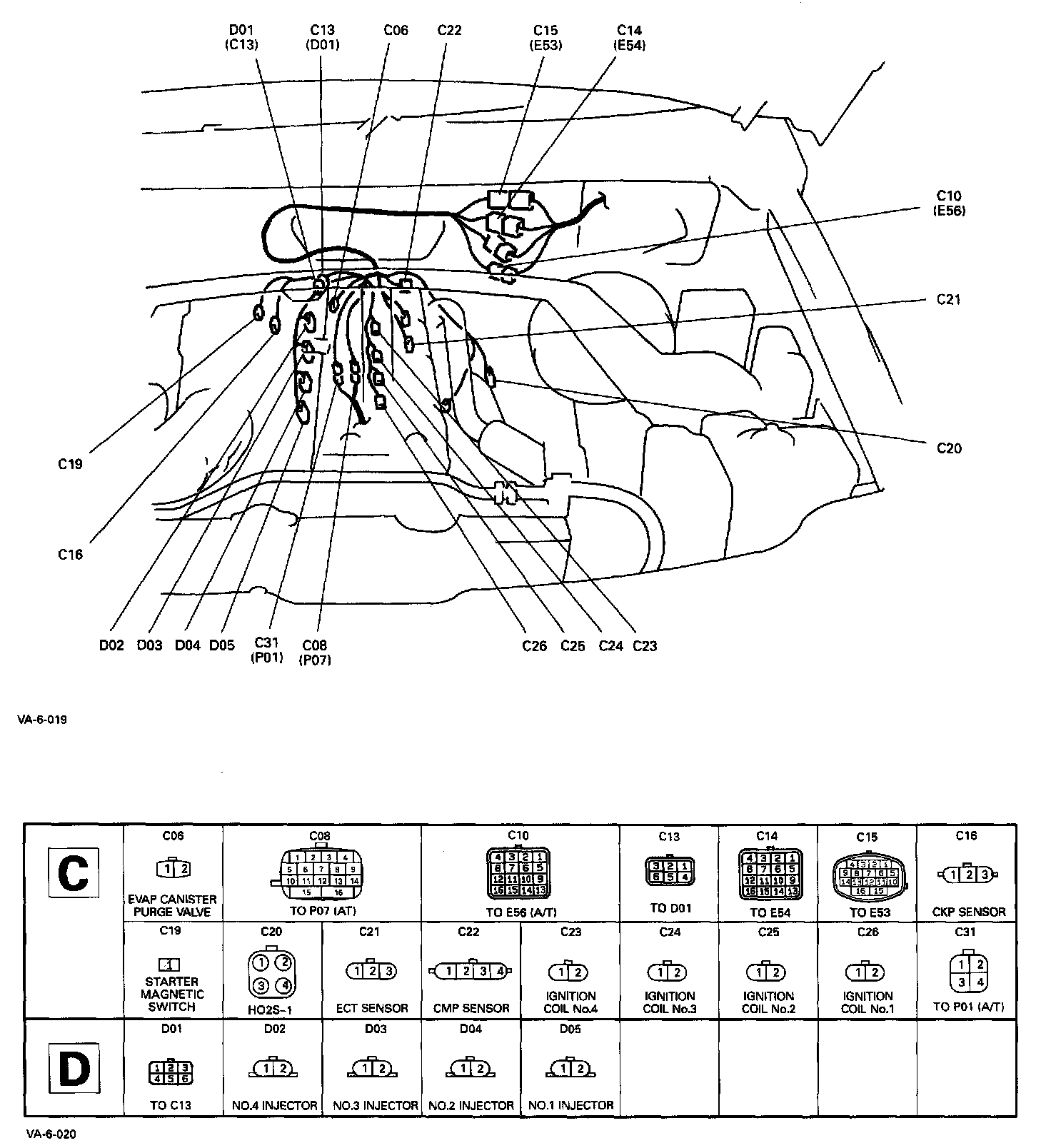

ENGINE ROOM C & D

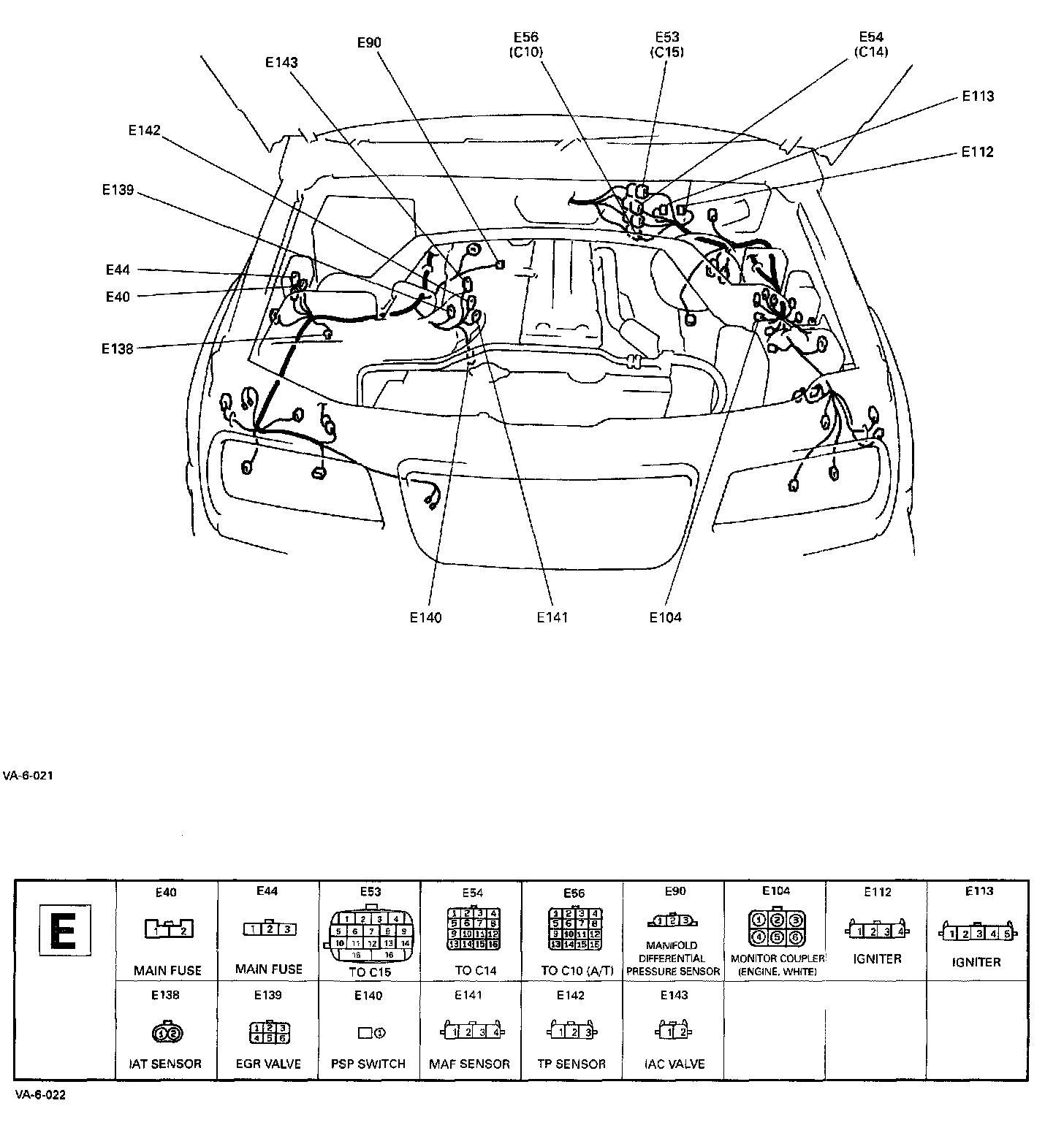

ENGINE ROOM E

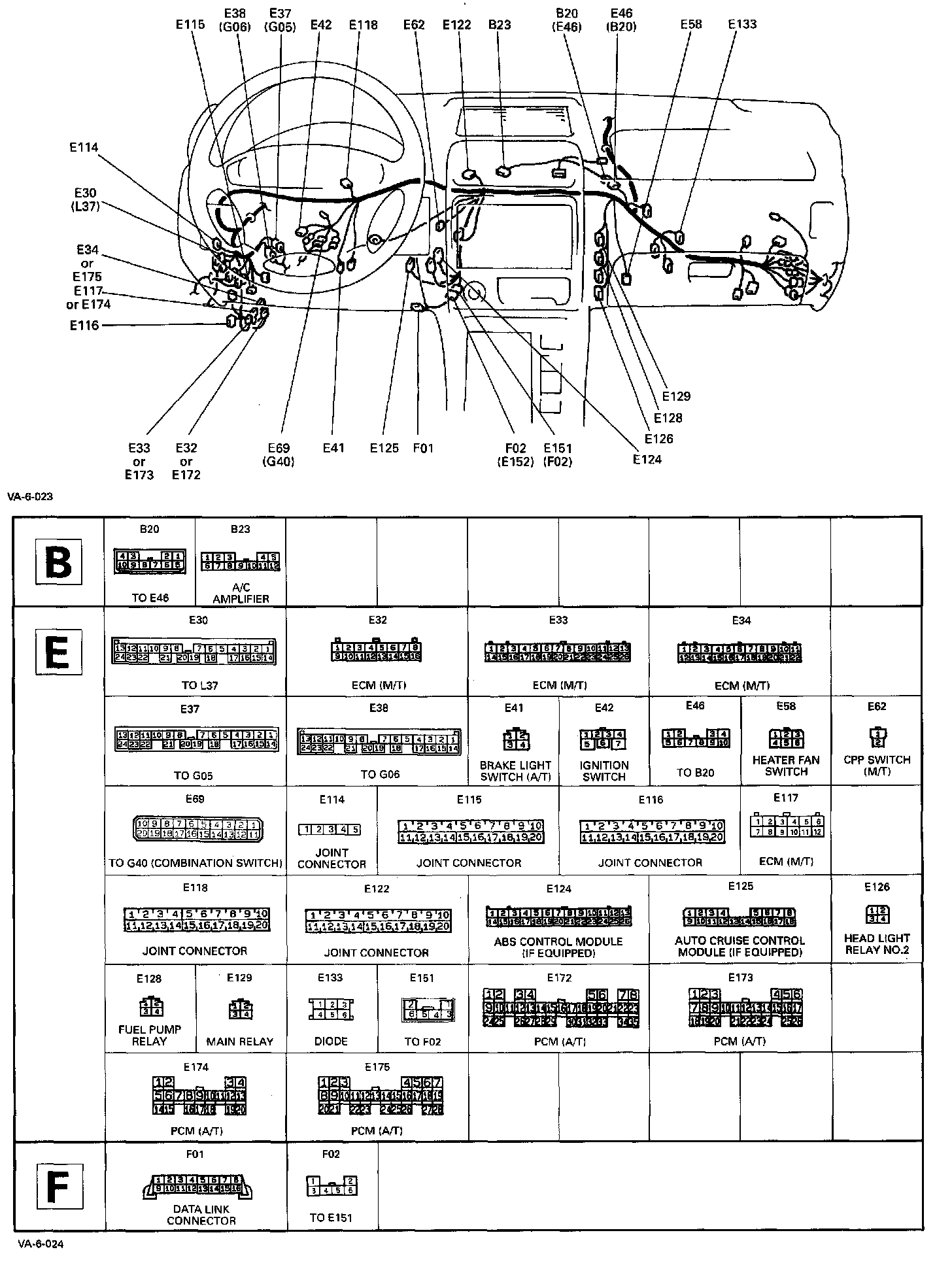

INSTRUMENT PANEL B, E & F

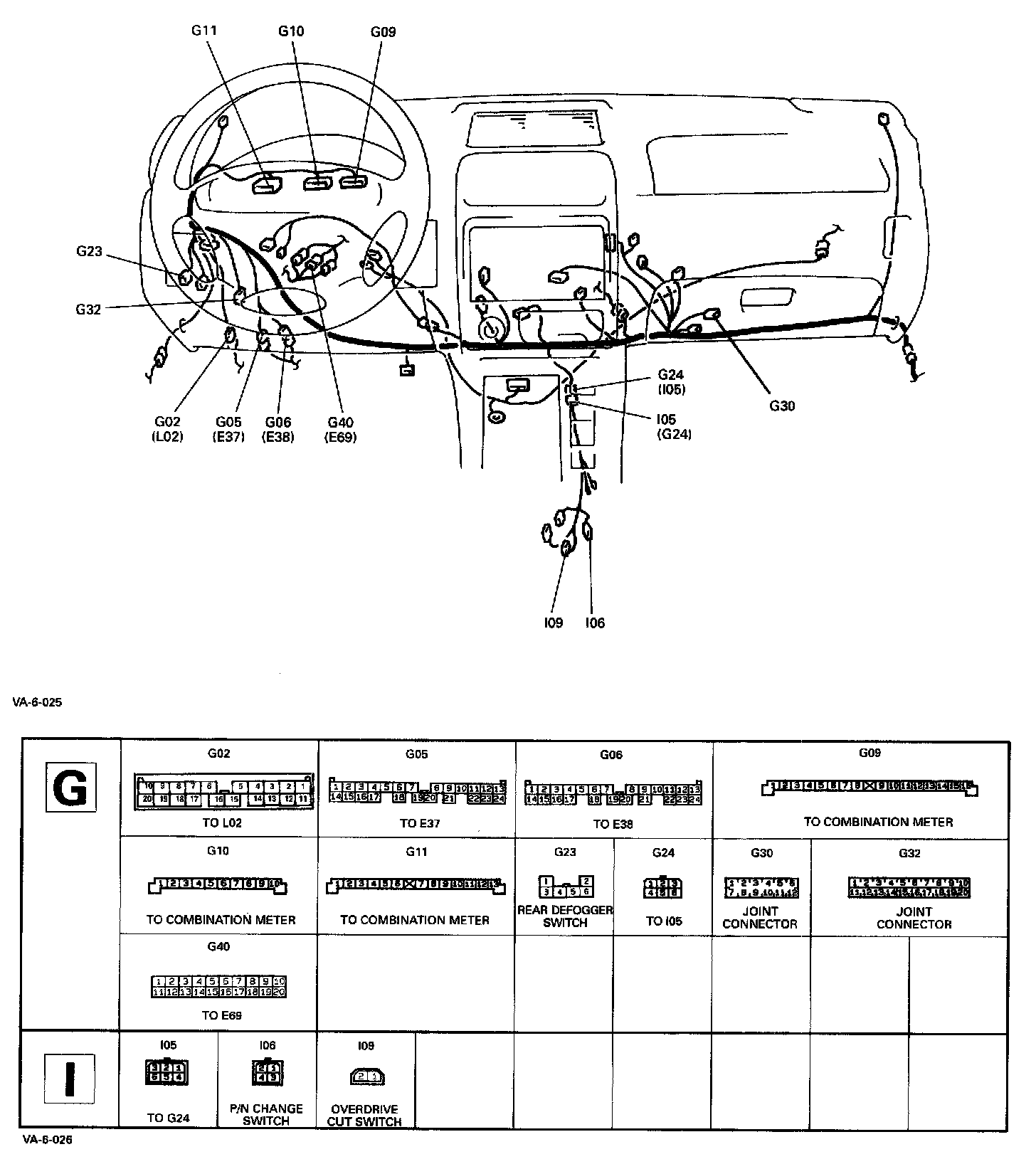

INSTRUMENT PANEL G, H & E

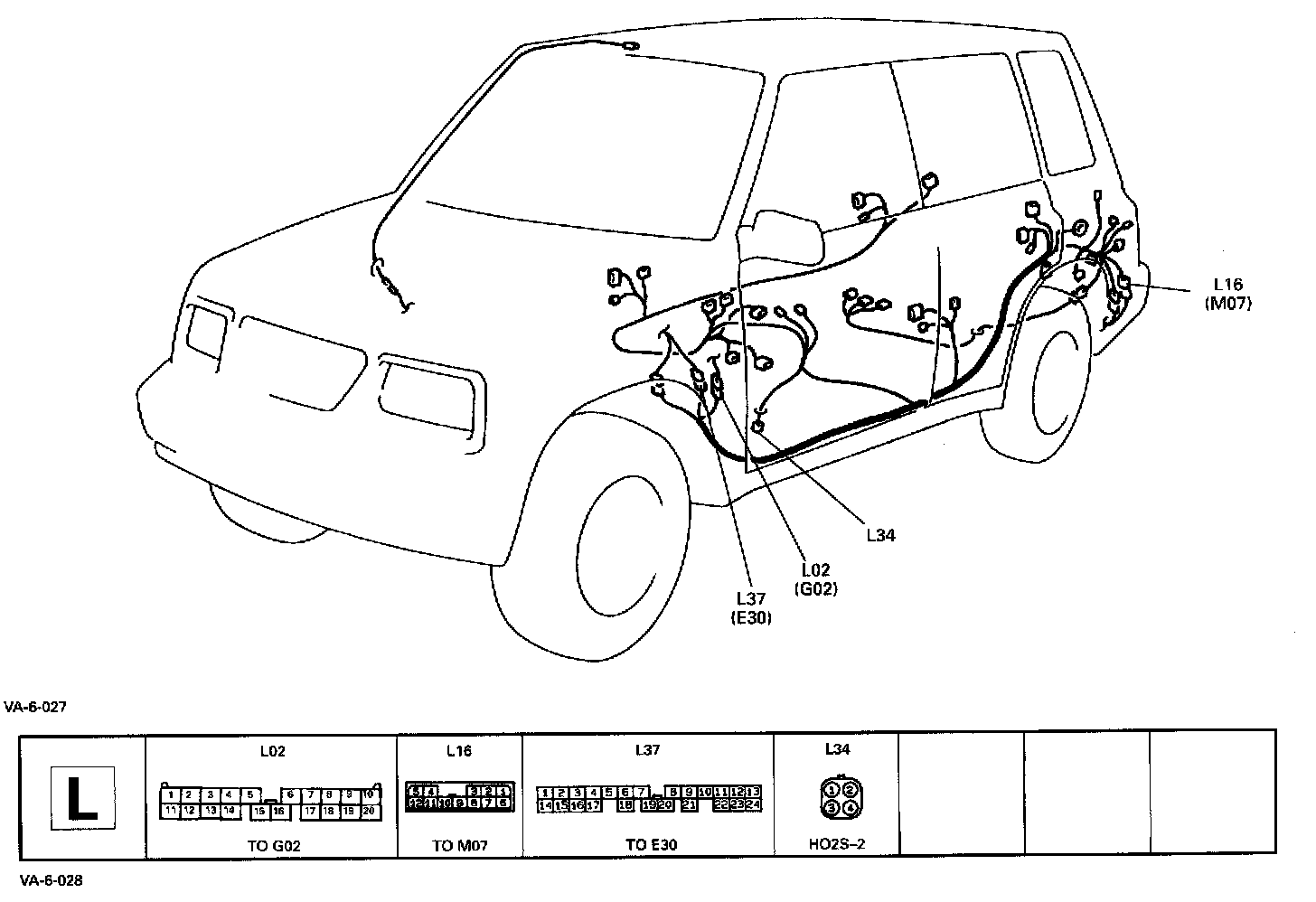

FLOOR, REAR L, S & K

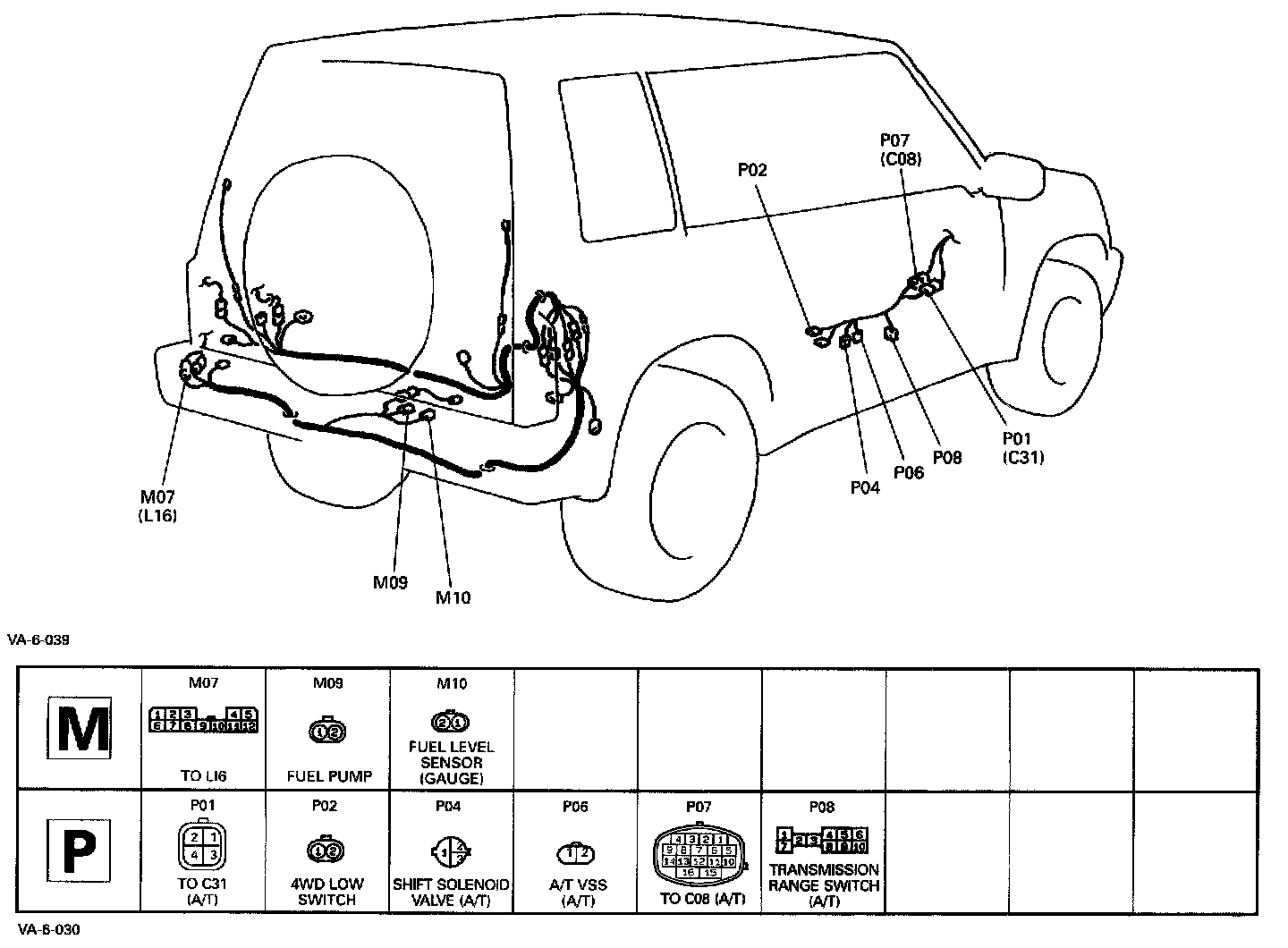

TRANSMISSION, BACK DOOR, REAR M, O & P
