UNDERHOOD Fuse Panel Identification: Notes

WARNING: Always disconnect battery ground cable before servicing "high-current fuses. It is recommended that "high-current" fuses be replaced by a qualified technician.

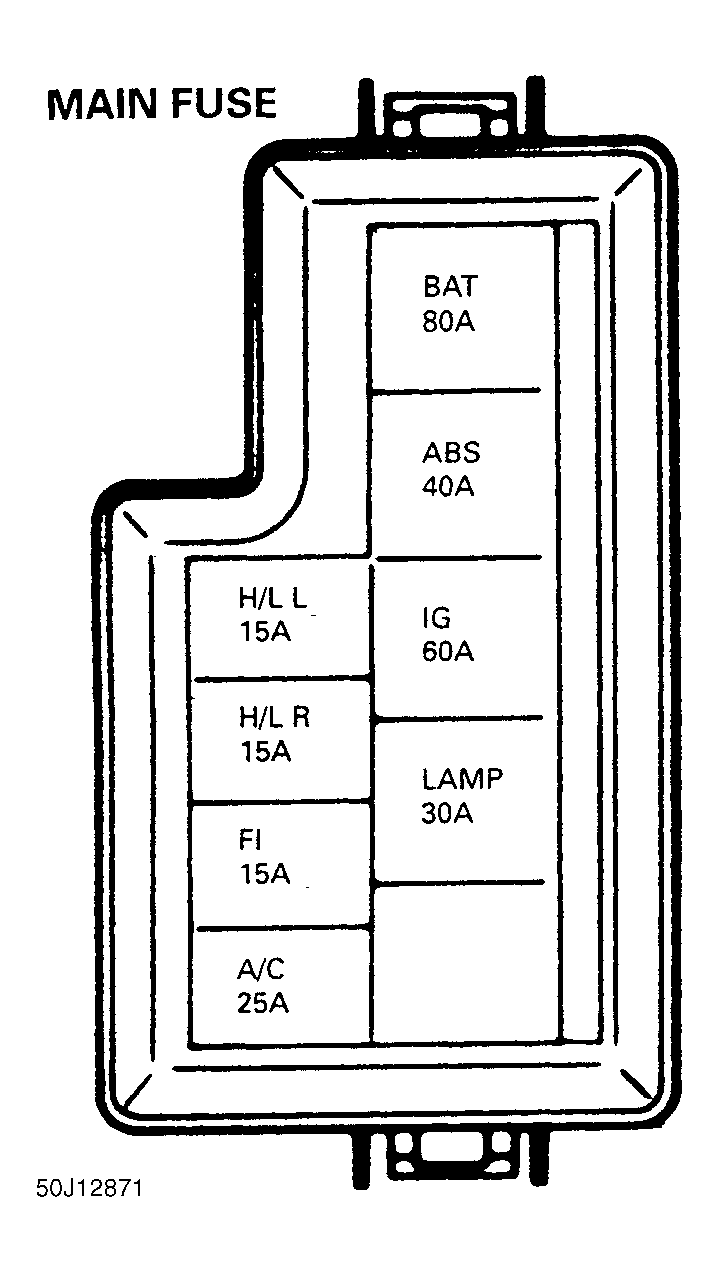

Fig 1: Underhood Fuse Panel
G50J12871Courtesy of SUZUKI MOTORS CORP.
