With 4-Speed A/T

  1. Apply parking brake. Disconnect harness connector at shift switch, located on side of transmission. SeeFigure .
  2. Note terminal identification on shift switch. SeeFig 1 . Using ohmmeter, check for continuity between specified terminals with shift lever in specified positions. See SHIFT SWITCH SPECIFICATIONS  . If continuity does not exist, adjust or replace shift switch as necessary.
SHIFT SWITCH SPECIFICATIONS

Shift Lever Position Continuity Between Terminals No.
With 4-Speed A/T
Park 2 & 3; 6 & 7
Reverse 6 & 8
Neutral 2 & 3; 6 & 10
Drive 6 & 9
2 4 & 6
Low 5 & 6

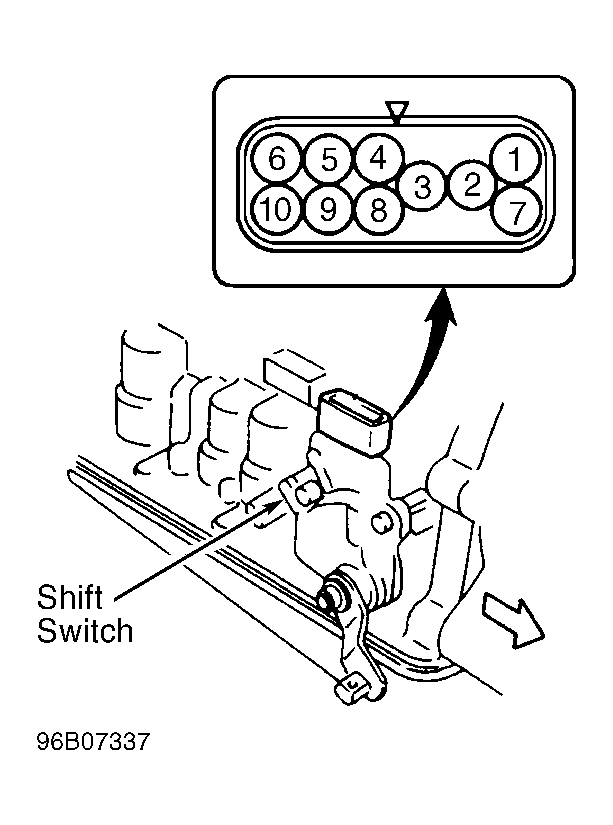

Fig 1: Identifying Shift Switch Terminals (With 4-Speed A/T)
G96B07337Courtesy of SUZUKI OF AMERICA CORP.
