FUEL INJECTION WIRING DIAGRAM - MANUAL UPDATE

TECHNICAL SERVICE BULLETIN

Reference Number(s): TS 2-13 11016, Date of Issue: November 1, 1996

CORRECTION TO WIRING DIAGRAM MANUAL (P/N 99512-60A60-33E), ELECTRONIC FUEL INJECTION SYSTEM EXCEPT FOR 1.8L, 4A/T CONTROL SYSTEM 1.6L

Model(s): 1997 Suzuki Sidekick, Sport, X-90

Section: Body Electrical

Bulletin No.: TS 2-13 11016

Date: November 1, 1996

CONDITION

Change in wiring diagrams.

CAUSE

N/A.

CORRECTION

Please make the corrections as listed in this bulletin.

SERVICE INFORMATION

This bulletin is to inform you of the corrections on page 8A-7-11 and page 8A-7-23 in the 1997 Suzuki Wiring Diagram Manual, (P/N 99512-60A60-33E). See Fig 1 and Fig 2 . Please make the needed corrections as listed in this bulletin.

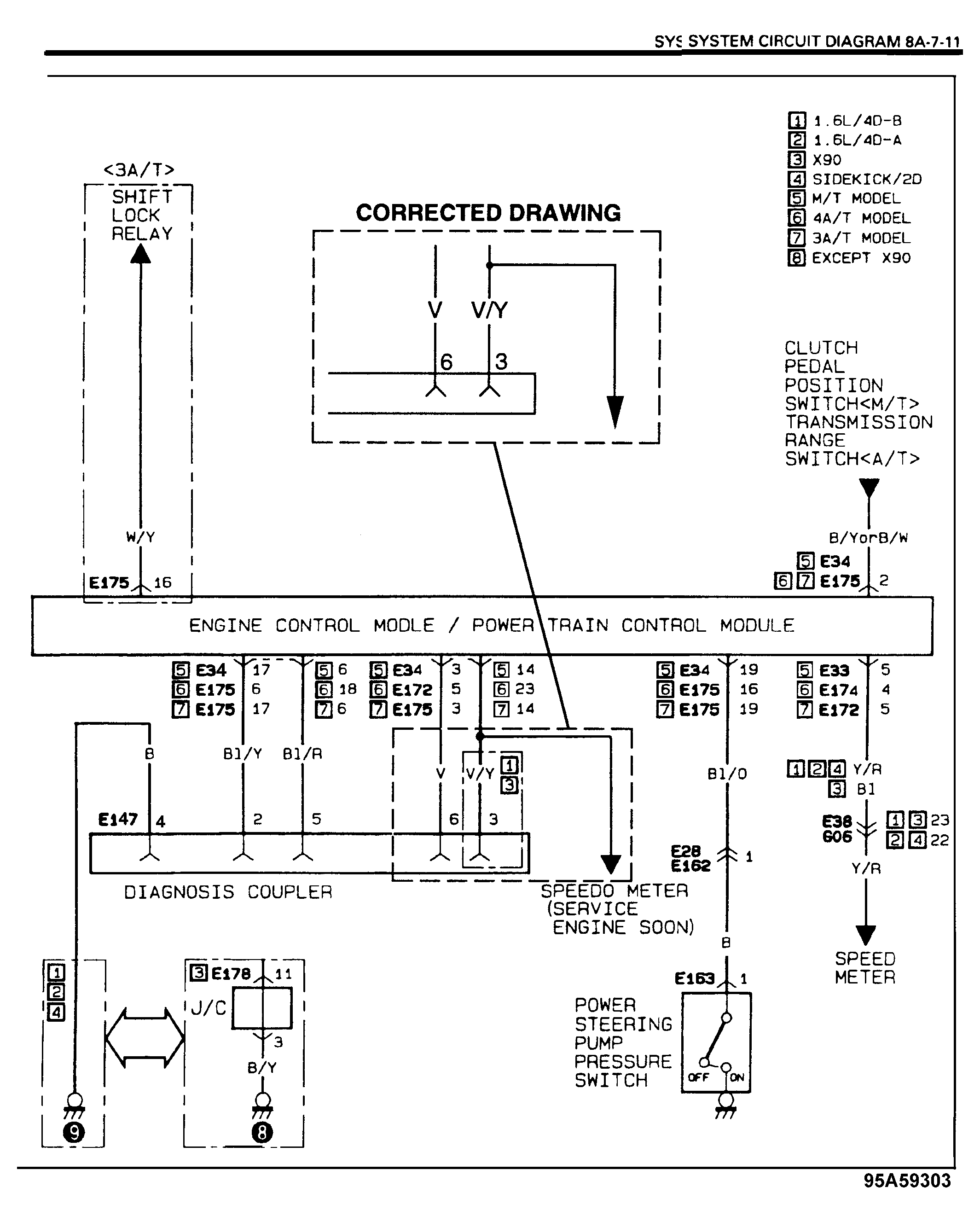

Fig 1: 1997 Suzuki Wiring Diagram Manual Update, Page 8A-7-11

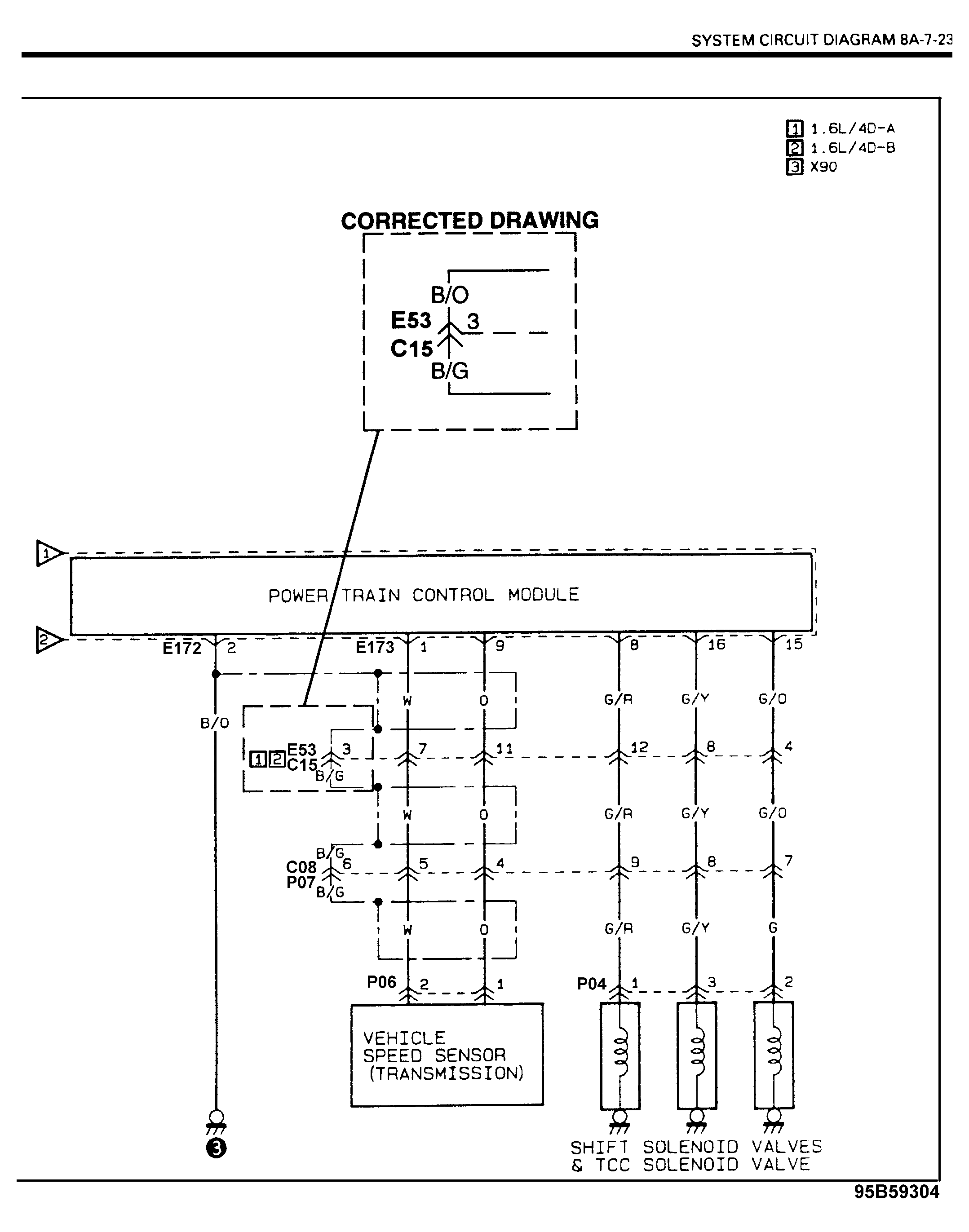

Fig 2: 1997 Suzuki Wiring Diagram Manual Update, Page 8A-7-23
