Wiring Diagram - Manual Correction
TSB No. TS 2-13 11016Section Title: Body Electrical
Division: Automotive
Category: Technical
SUBJECT:
CORRECTION TO WIRING DIAGRAM MANUAL (P/N 99512-60A60-33E)
^ ELECTRONIC FUEL INJECTION SYSTEM
^ 4A/T CONTROL SYSTEM <1.6L>
MODEL:
SIDEKICK, SPORT, AND X-90
YEAR:
1997
CONDITION:
Change in wiring diagrams.
CAUSE:
n/a
CORRECTION:
Please make the corrections as listed in this bulletin.

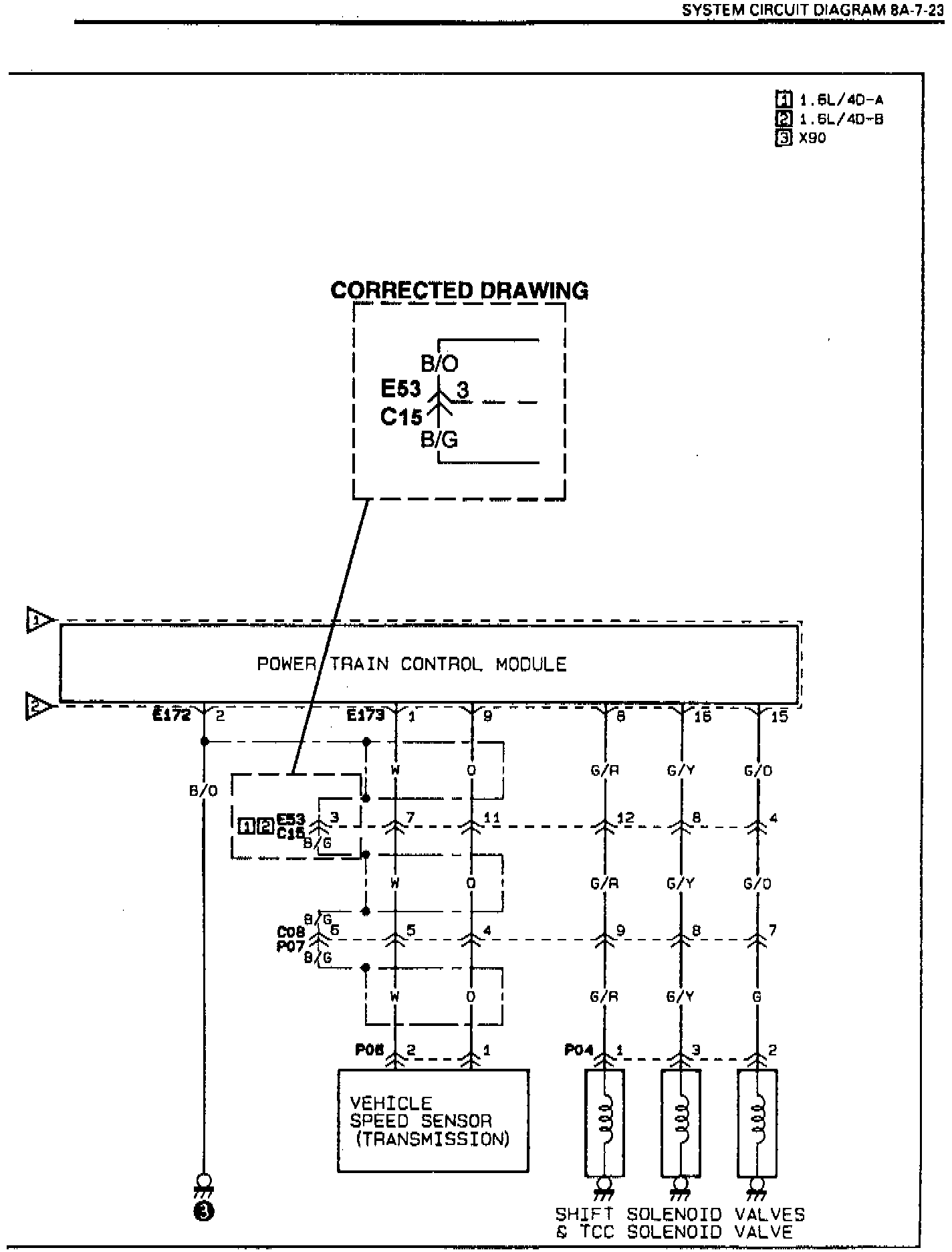

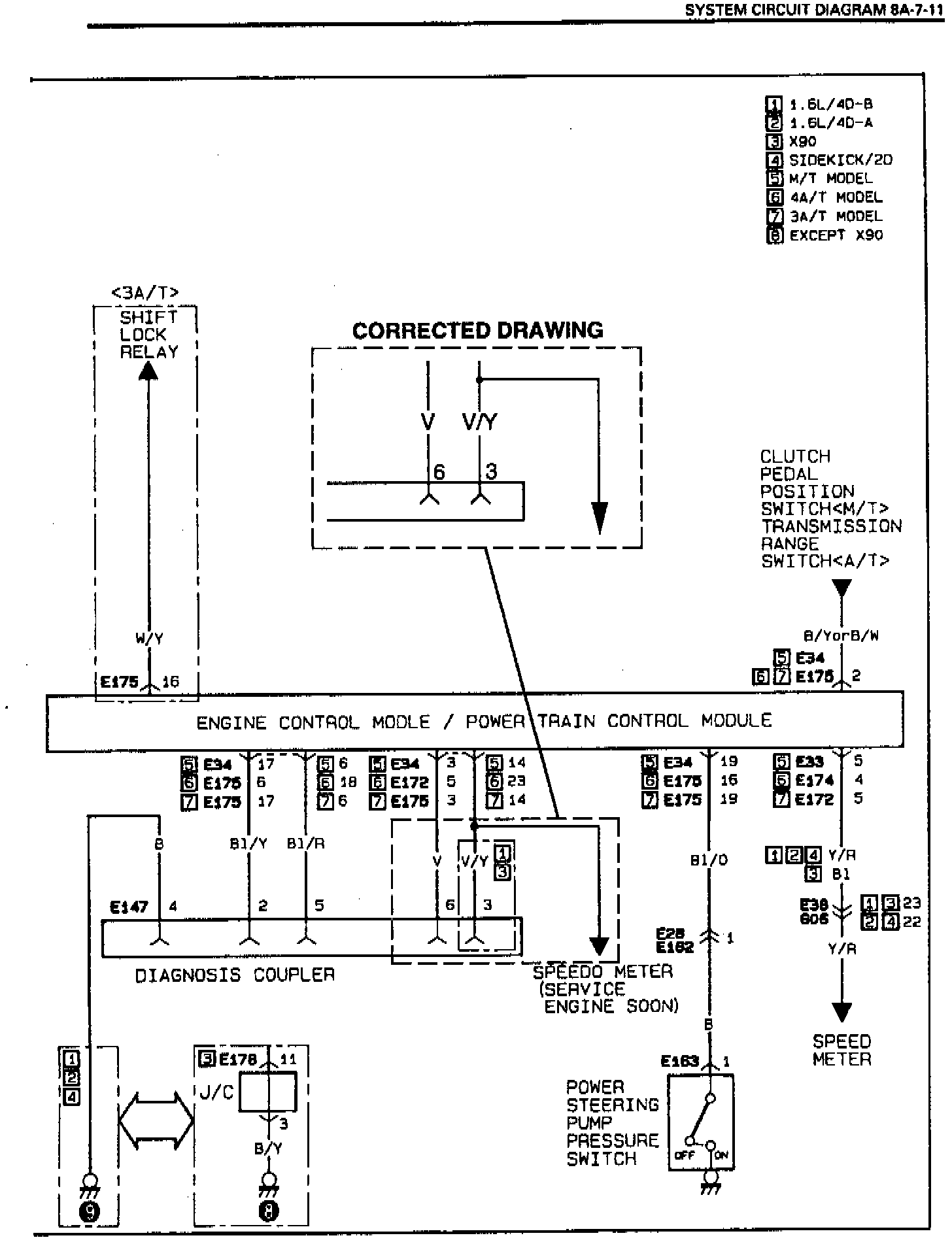

This bulletin is to inform you of the corrections on page 8A-7-11 and page 8A-7-23 in the 1997 SUZUKI WIRING DIAGRAM MANUAL (P/N 99512-60A60-33E). Please make the needed corrections as listed in this bulletin.
