Home >> Suzuki >> 1997 >> Sidekick JS 2D Soft Top 2WD L4-1.6L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Data Link Connector >> Diagrams >> Electrical Diagrams
April 5, 2026: LEMON Manuals is launched! Read the announcement.

Electrical Diagrams

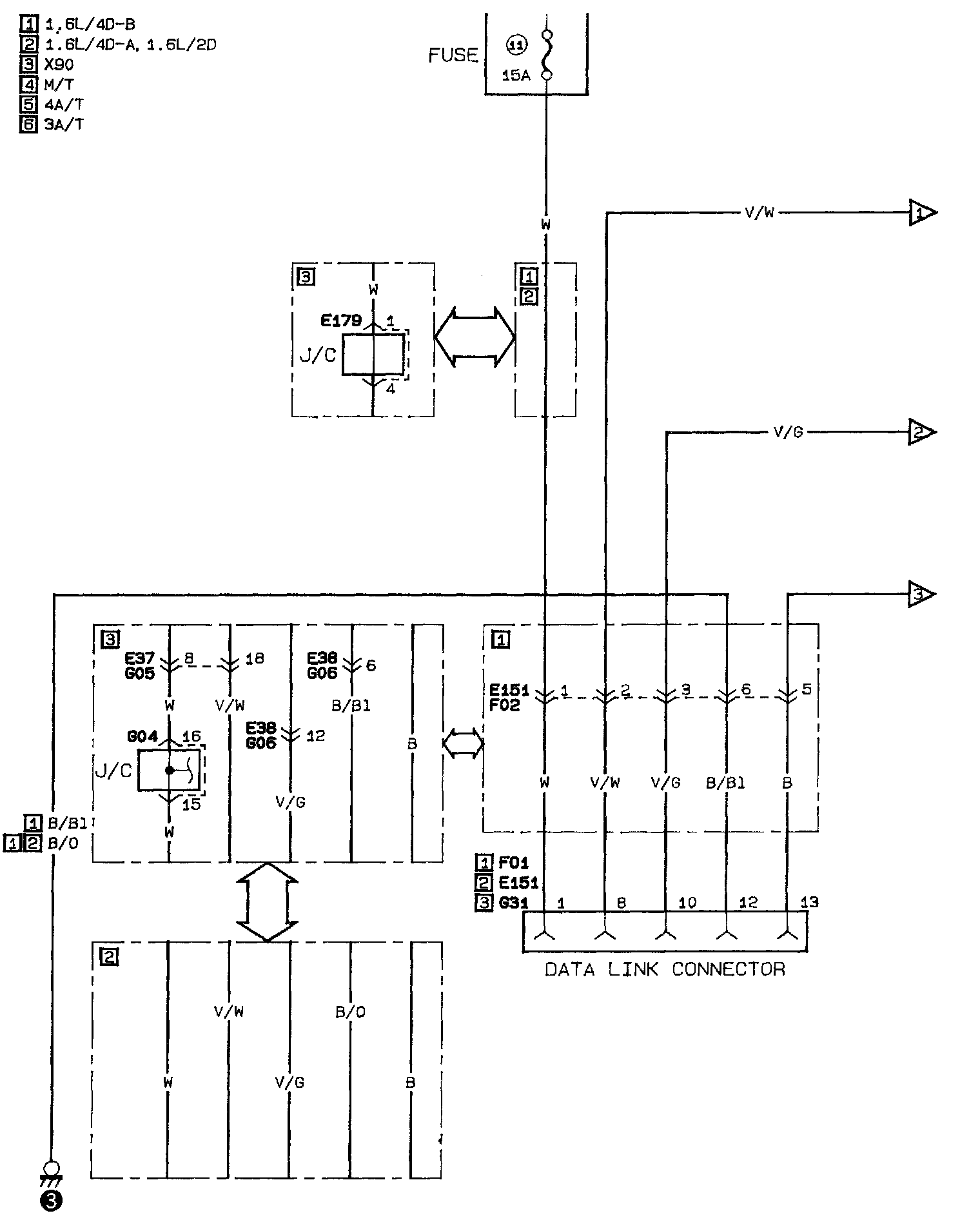

Part 1 Of 2:

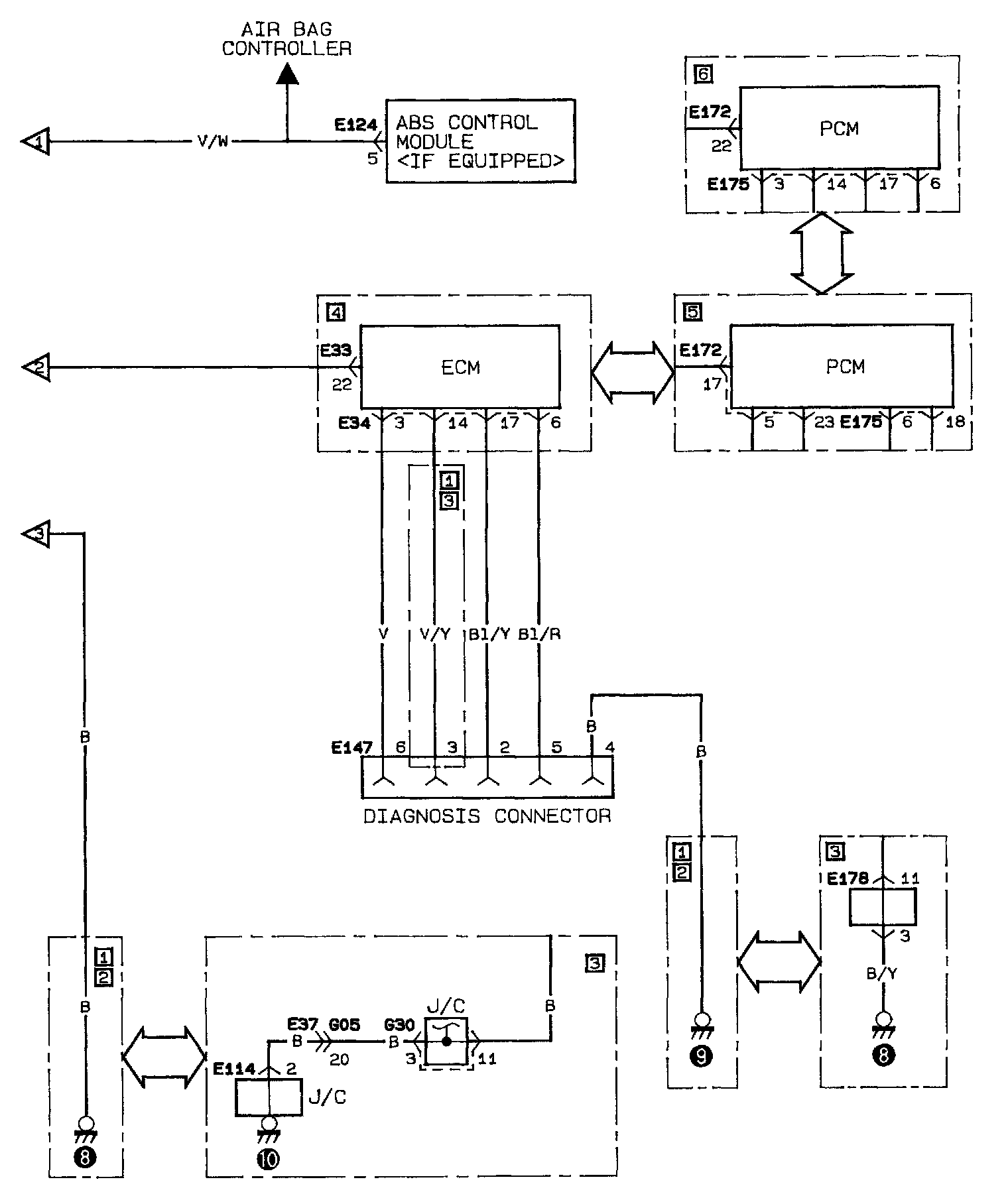

Part 2 Of 2:
