How to Read Harnesses Routing Diagram

HOW TO READ HARNESSES ROUTING DIAGRAM

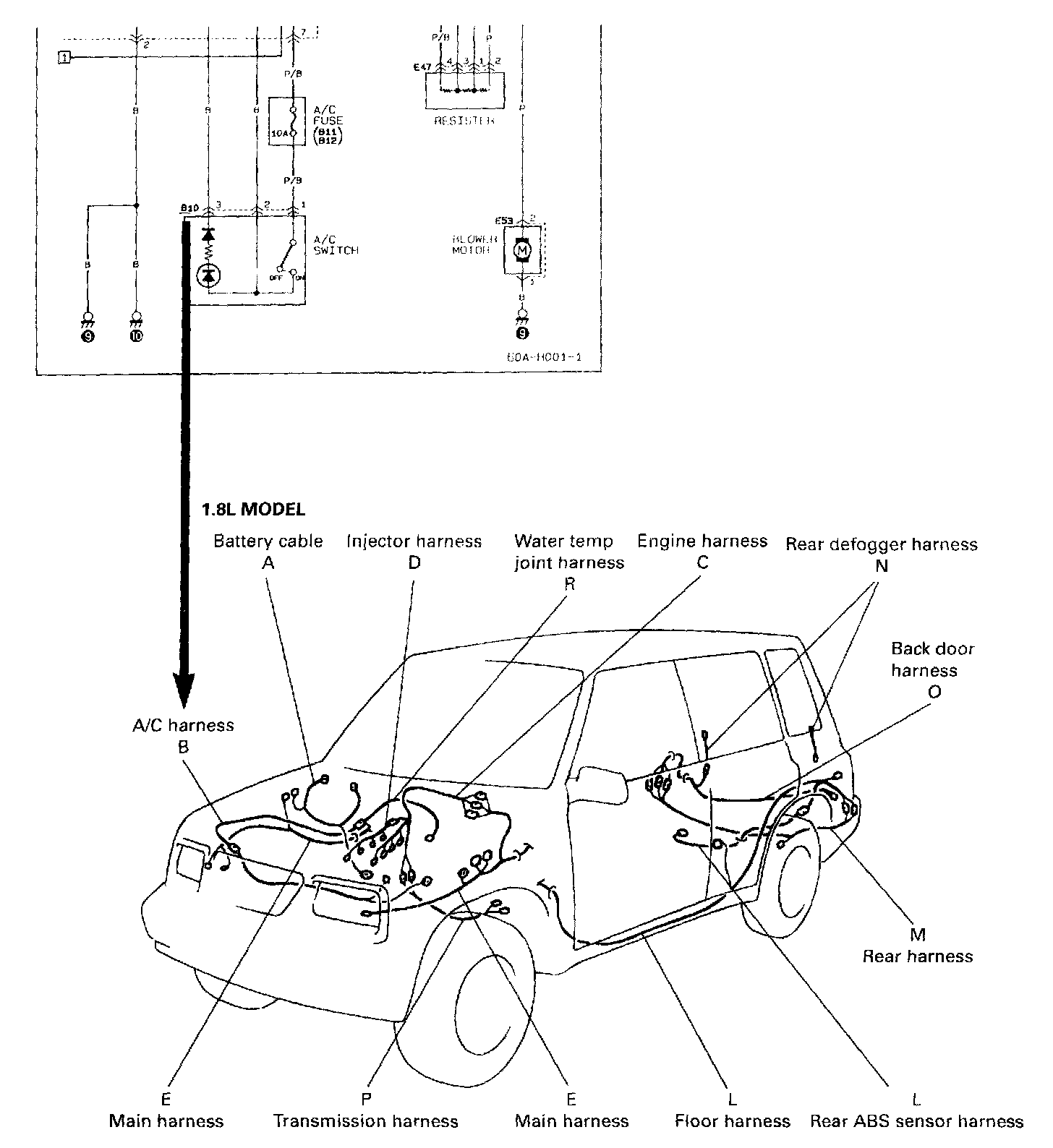

In the system Circuit diagrams, alphabets (A, B, ...) are used as shown above. Alphabets are assigned to wiring harnesses in one to one correspondence so that if you know the alphabet, the harness name and its location in the vehicle can be retrieved simply by finding the same alphabet in the harness routing diagram.
