Engine Basic Check

ENGINE BASIC CHECK

Part 1 Of 2:




Part 2 Of 2:

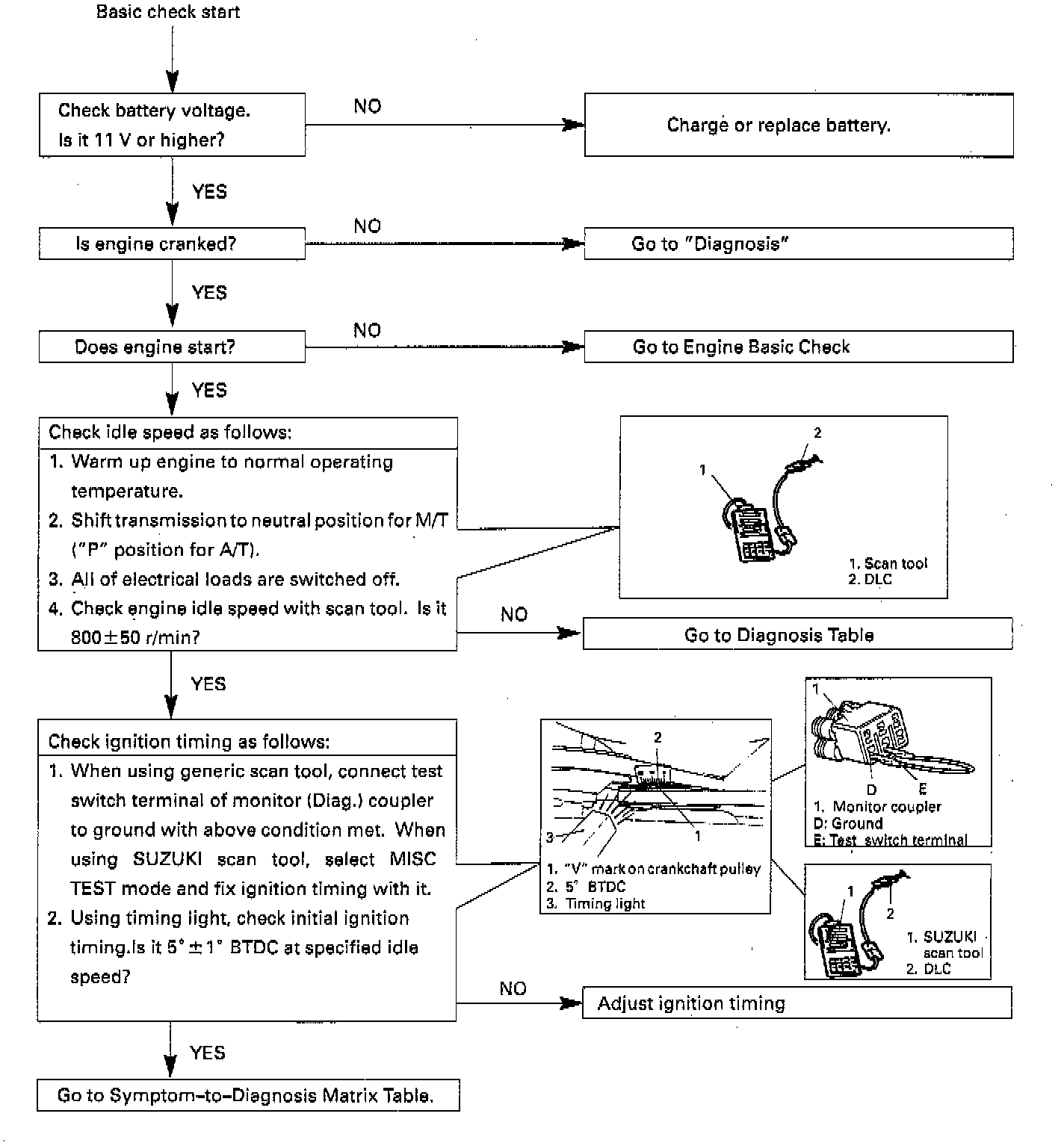

This check is very important for troubleshooting when Electronic Control Module (ECM) has detected no Diagnostic Trouble Code (DTC) and no abnormality has been found in visual inspection. Follow the charts carefully.
