Symptom Related Diagnostic Procedures

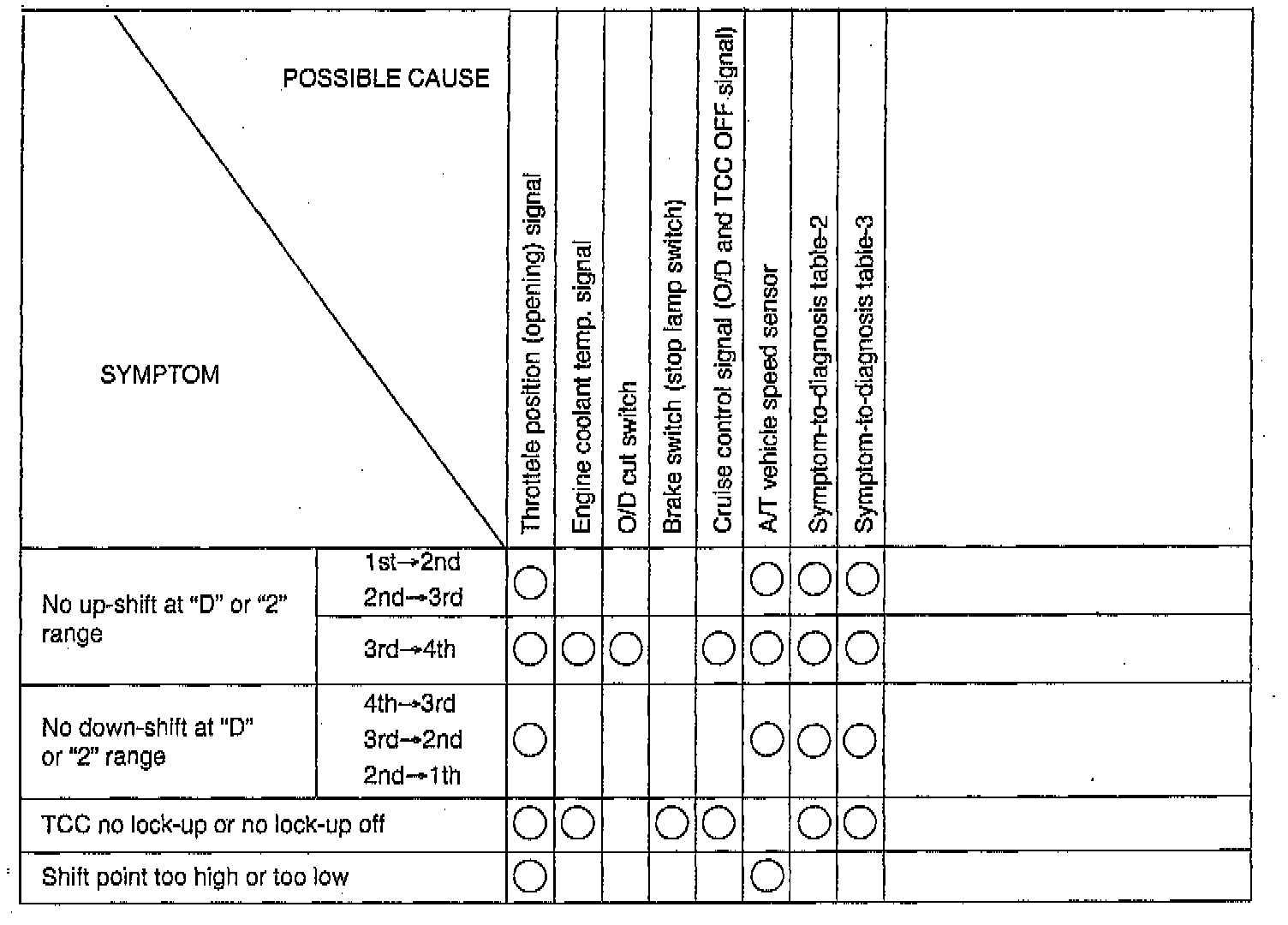

Part 1 Of 3:

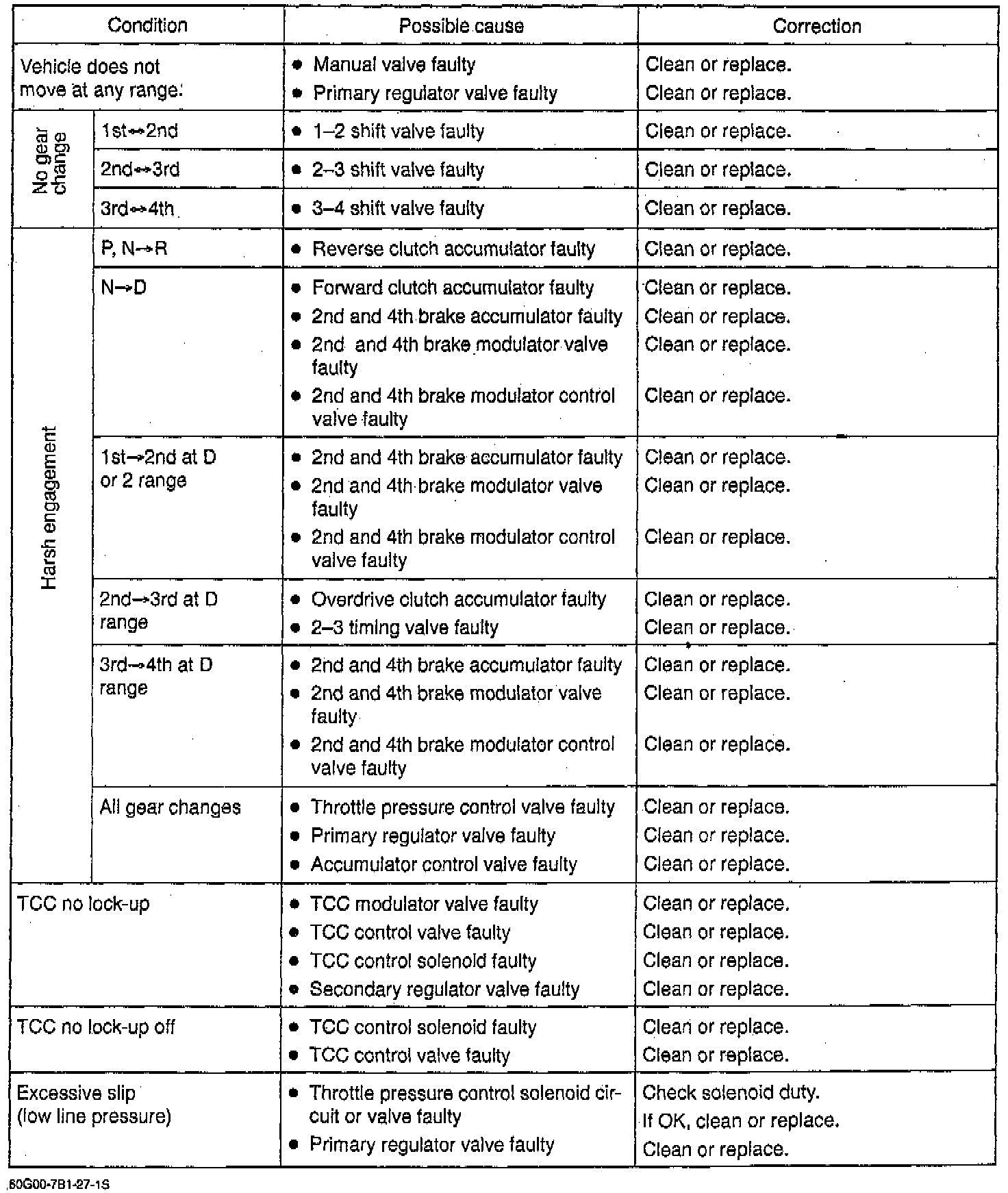

Part 2 Of 3:

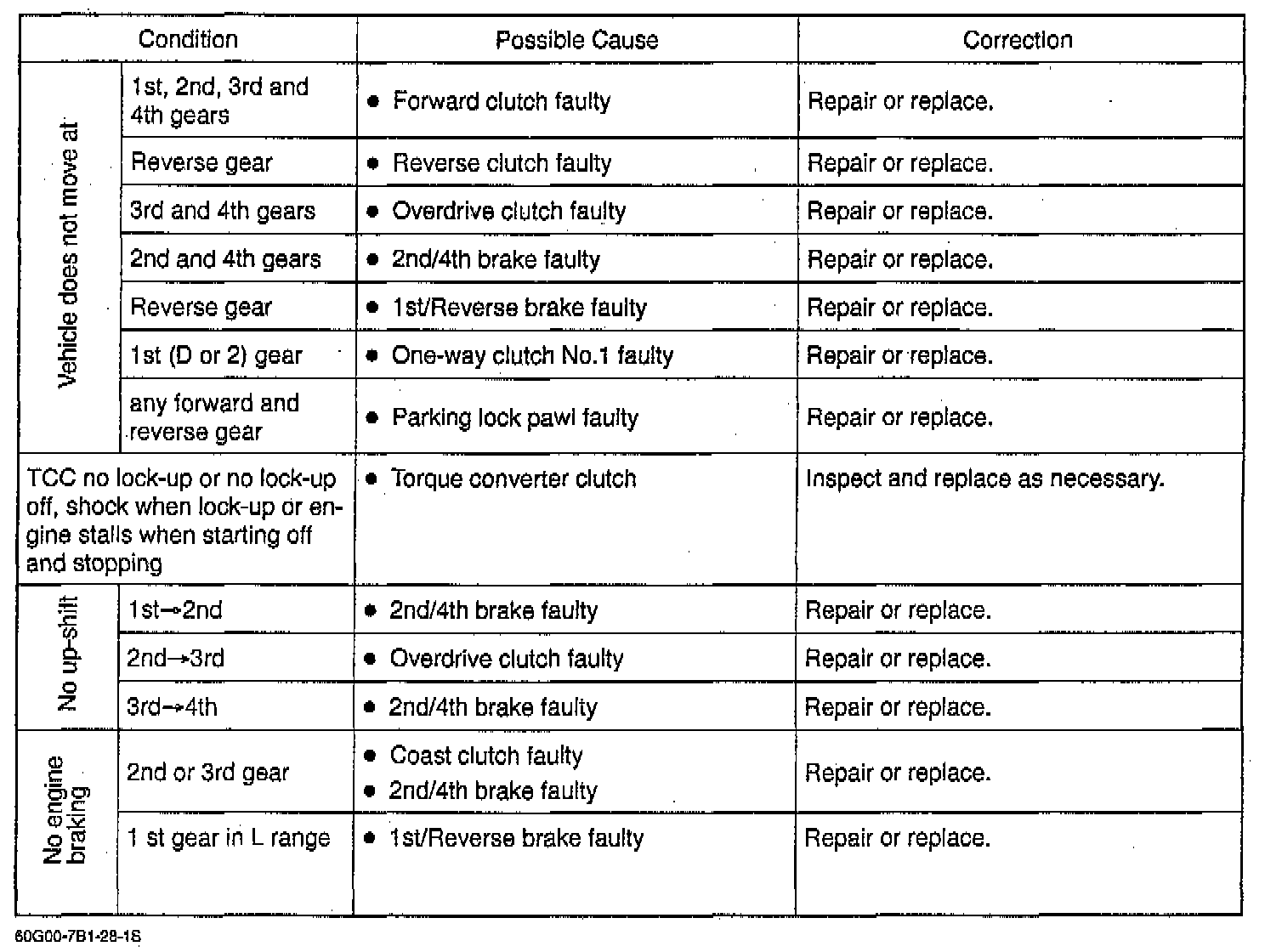

Part 3 Of 3:






Perform troubleshooting referring to tables, according to Automatic transmission basic flow chart, when ECM and TCM have detected no malfunction DTC and no abnormality has been found in visual inspection.
