"L" Range

Operating Clutches, Brakes and Solenoid Valves
- Forward clutch
- Coast clutch
- 1st/Reverse brake
- Solenoid valve No.1

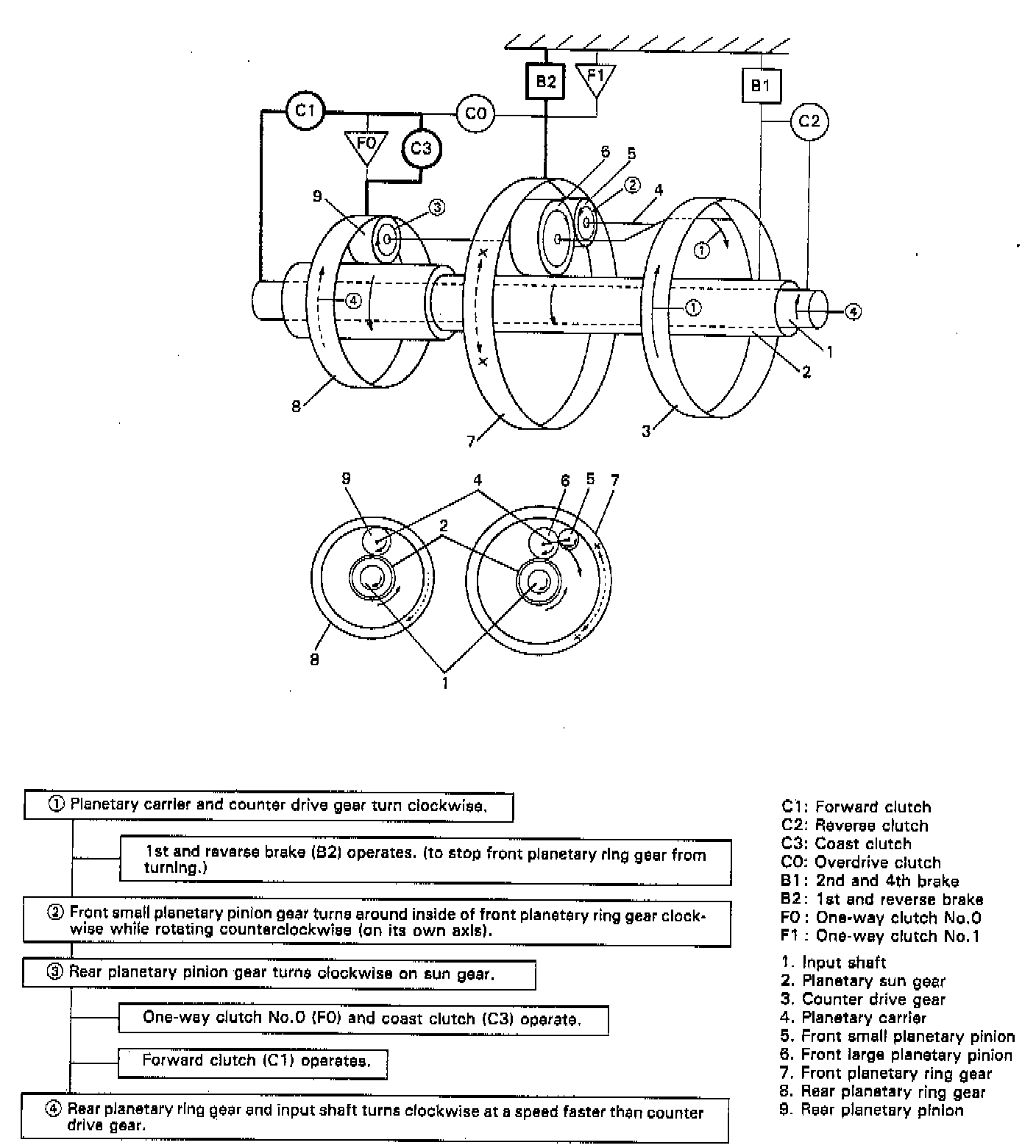

The power train is the same as that of "D" or "2" range 1st gear but it is so designed that the 1st/reverse brake operates to prevent the front planetary ring gear from turning clockwise and resulting in engine brake failure, when the engine brake is used.
