Marker Lamp

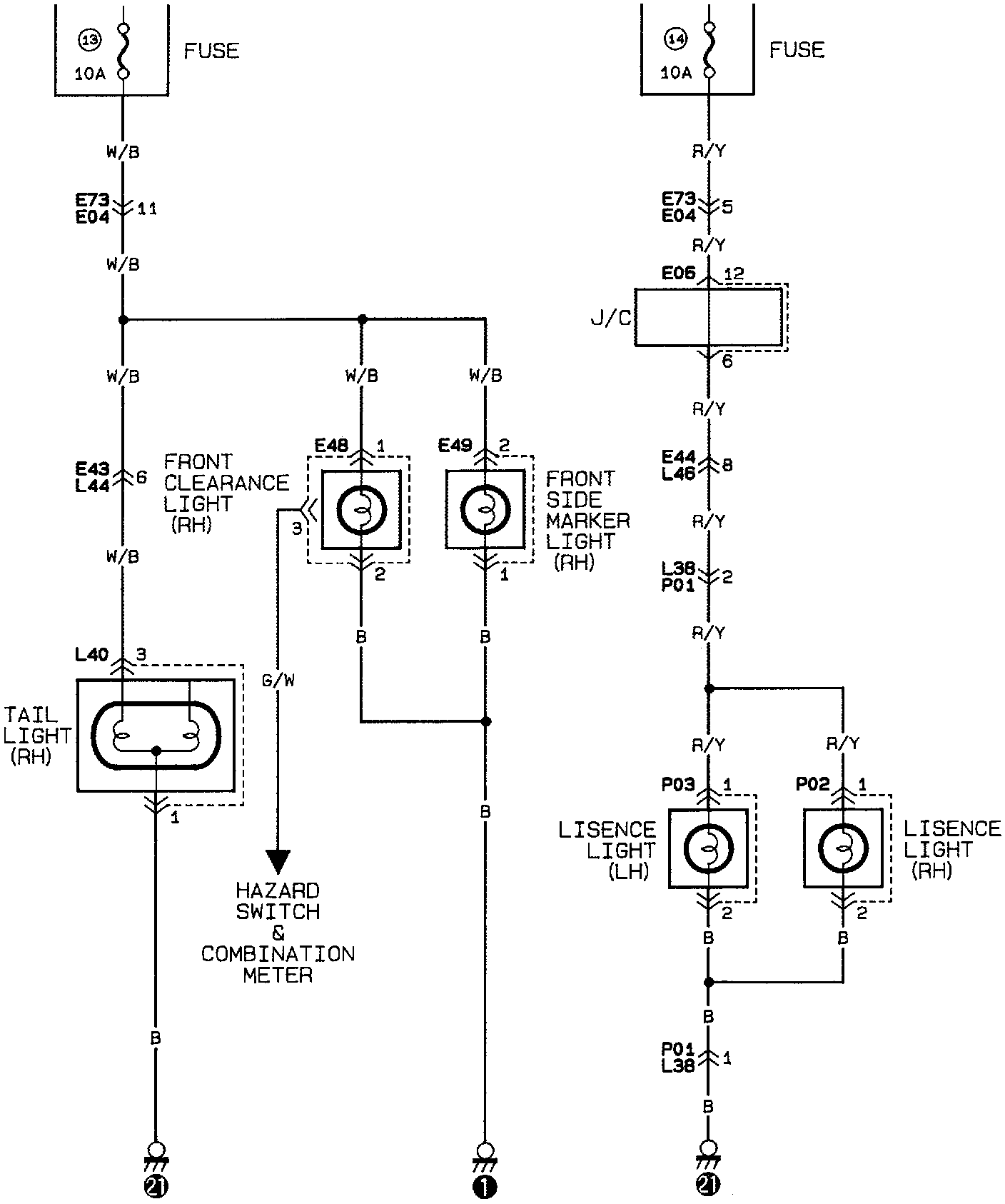

Clearance, Side Marker, Tail And License Plate Light (Part 1 Of 2):

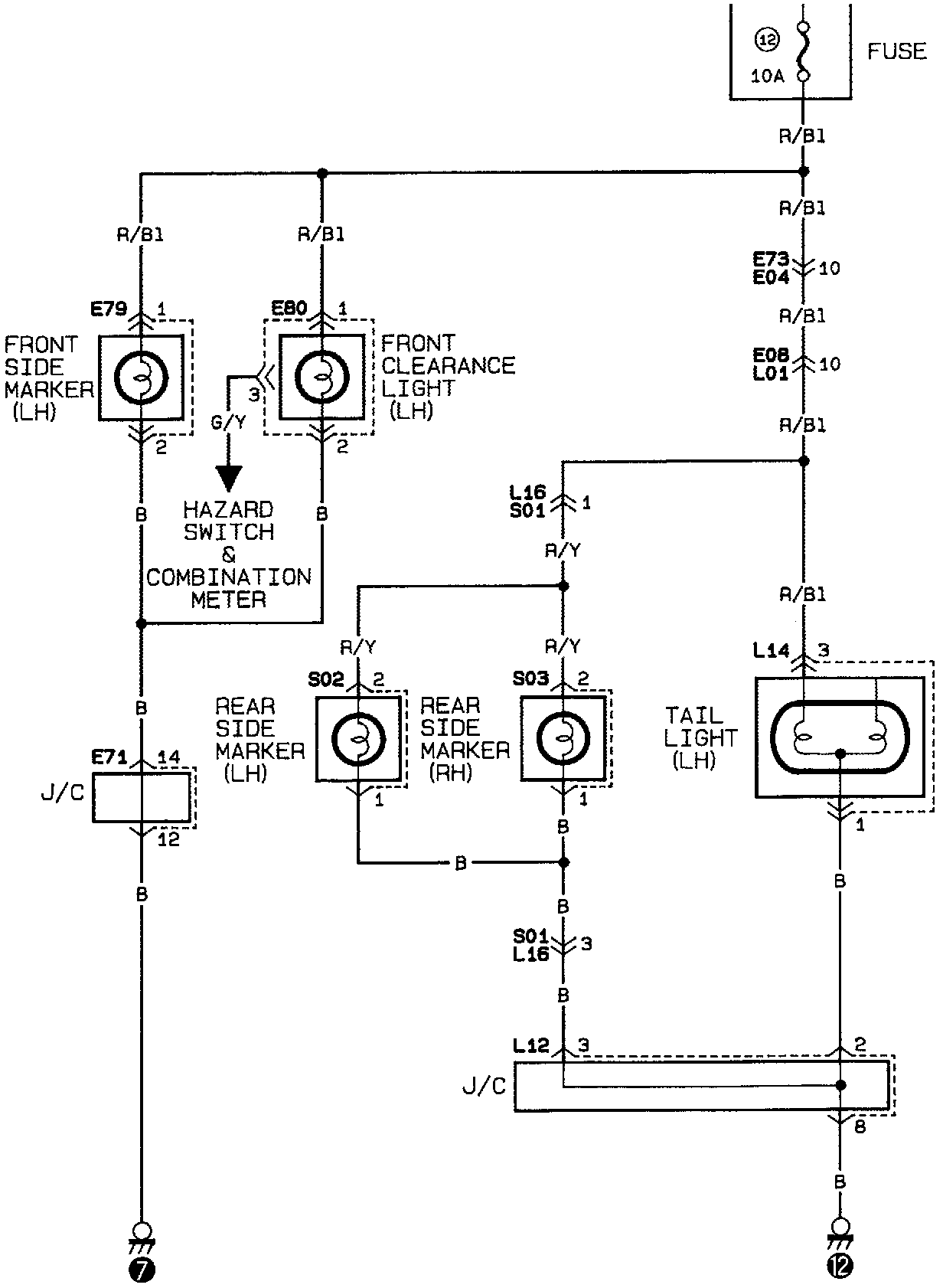

Clearance, Side Marker, Tail And License Plate Light (Part 2 Of 2):
