Heating and Air Conditioning




Blower Motor

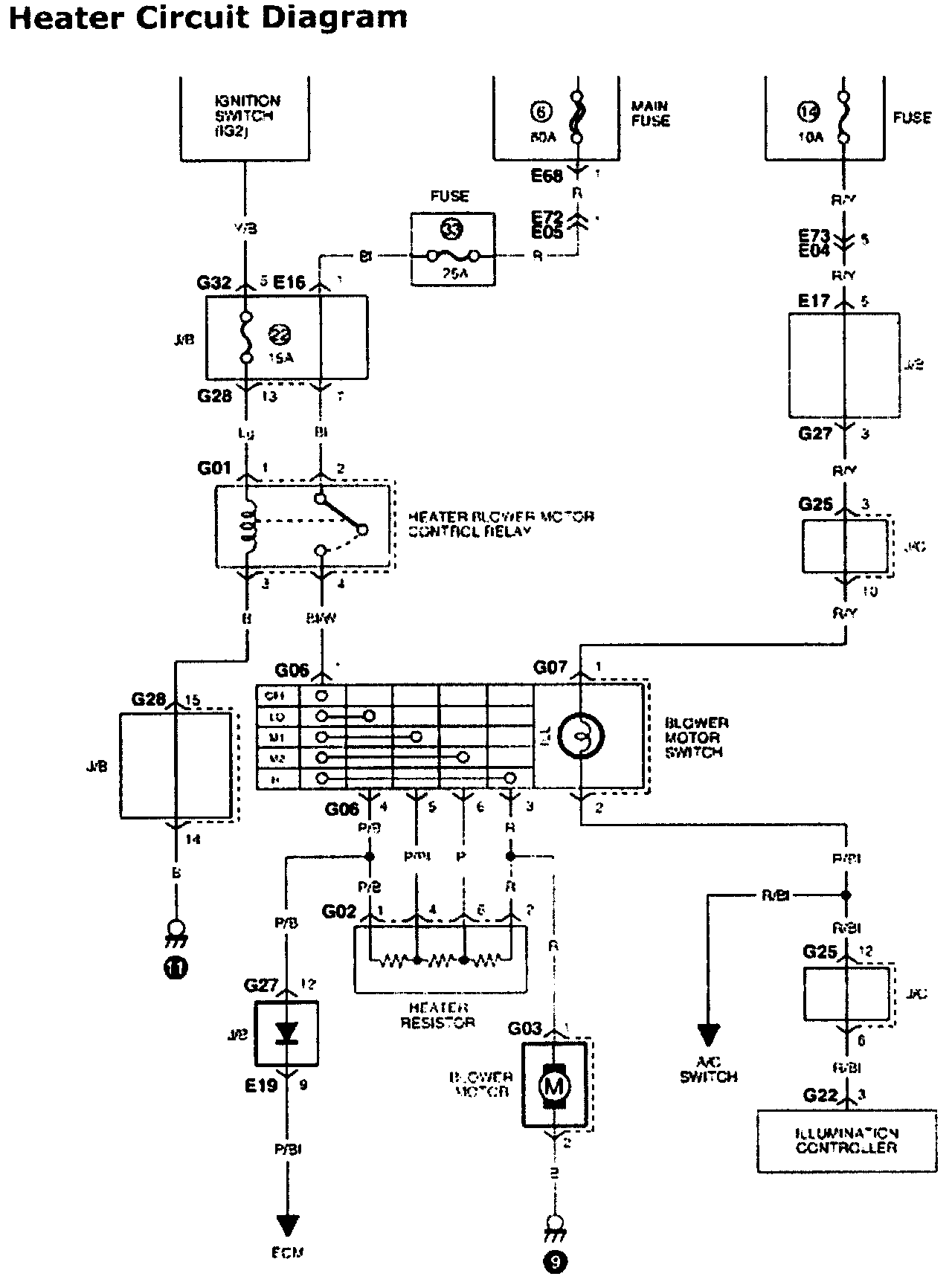

Heater Circuit:






Air Conditioning System

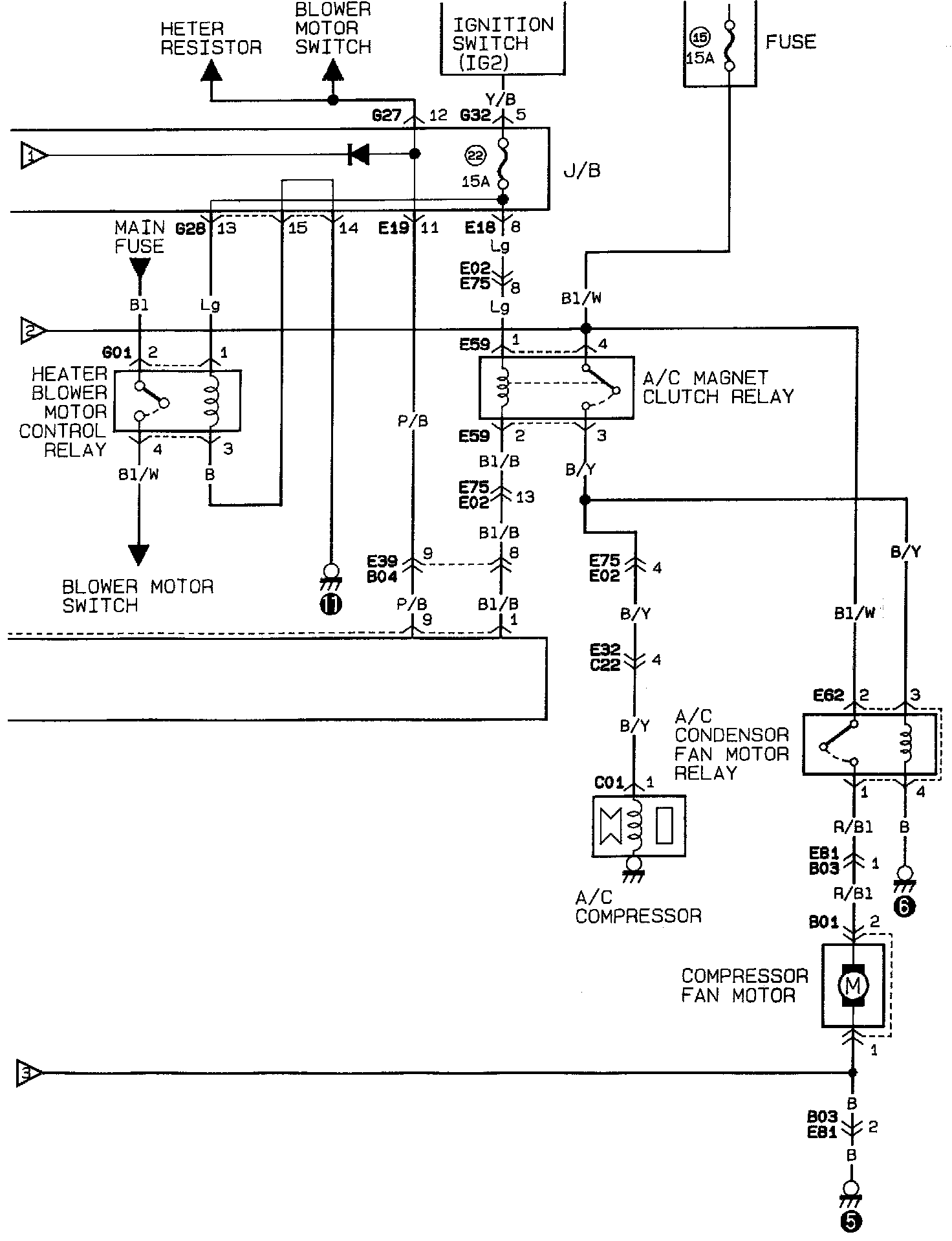

Air Conditioning System Part 1:

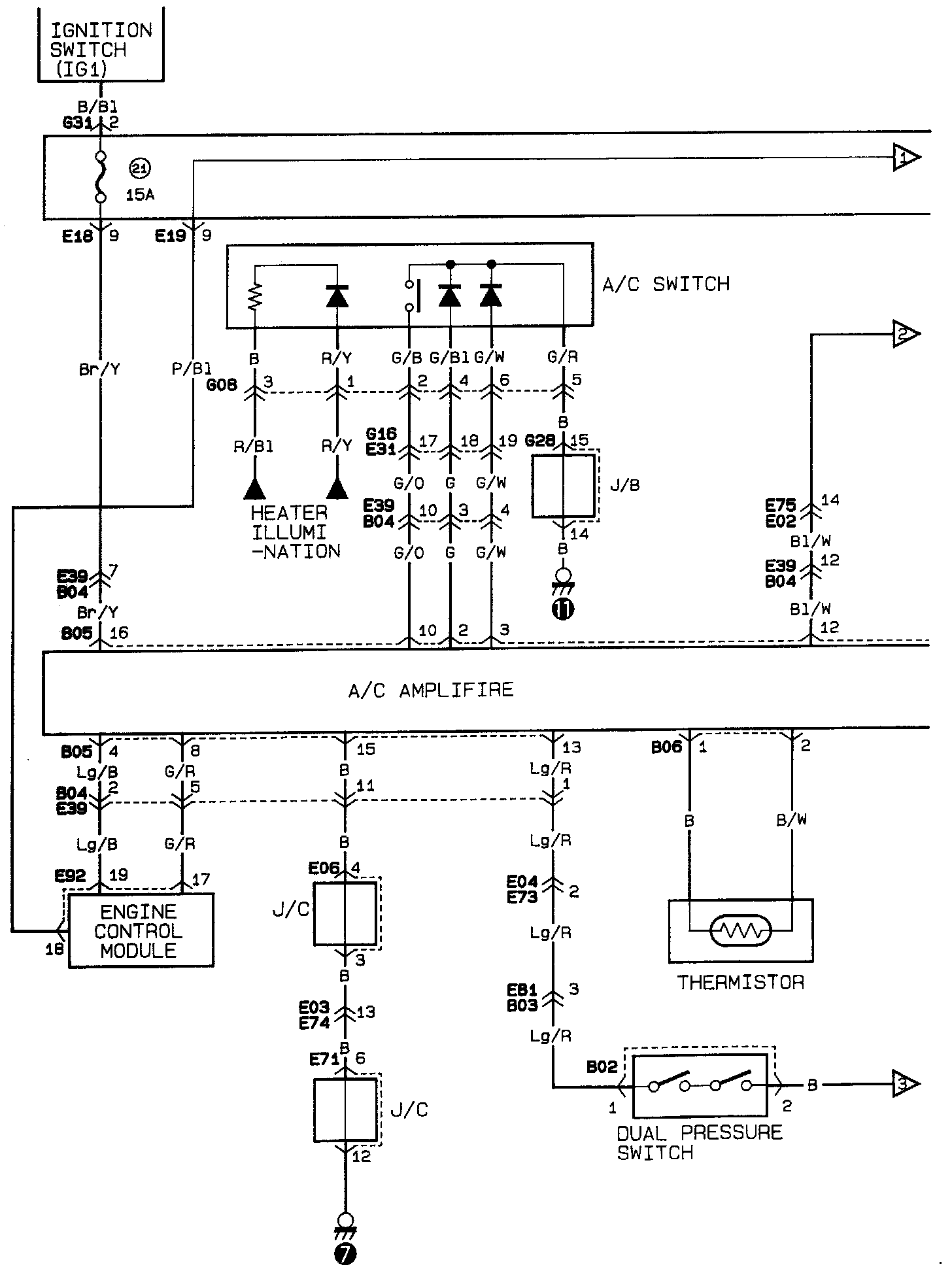

Air Conditioning System Part 2:
