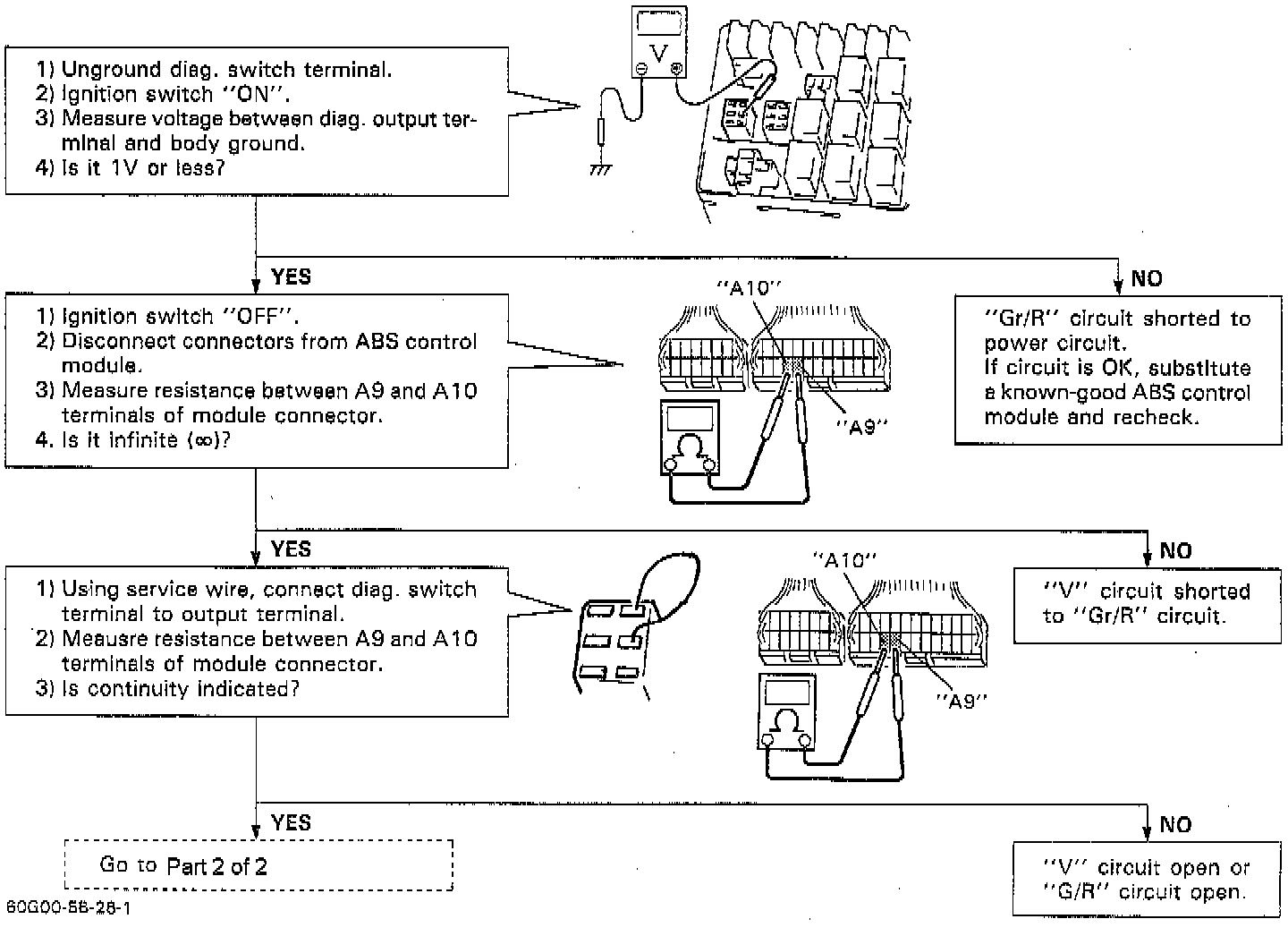

Chart D - DTC Is Not Outputted

(Part 1 Of 2):

(Part 2 Of 2):

CIRCUIT DESCRIPTION
When the diag. switch terminal is connected to the ground with the ignition switch turned ON, the ABS control module outputs a diagnostic trouble code (DTC, voltage change signal) from the diag. output terminal. Connecting or shorting the diag. switch terminal and the output terminal will set the mode to clear DTC.
