Scan Tool Testing and Procedures

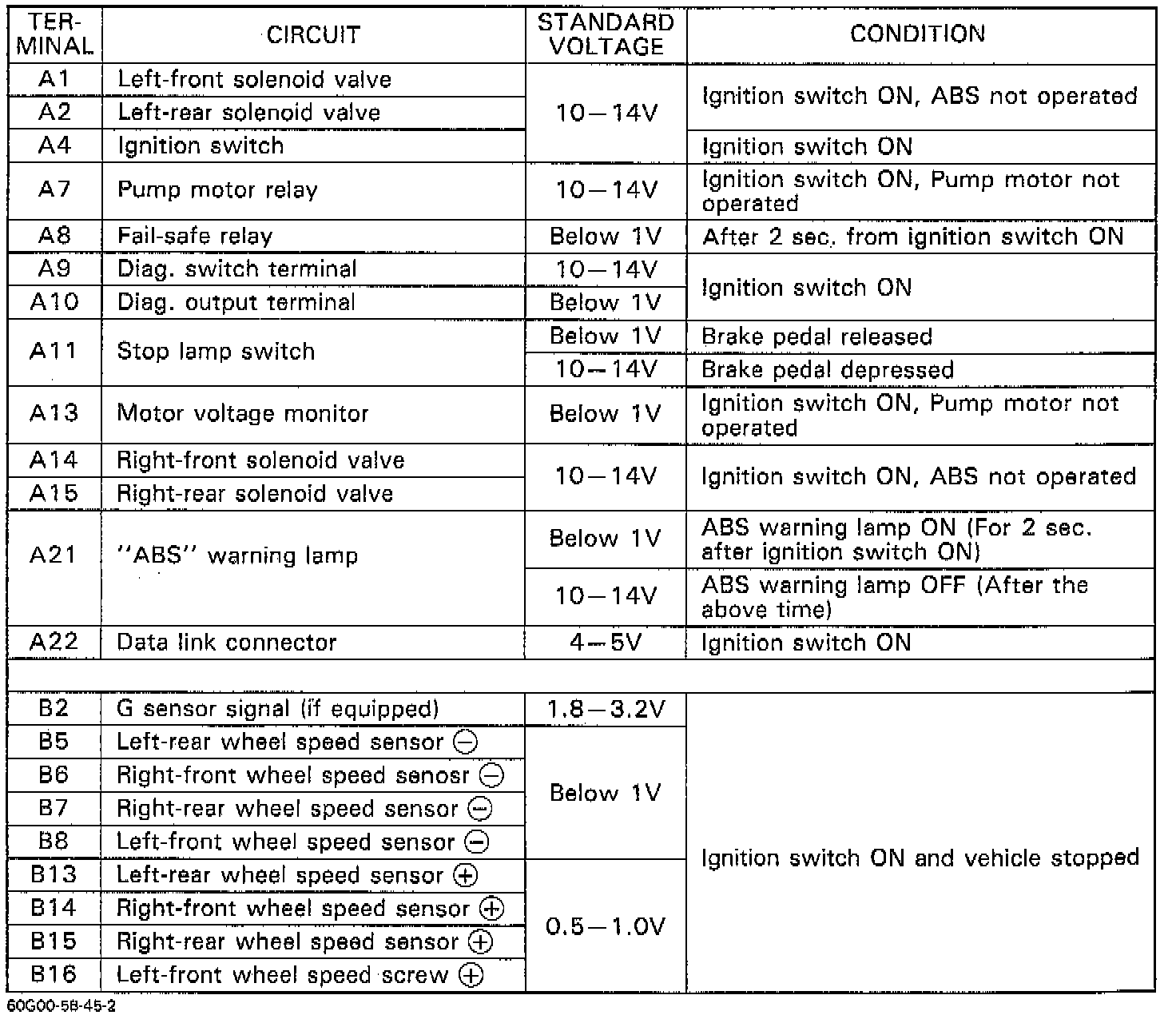

Voltage between each terminal of module connector and body ground is as follows.

CAUTION: Never connect voltmeter or ohmmeter to ABS control module with connector disconnected from it. Attempt to do it may cause damage to ABS control module.





NOTE: As each terminal voltage is affected by the battery voltage, confirm that it is 11V or more when ignition switch is ON.
