P0463

WIRING DIAGRAM





CIRCUIT DESCRIPTION
This signal is sent from the fuel level sensor (gauge) installed in the fuel tank. ECM uses this signal as one of the monitoring conditions for detecting diagnostic trouble code (DTC).





DETECTING CONDITION AND POSSIBLE CAUSE

DTC CONFIRMATION PROCEDURE
1. Clear DTC, start engine and run engine at idle for 1 min.
2. Check pending DTC in "ON BOARD TEST" or "PENDING DTC" mode and DTC in "DTC" mode.

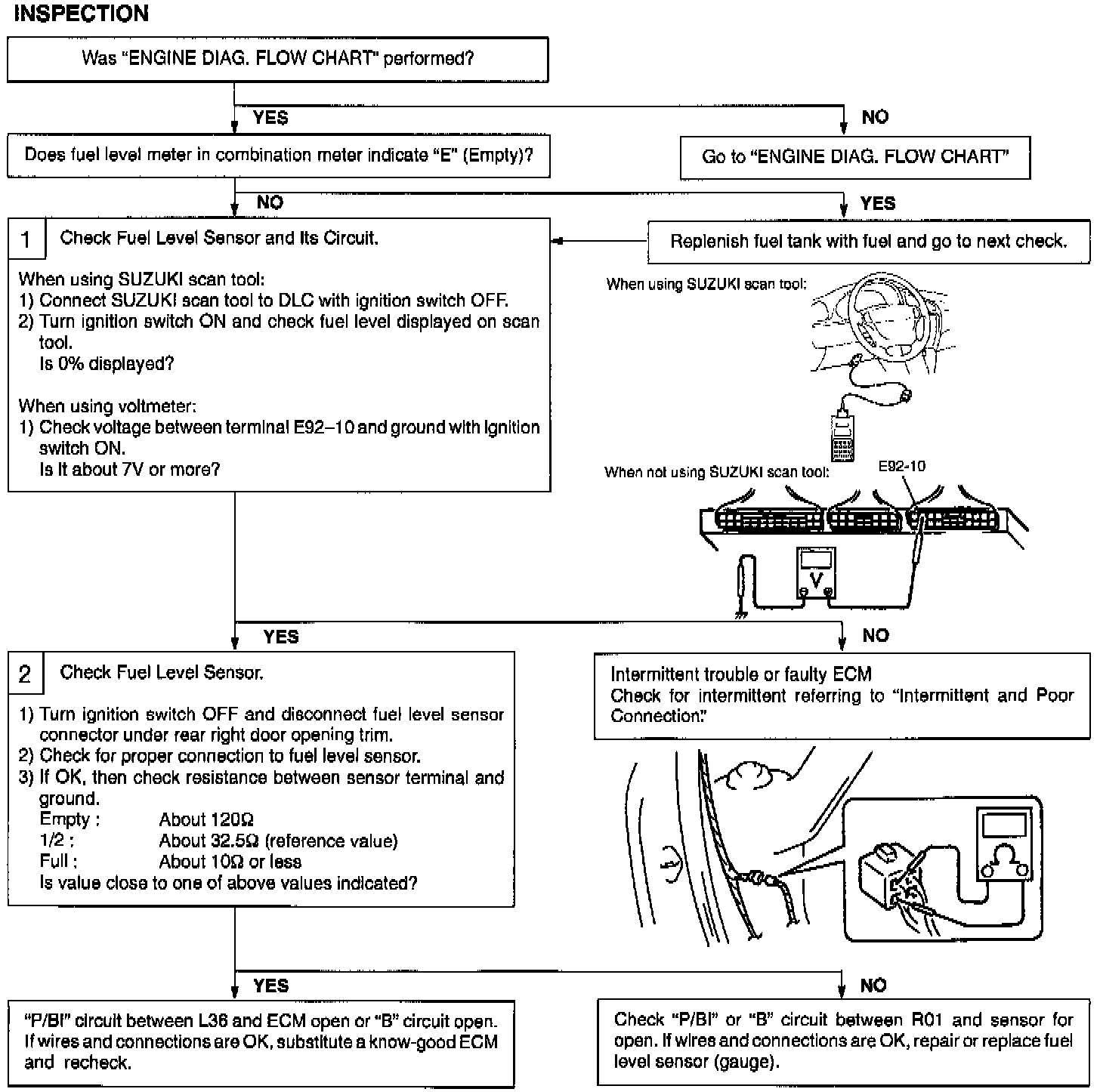

INSPECTION
