Signal Inspection (With A/T Only)

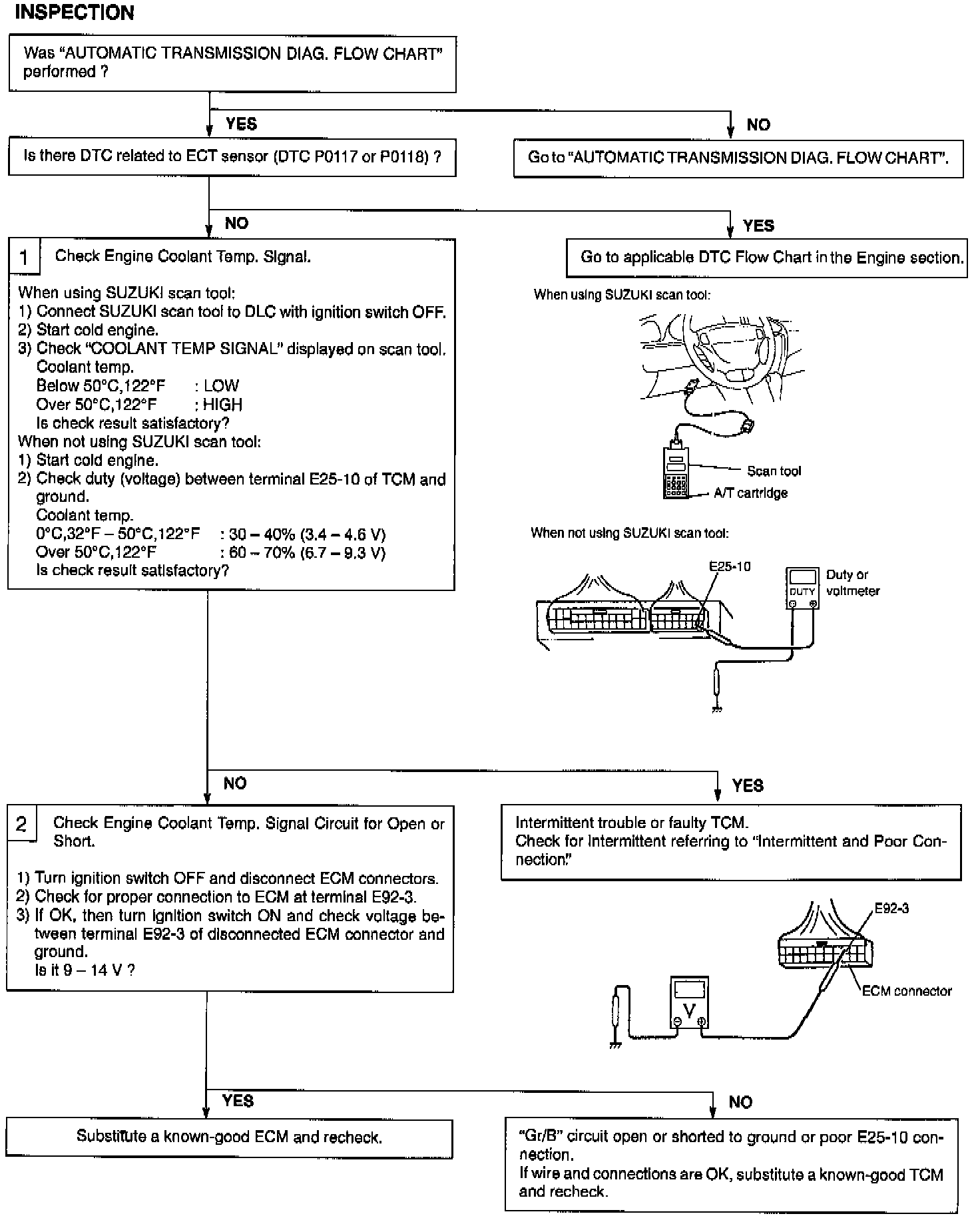

Check engine coolant temp. signal referring to step 1 of DTC P1705/DTC NO.51 Flow Chart above. If check result is not satisfactory, check each wire harness, circuit connection and ECT sensor.
