P Codes - Powertrain Control System

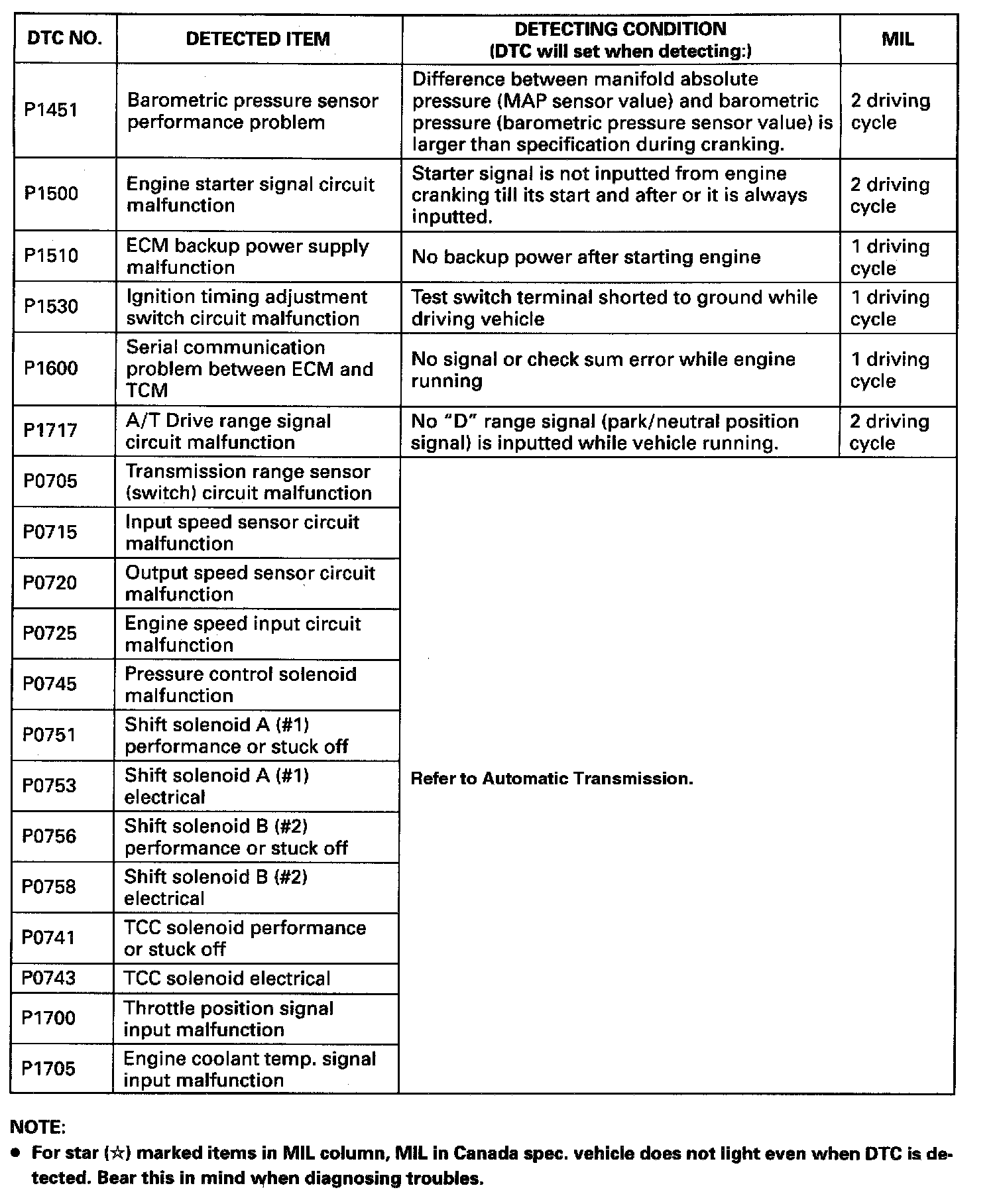

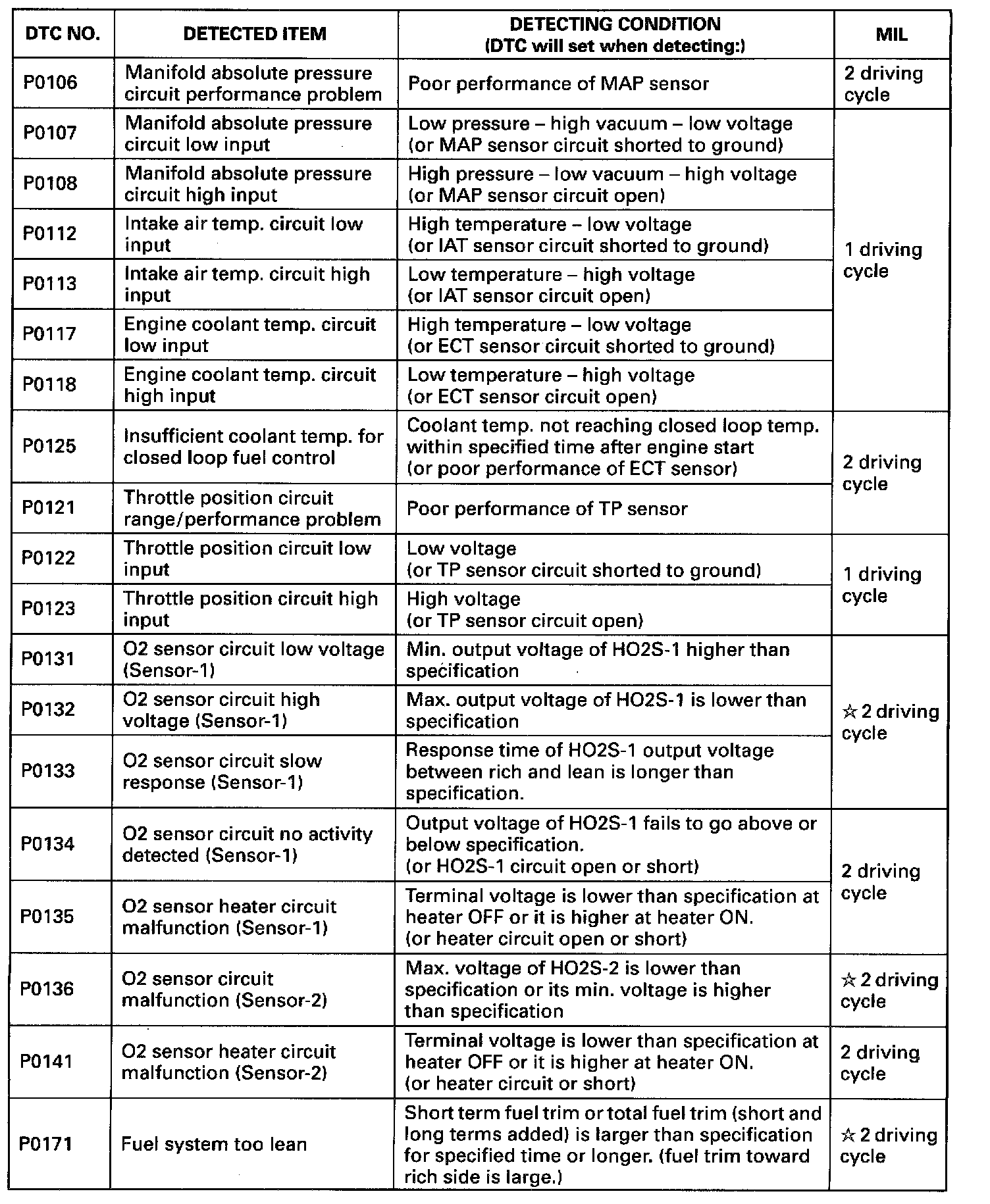

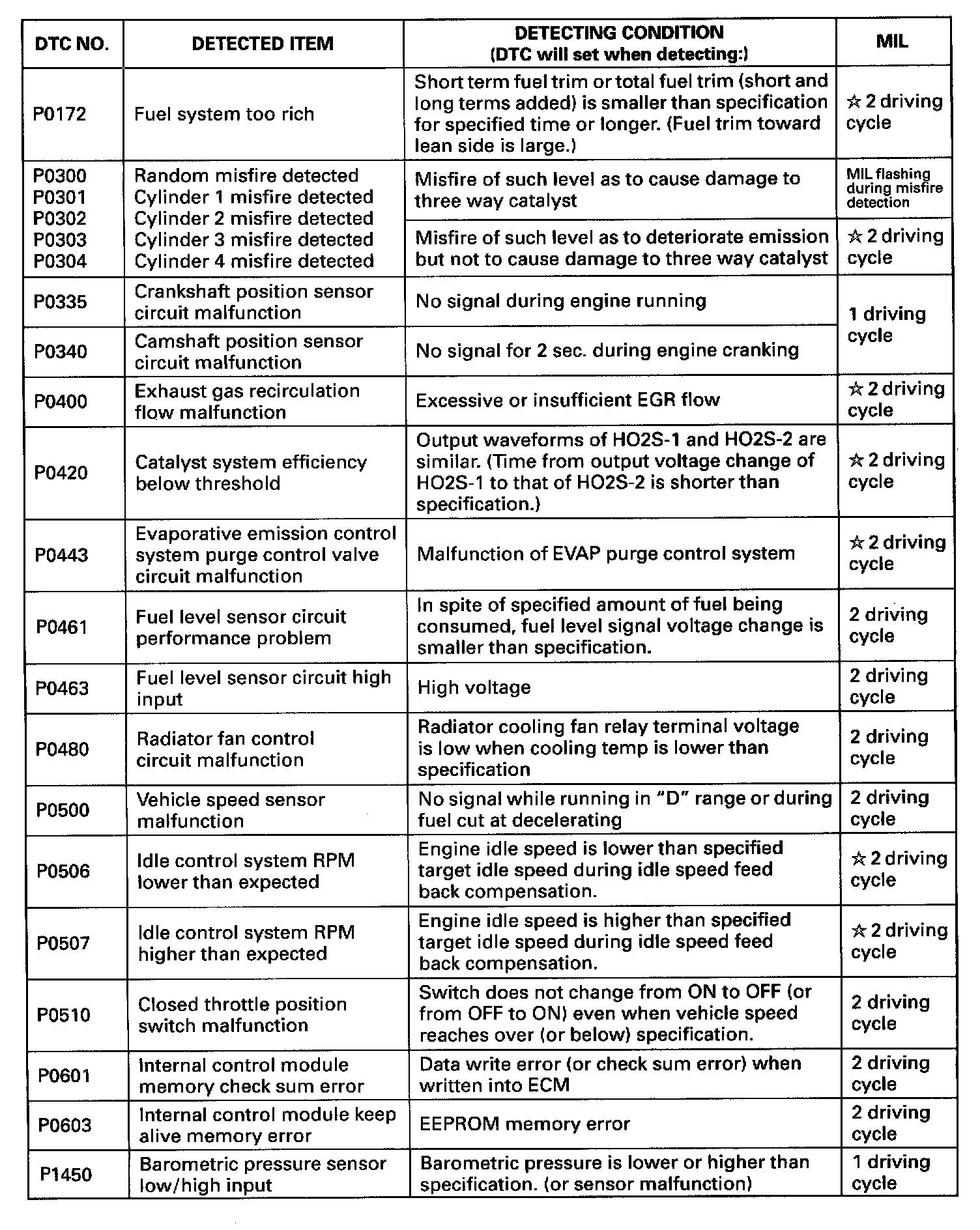

DTC Descriptions












NOTE: For star marked items in MIL column, MIL in Canada spec. vehicle does not light even when DTC is detected. Bear this in mind when diagnosing troubles.

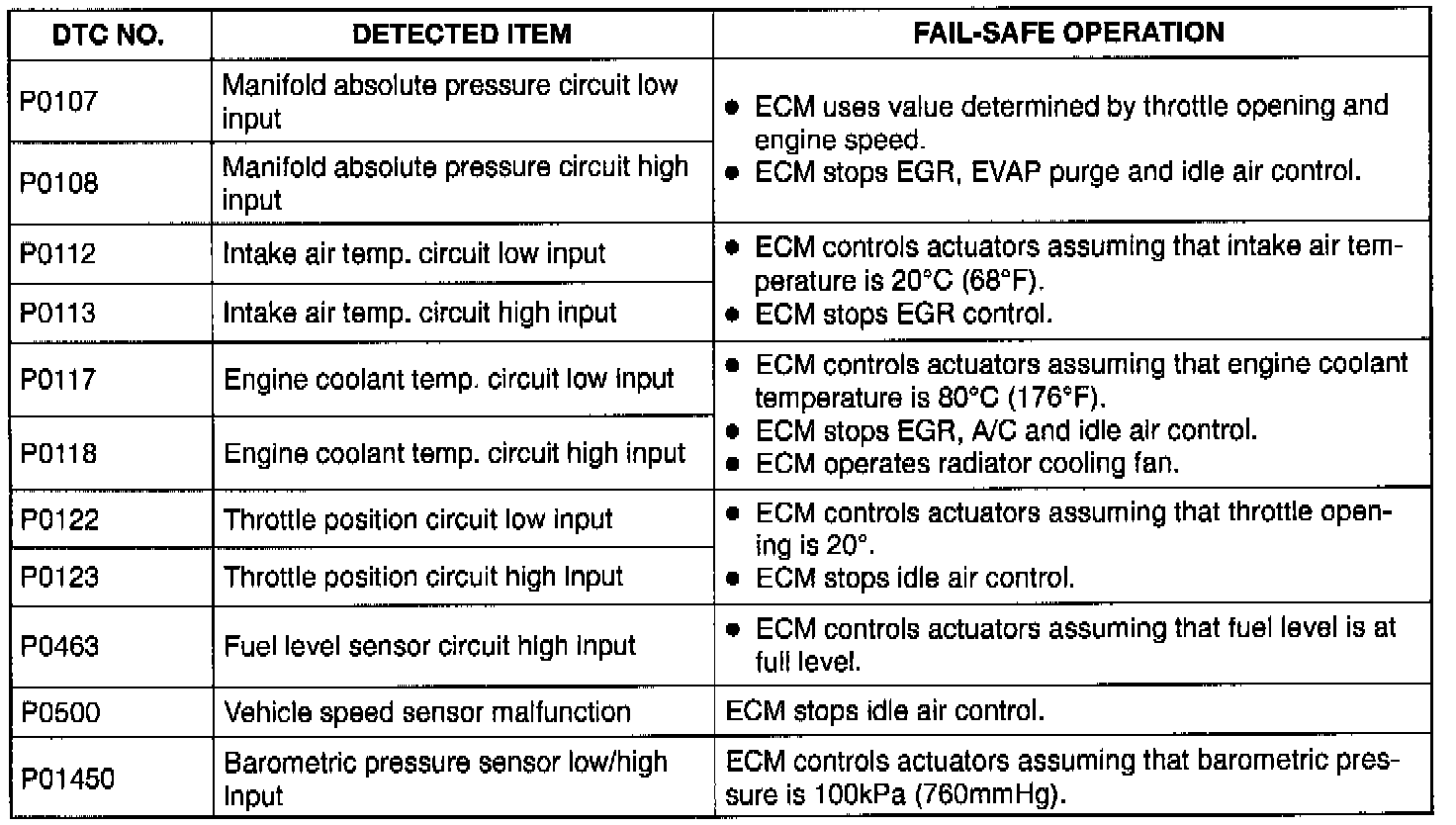

Fail-Safe Table




When any of the following DTCs is detected, ECM enters fail-safe mode as long as malfunction continues to exist but that mode is canceled when ECM detects normal condition after that.
