Signal Inspection (With A/T Only)

Throttle Valve Opening Signal Inspection

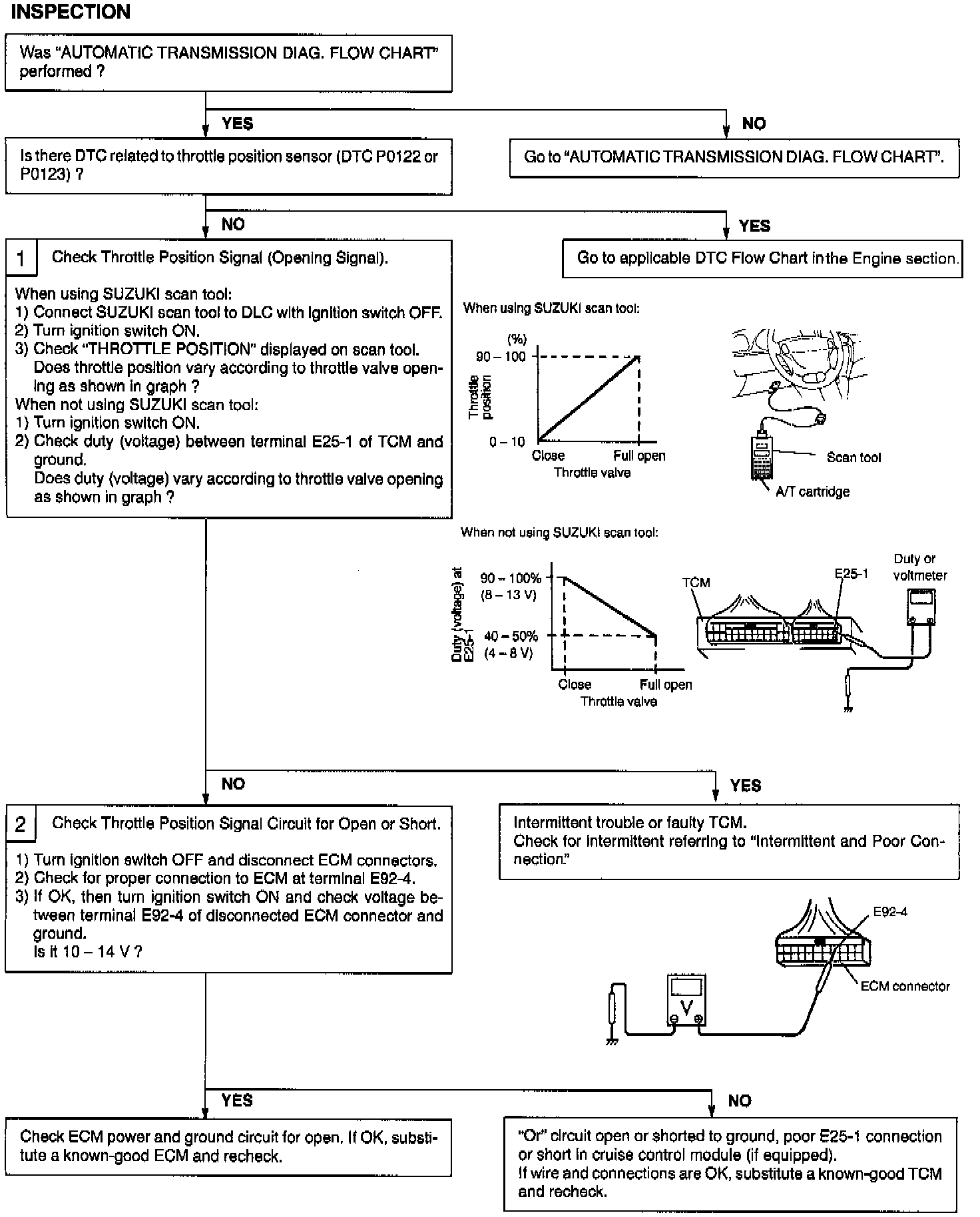

Check throttle valve opening (throttle position) signal referring to step 1 of DTC P1700/DTC No.32 or 33 Flow Chart above. If check result is not satisfactory, check each wire harness, circuit connections and TP sensor.
