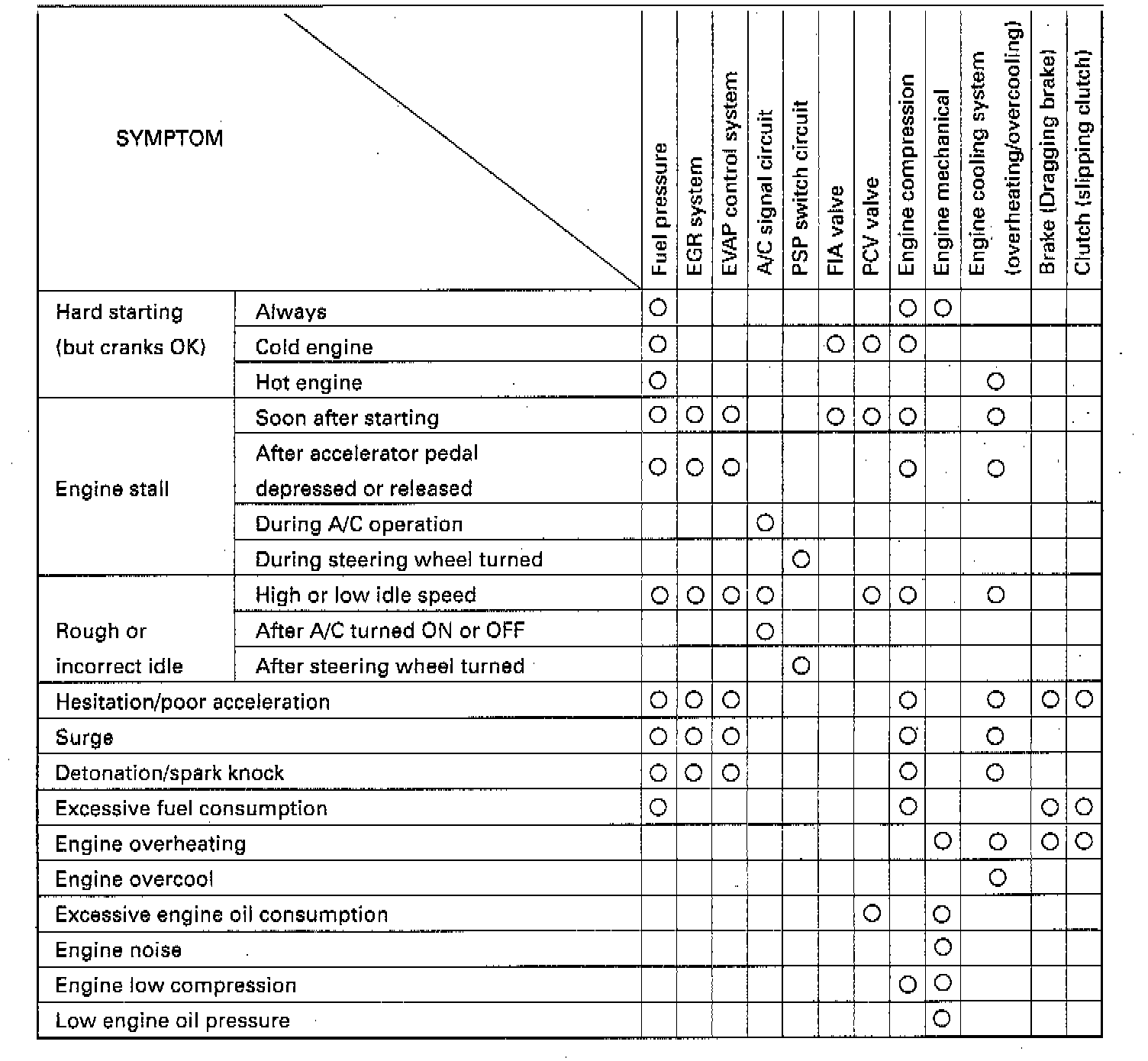

Symptom-to-Diagnosis Matrix Table

SYMPTOM-TO-DIAGNOSIS MATRIX TABLE





Perform troubleshooting referring to following table when Electronic Control Module (ECM) has detected no Diagnostic Trouble Code (DTC) and no abnormality has been found in visual inspection and engine basic inspection previously.
