Symptom Related Diagnostic Procedures

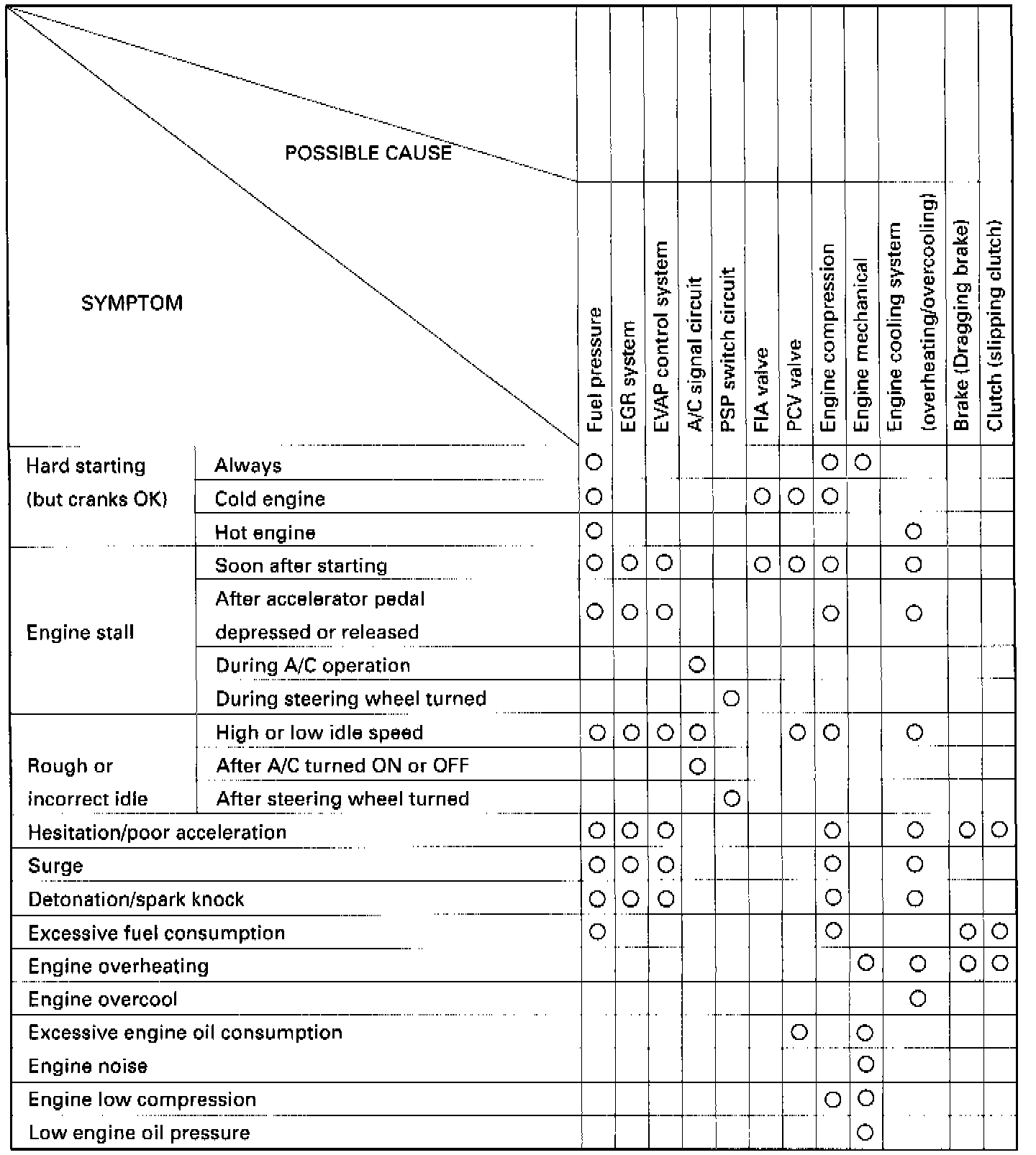

Perform troubleshooting referring to above table when ECM has detected no DTC and no abnormality has been found in visual inspection and engine basic inspection previously.
