Electrical Diagrams

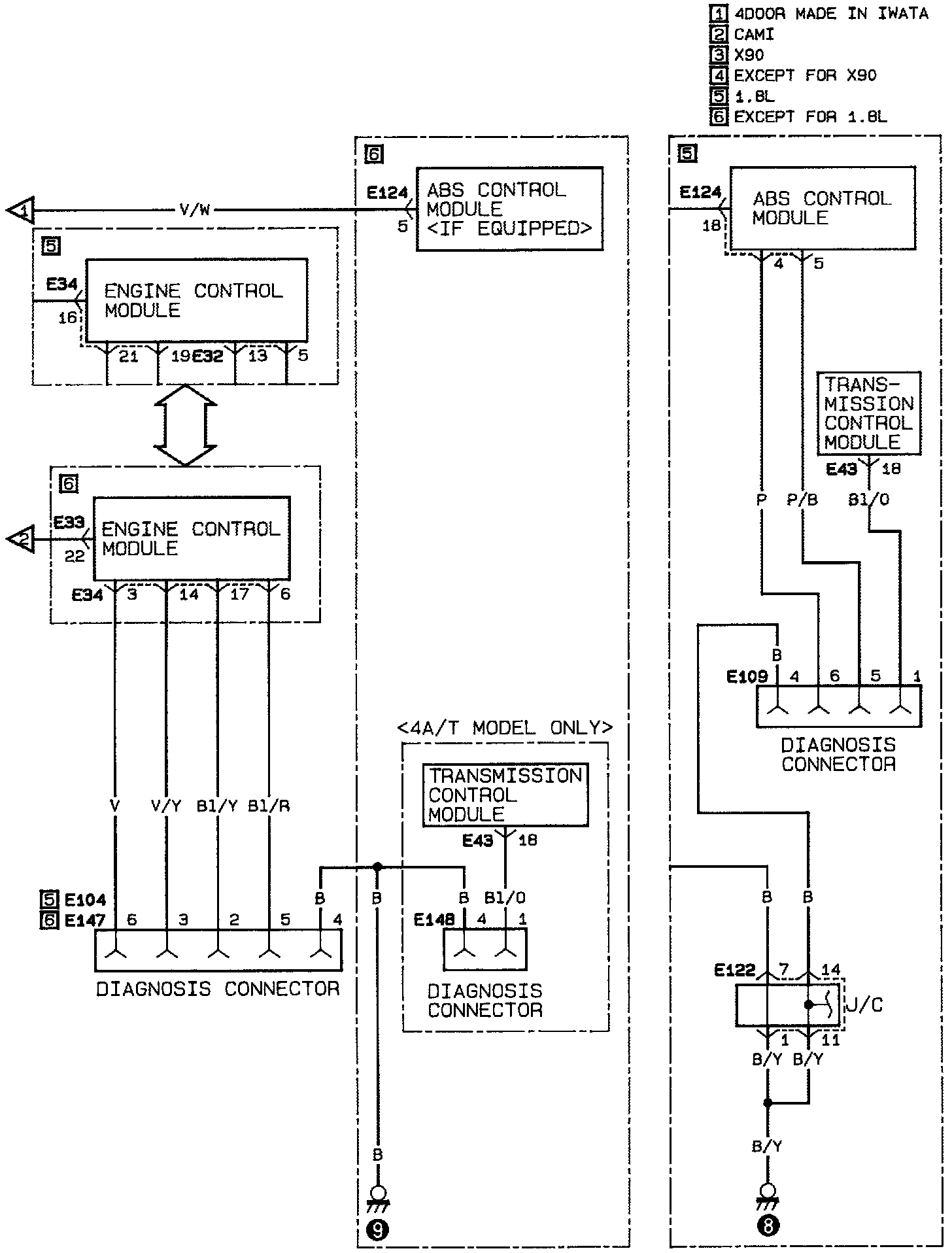

Data Link Connector (DLC), Diagnosis Connector (Part 1 Of 2):

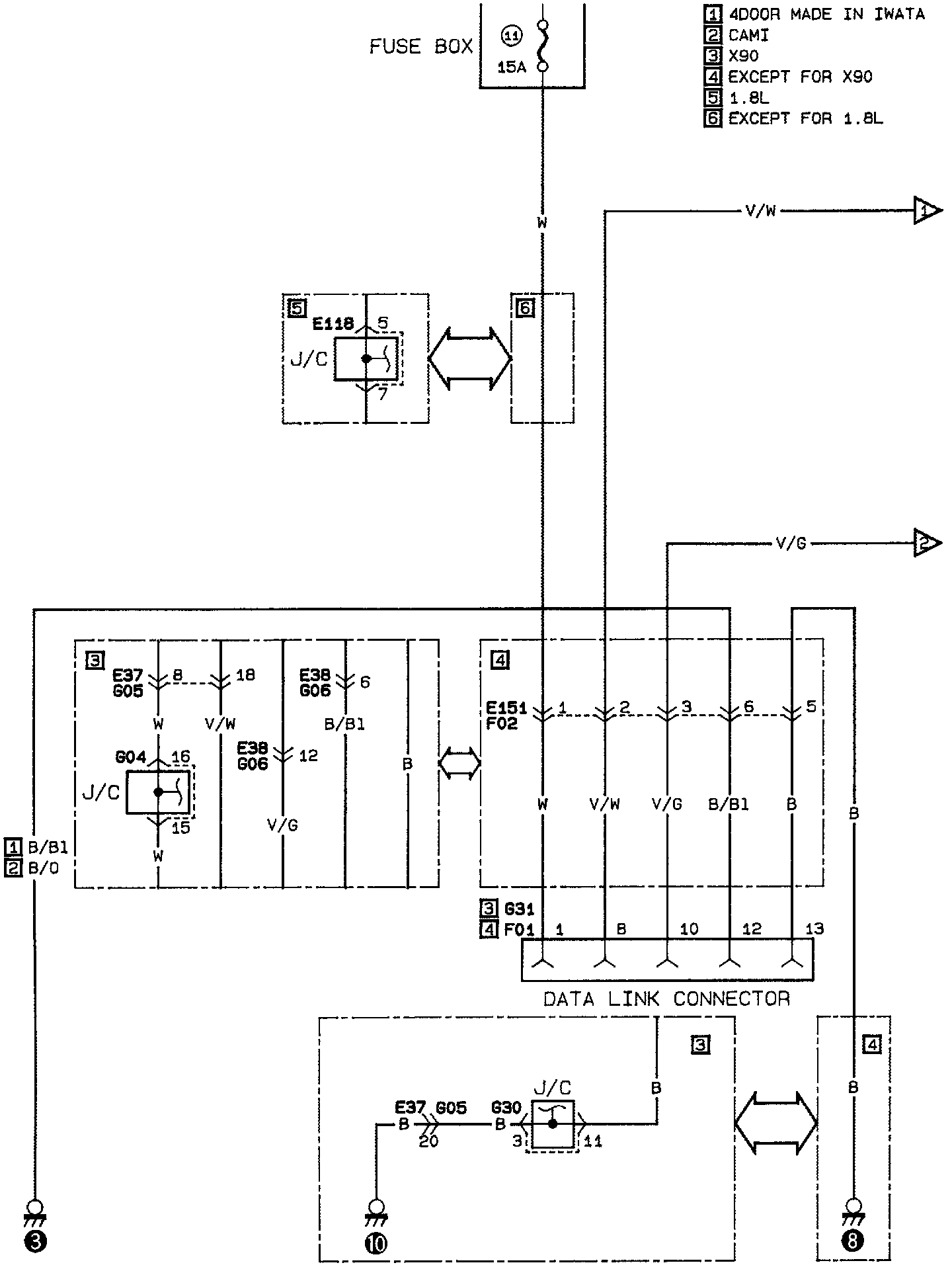

Data Link Connector (DLC), Diagnosis Connector (Part 2 Of 2):
