DTC P0500 VSS Diagnostic Procedures Revised

TSB No. TS4-23 06076(R)
Section Title: Engine

Division: Automotive
Category: Technical

SUBJECT:
AMENDMENT OF 1996 SWIFT SUPPLEMENTARY SERVICE MANUAL

MODEL:
ALL

YEAR:
1996 PRODUCTION AND LATER

CONDITION:
Correction in Swift Supplementary Service Manual (p/n 99501-51010-33E).
DTC P0500 Vehicle Speed Sensor (VSS) malfunction.

CAUSE:
Additional Information.

CORRECTION:
Please make the indicated corrections as listed in this bulletin.

REVISION:

^ Correction in part number for service manual.

^ Correction in "DTC DETECTING CONDITION" specifications.

^ Additional page corrections in the service manual.

** Addition:
^ Correction to DTC number. **

This bulletin is to inform you of the amendment of the DTC P0500 Vehicle Speed Sensor diagnostic and inspection procedures described on p.6-111, p.6-112, p.6-15, and p. 6E-18 in the 1996 Swift Supplementary Service Manual (p/n 99501-51G10-33E). Please make the indicated corrections in your applicable service manual as listed in this bulletin.

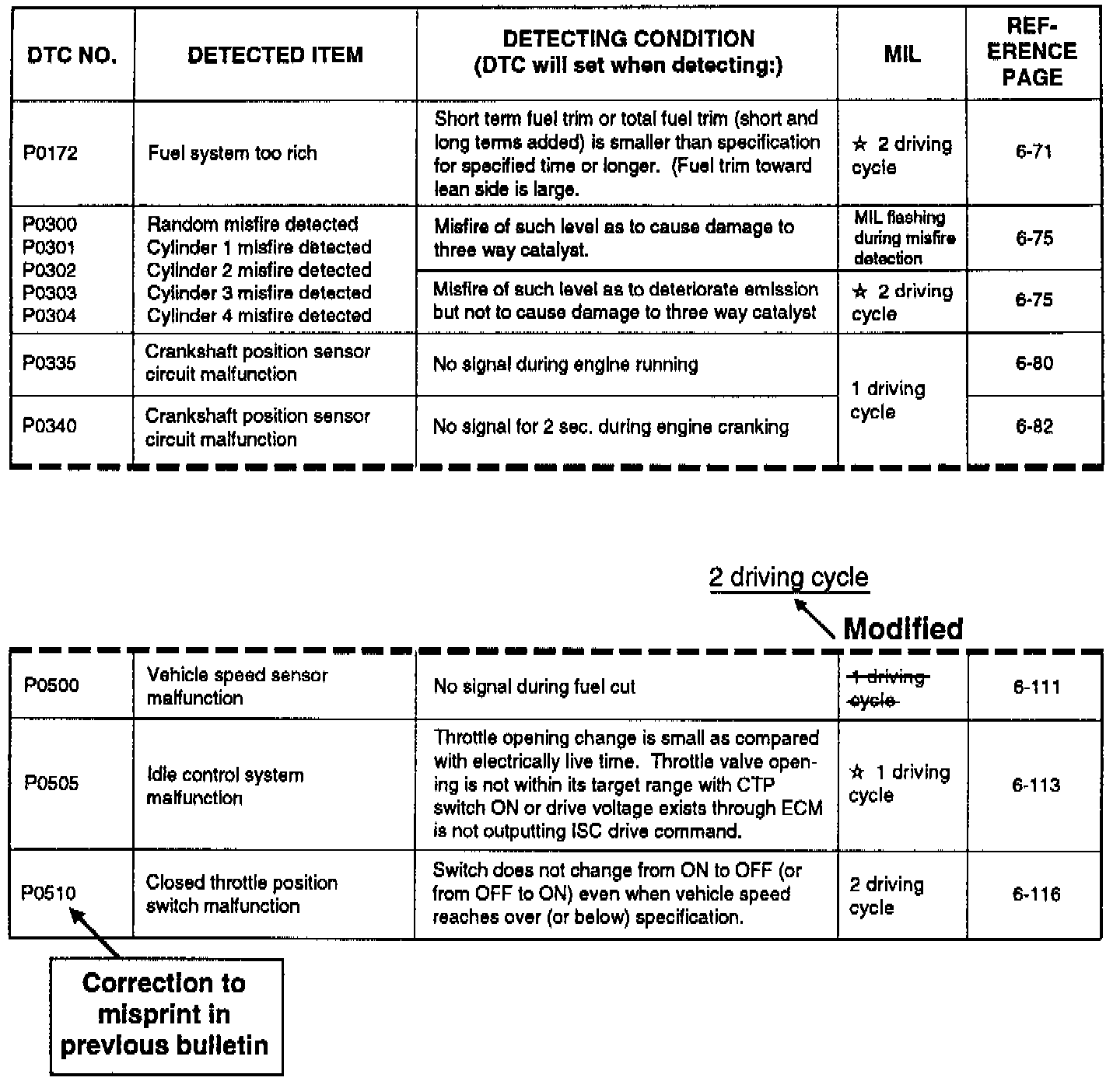

ENGINE DIAGNOSIS 6-15

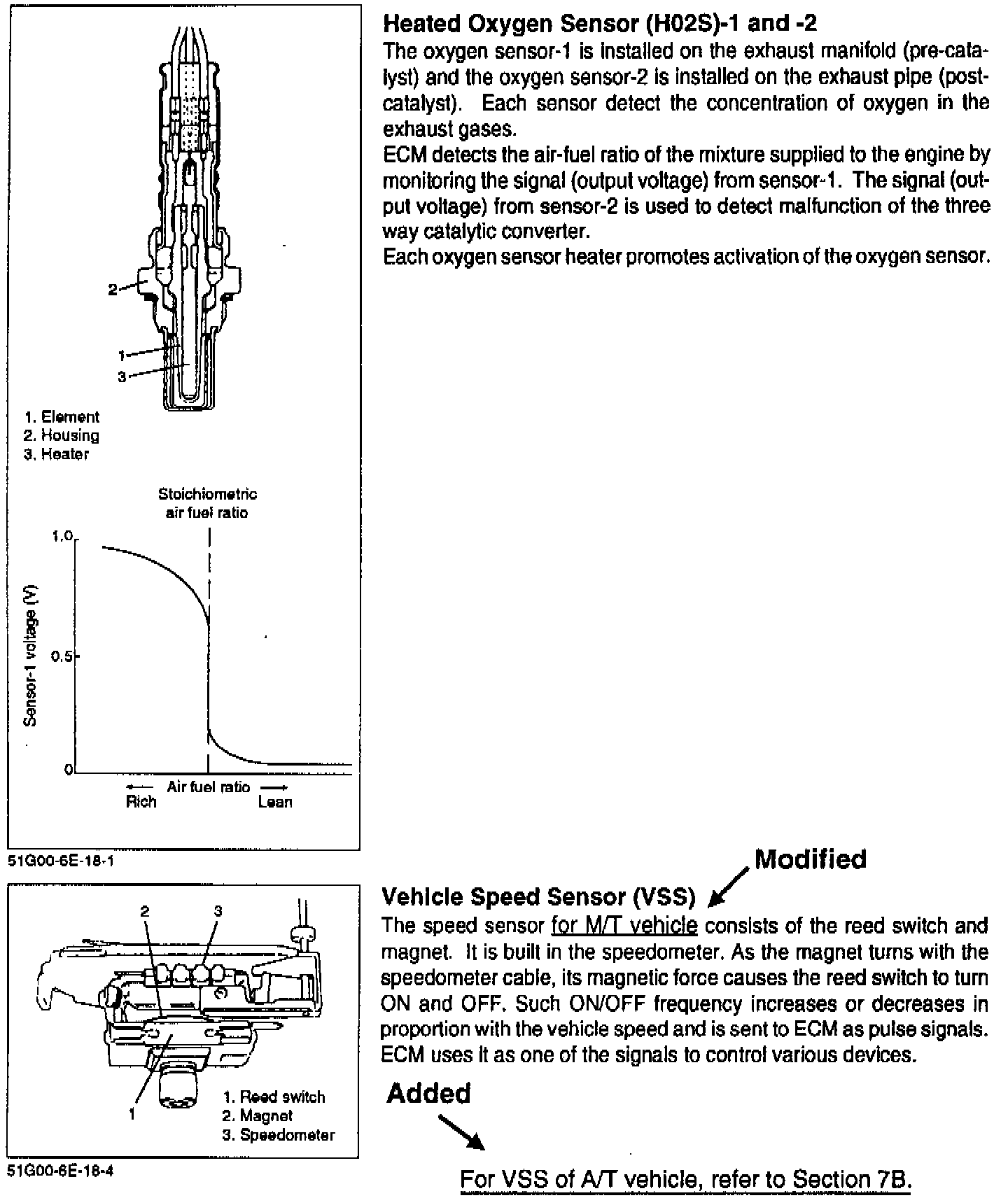

6E-18 ENGINE AND EMISSION CONTROL SYSTEM

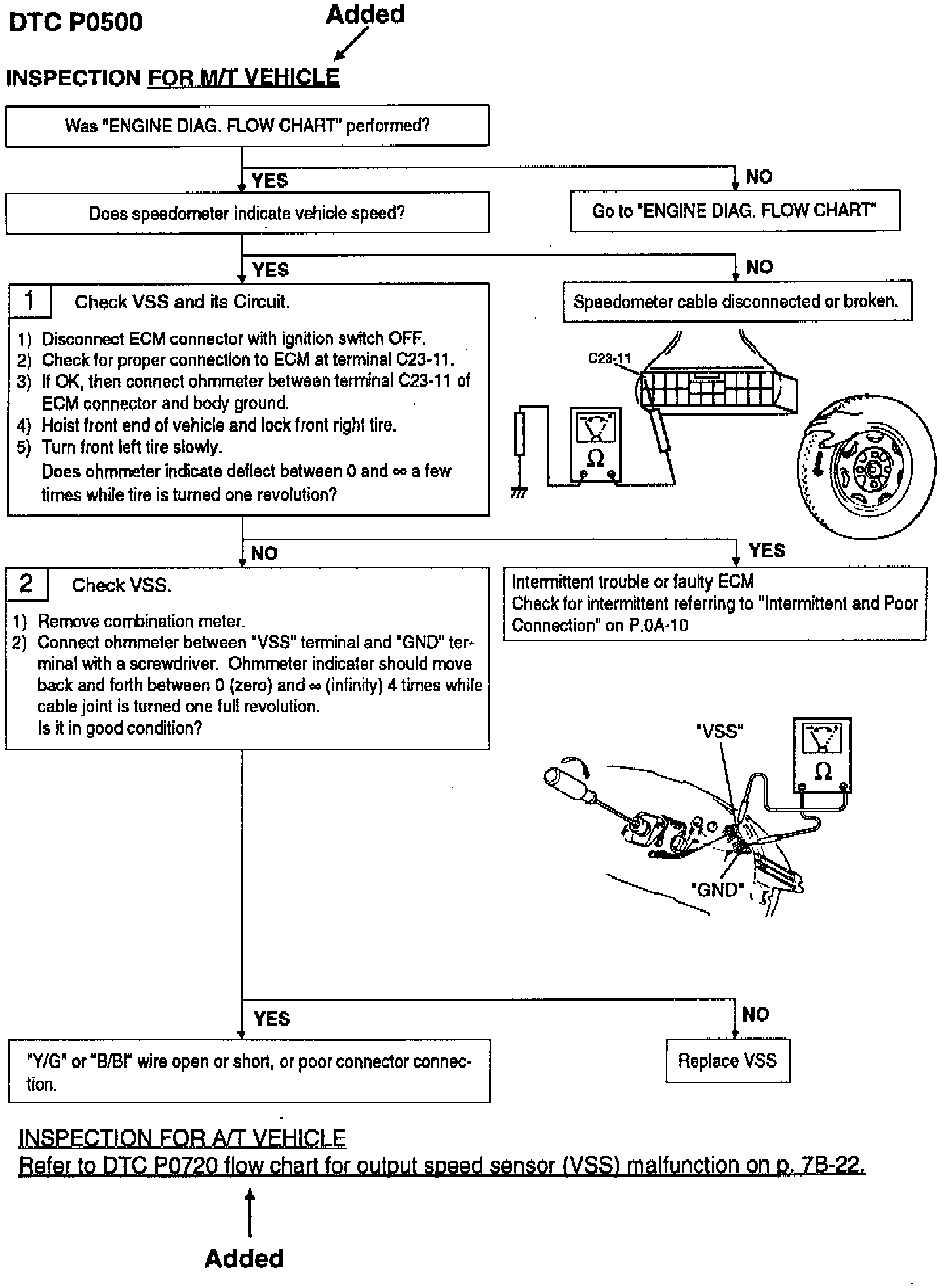

ENGINE MECHANICAL 6-111

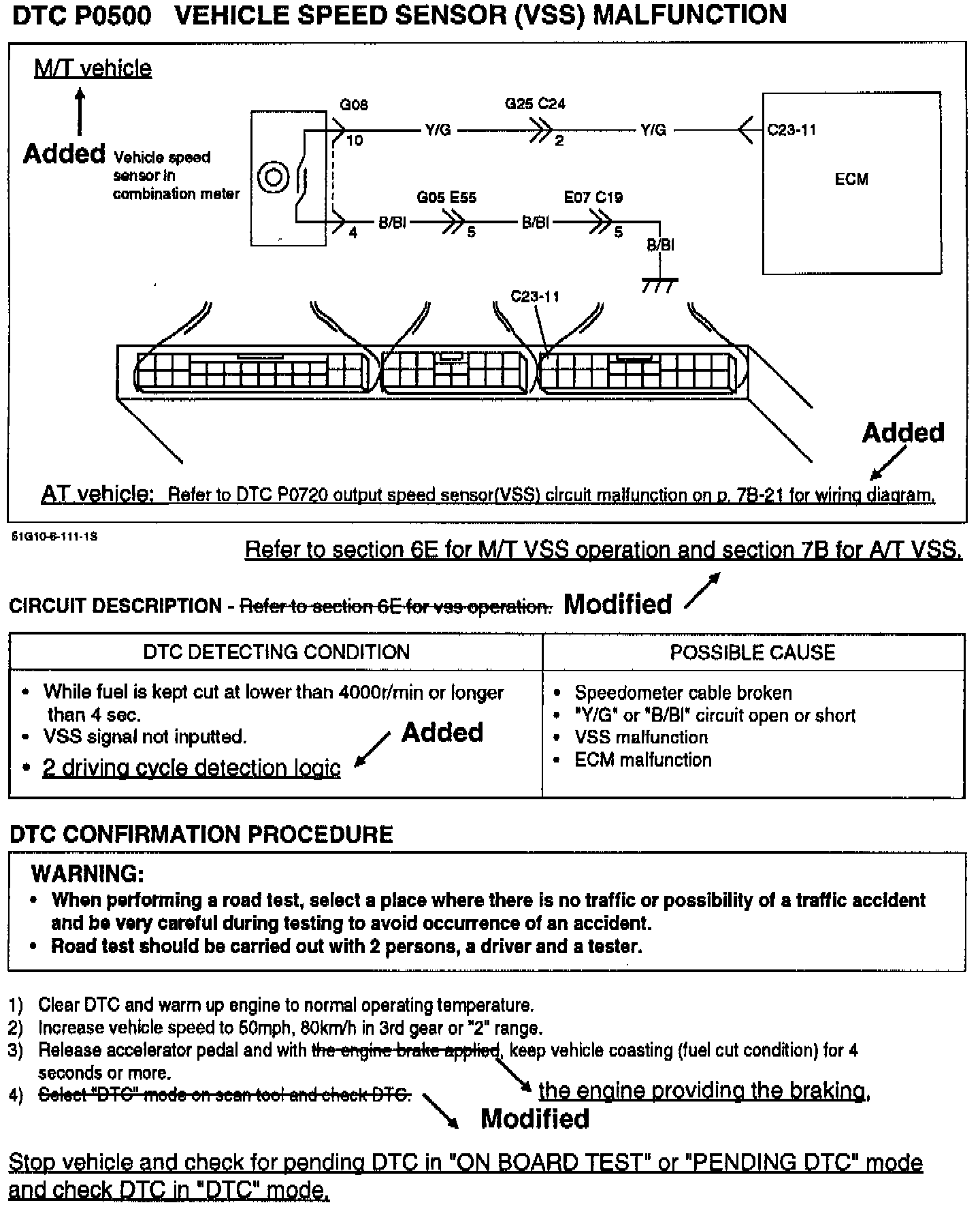

6-112 ENGINE MECHANICAL
