Connector Indication Diagrams

Indication Of Connectors (Part 1 Of 2):

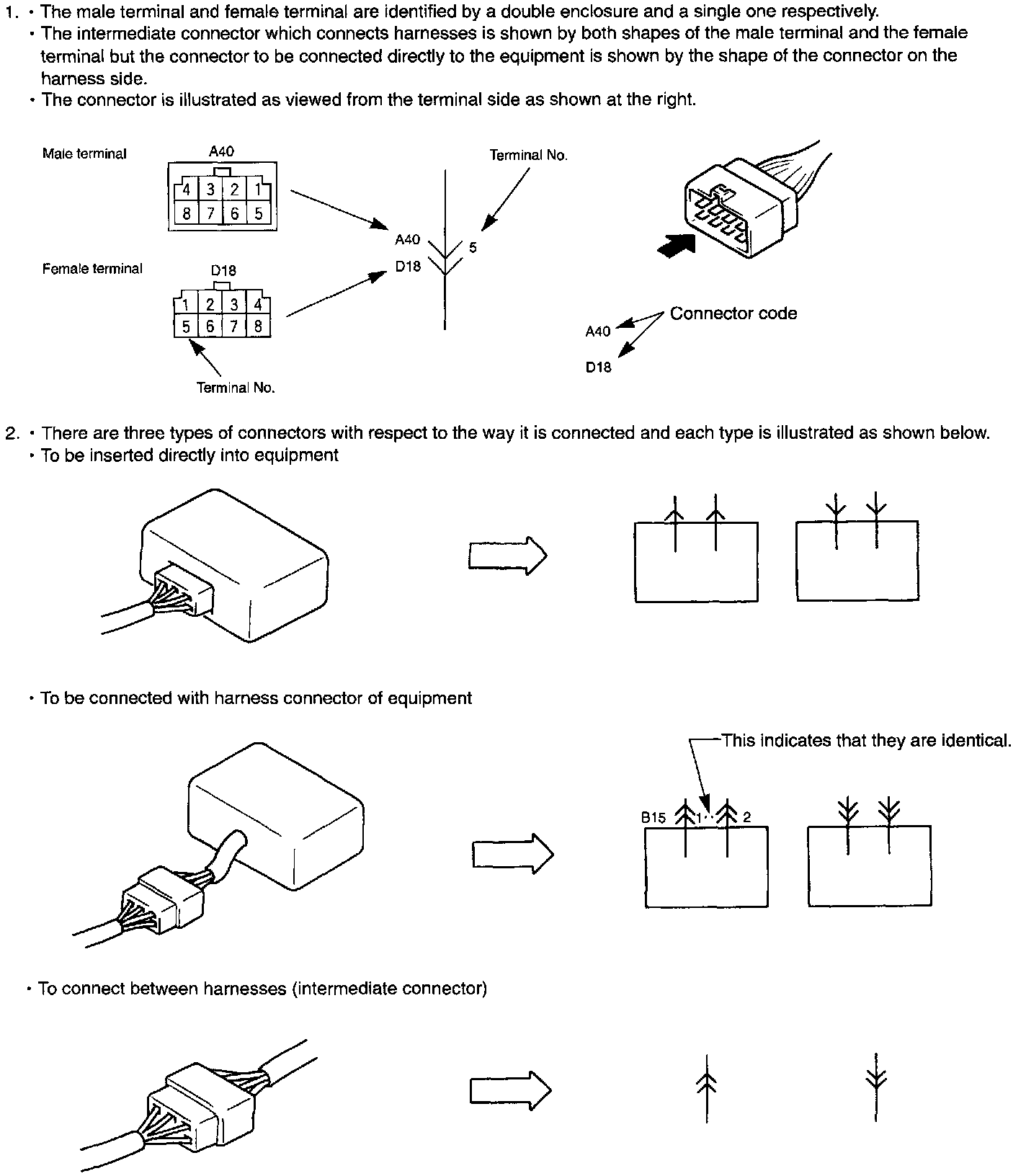

The connectors are indicated as shown in the image in System Circuit6 Diagram. For the shape and pin arrangement of each connector used, see the List Of Connectors. Described in the image are how they are indicated and how to read them.
