System Circuit Diagram

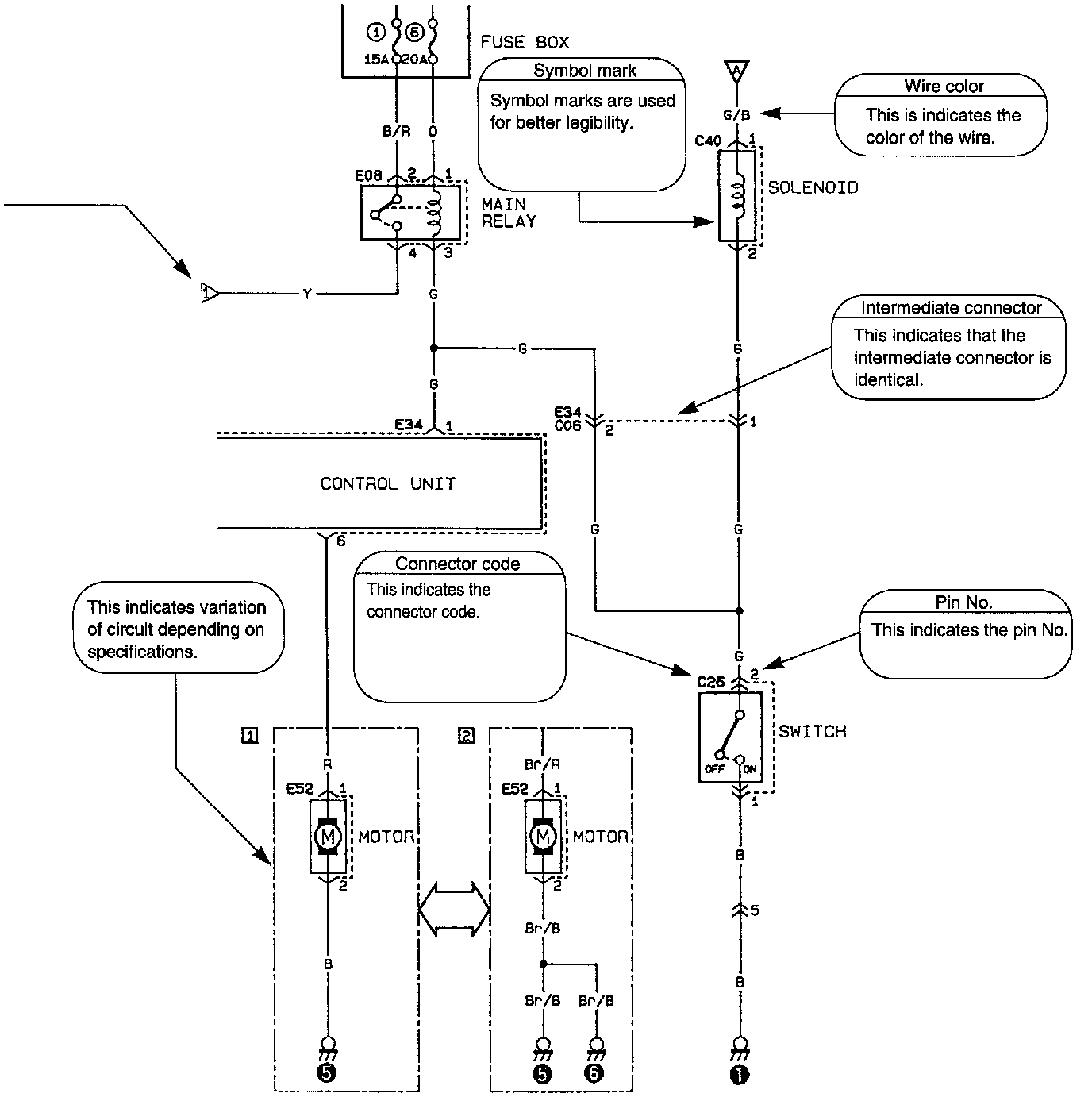

System Circuit Diagram (Part 1 Of 2):

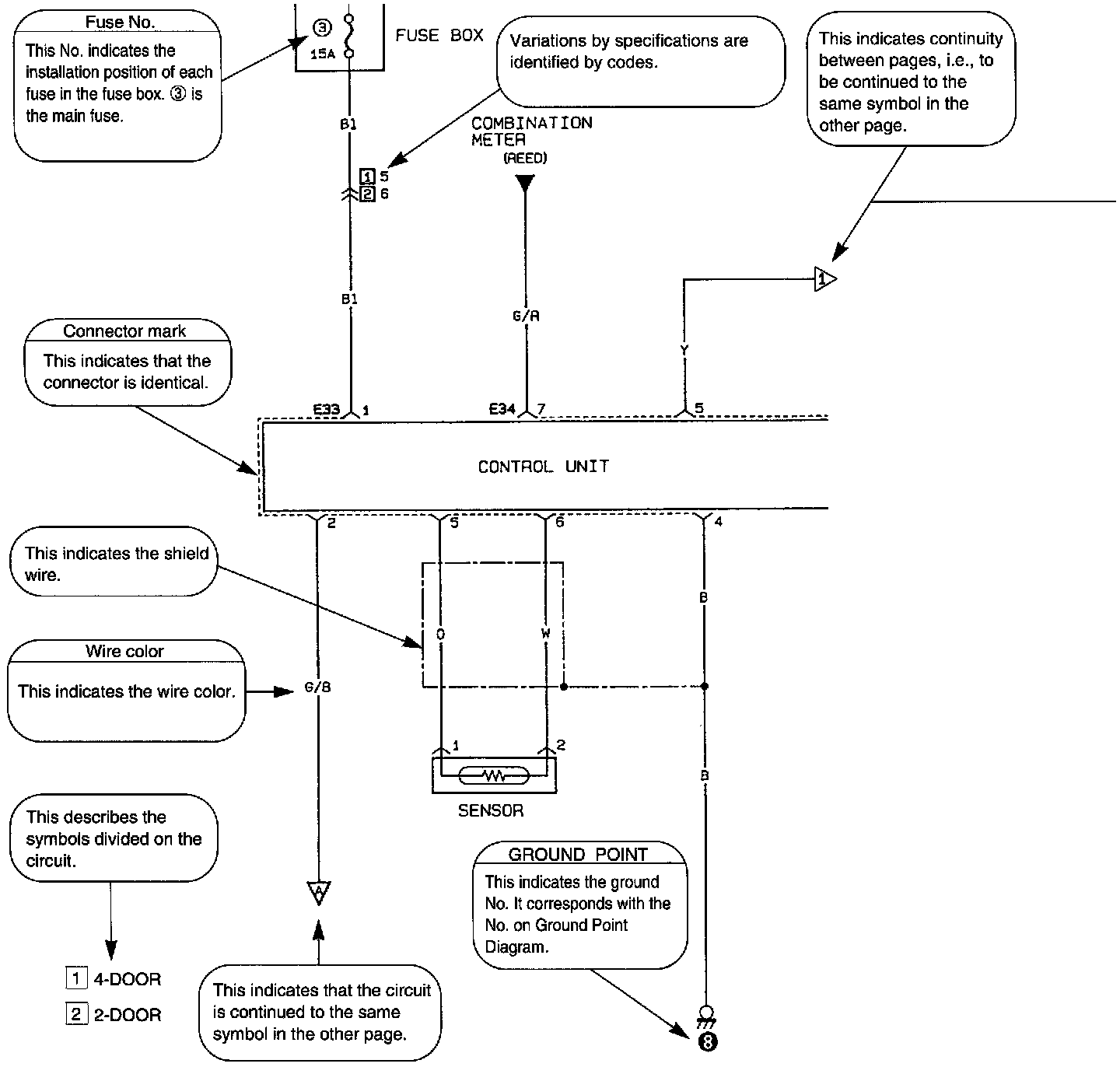

System Circuit Diagram (Part 2 Of 2):

The circuit diagram of each system shows electric circuit from the main fuse, fuse box or the ignition switch (at the top in the diagram) to the ground (at the bottom) so that the circuit can be followed easily when performing inspection and service work. For utilization of this diagram with Connector Layout Diagram or List of Connectors (shape of connectors/pin arrangement), see the Connector Indication Diagram.
