Installation Position of Single Unit Parts

Installation Position Of Single Unit Parts:

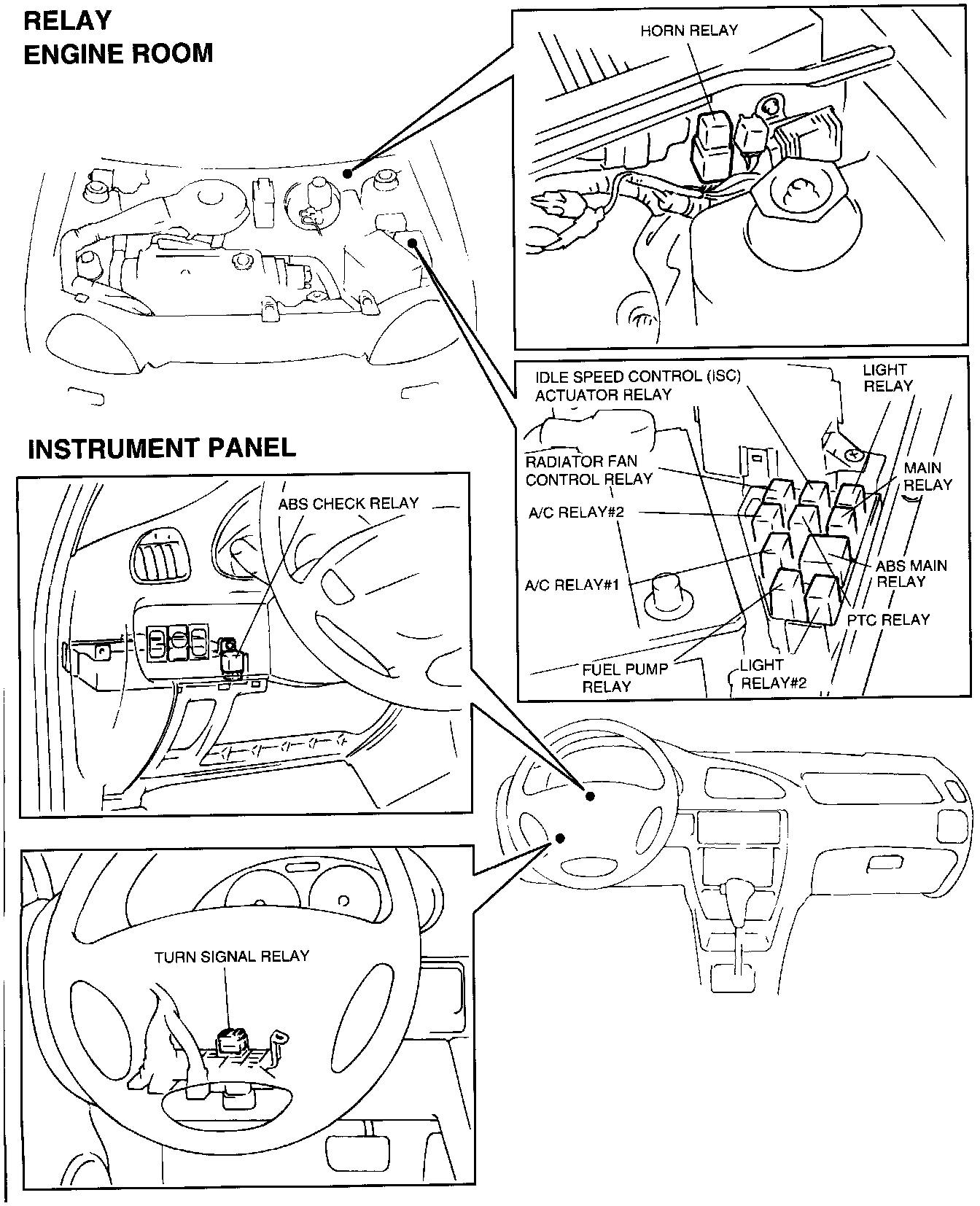

The diagrams in Installation Position of Single Unit Parts shows installation position of fuse, relay and control units used in this vehicle. They are illustrated in the image.
