Amendment Of Supplementary Manual - DTC P0500 (TS 4-23 06076(R))
Publication date: 1996-06-07Reference number: TS 4-23 06076(R)
Supersedes refnos: TS 4-23 04126(R)
AMENDMENT OF SUPPLEMENTARY MANUAL - DTC P0500
TECHNICAL SERVICE BULLETIN
Reference Number(s): TS 4-23 04126(R), TS 4-23 06076(R), Date of Issue:
June 7, 1996
Superceded Bulletin(s): TS 4-23 04126(R), Date of Issue: April 12, 1996
Superceded Bulletin(s): TS 4-23 04126(R), Date of Issue: April 12, 1996
AMENDMENT OF 1996 SWIFT SUPPLEMENTARY SERVICE MANUAL
Model(s): 1996 Suzuki Swift
Section Title: Engine
Division: Automotive
Category: Technical
Bulletin No.: TS 4-23 06076(R)
Date: June 7, 1996
NOTE:
This bulletin supersedes Technical Bulletin number TS 4-23 04126(R) dated April 12, 1996.
CONDITION
Correction in Swift Supplementary Service Manual (p/n 99501-51G10-33E). DTC P0500 Vehicle Speed Sensor (VSS) malfunction.
CAUSE
Additional information.
CORRECTION
Please make the indicated corrections as listed in this bulletin.
- Correction in part number for service manual.
- Correction in "DTC DETECTING CONDITION" specifications.
- Additional page corrections in the service manual.
- Addition: Correction to DTC number on page 2.

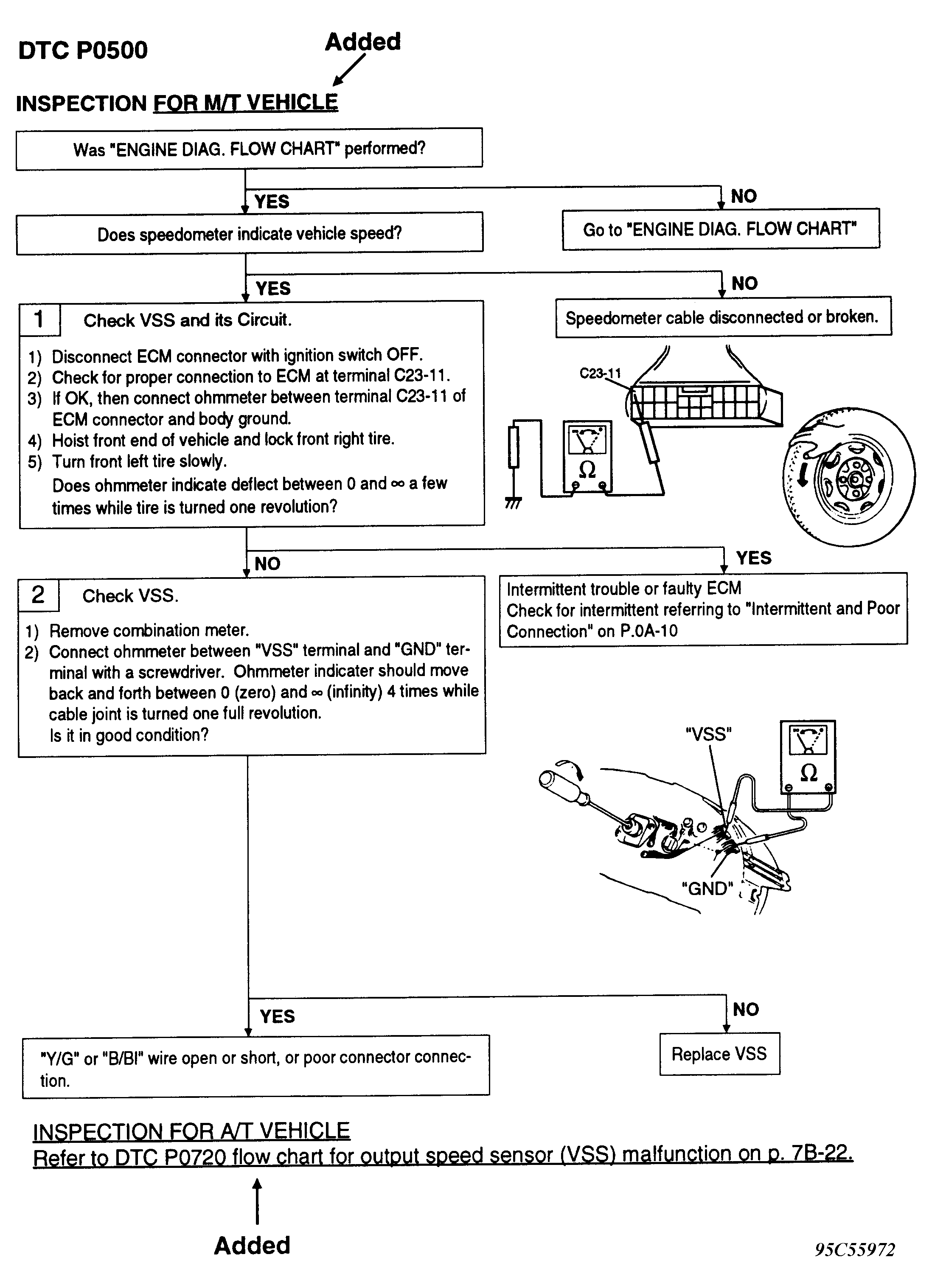

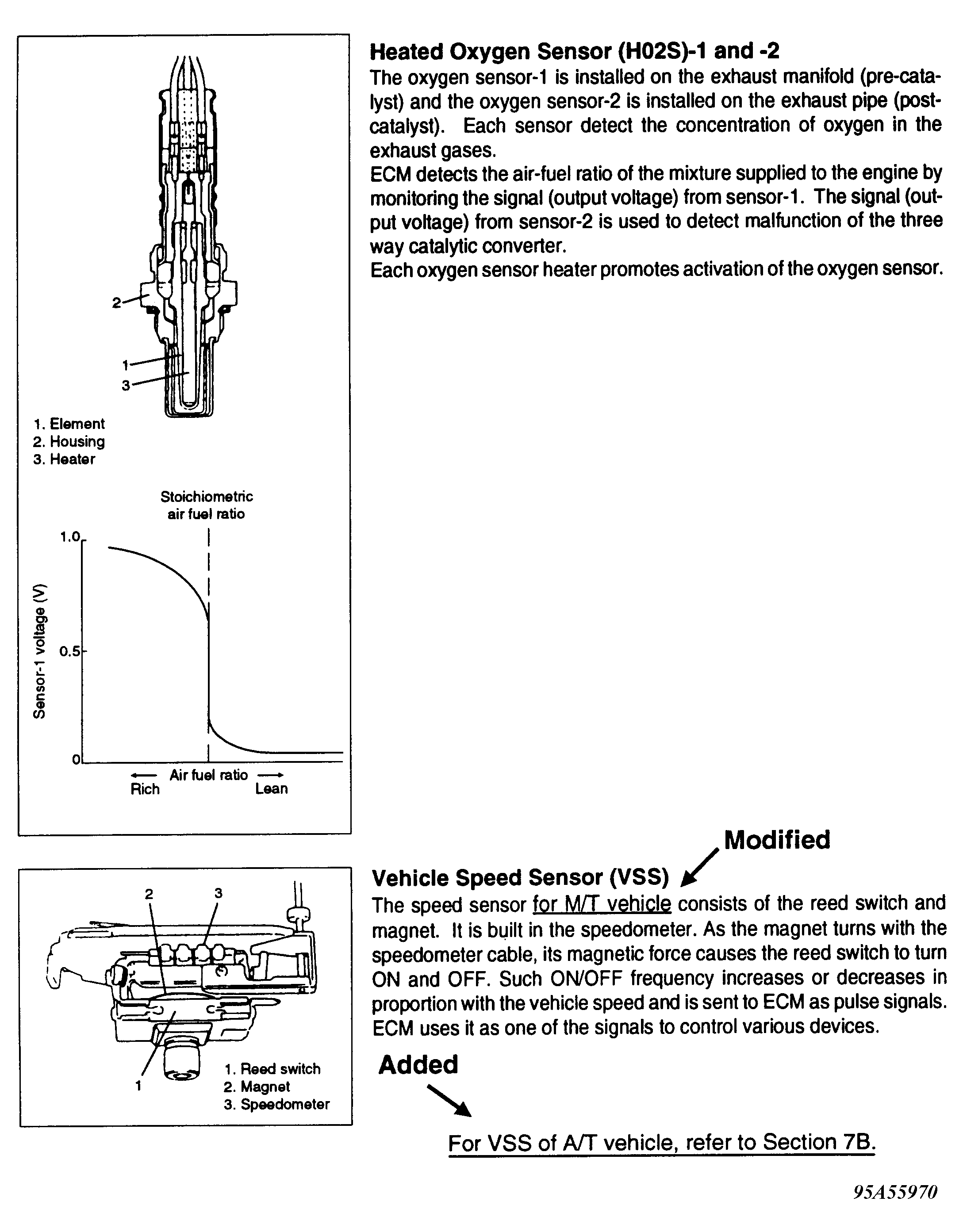

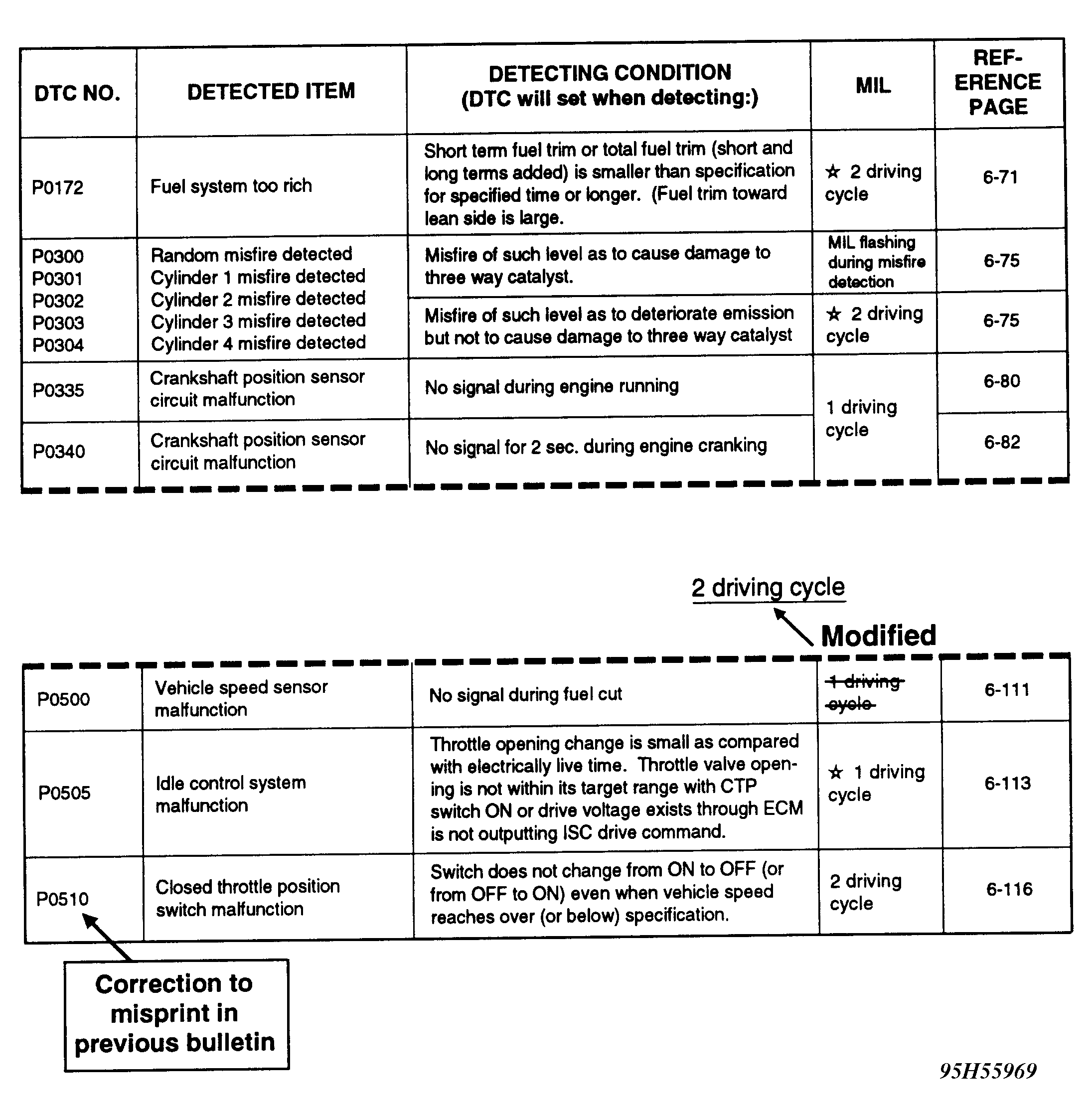

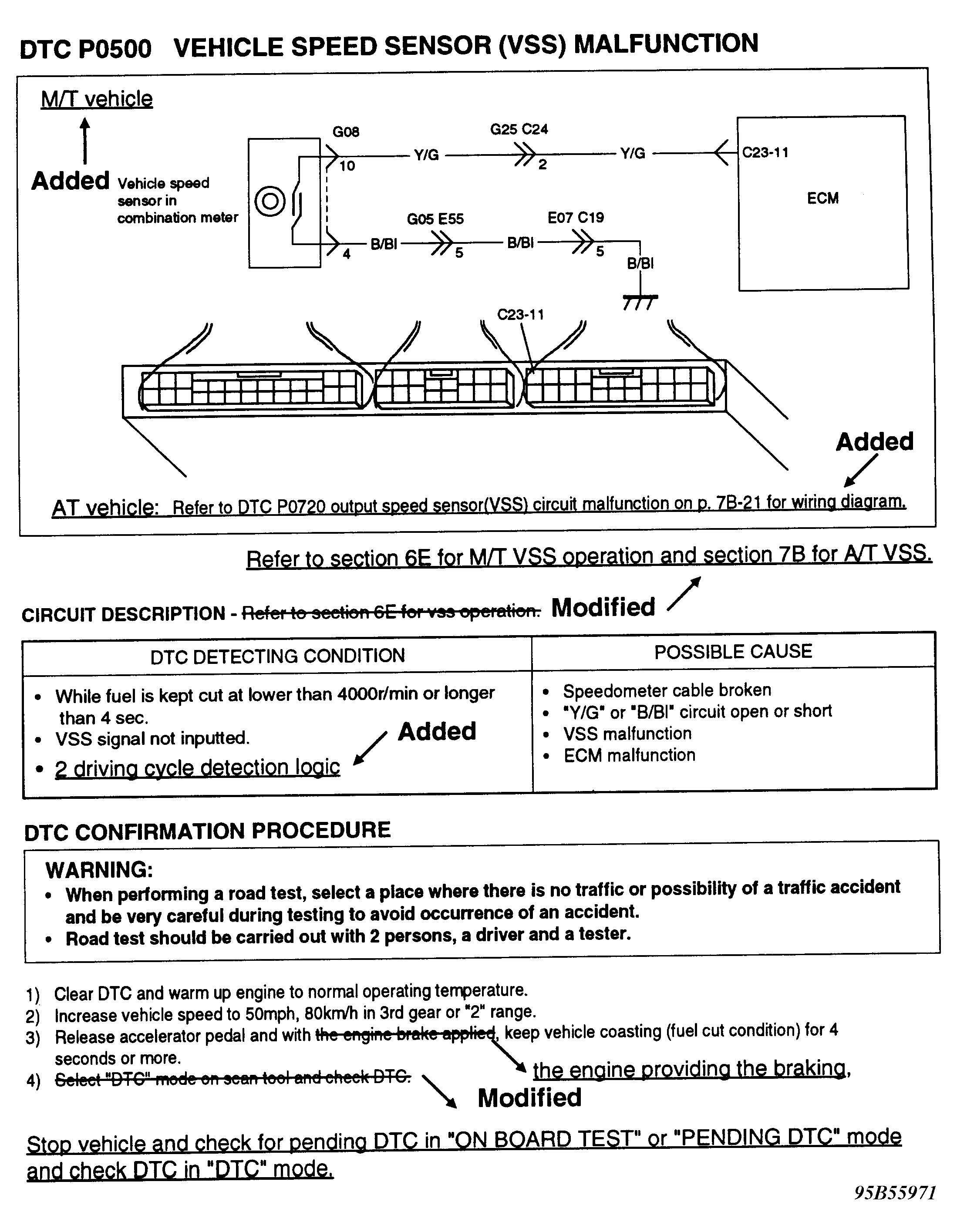

This bulletin is to inform you of the amendment of the DTC P0500 Vehicle Speed Sensor diagnostic and inspection procedures described on page 6-111, see Fig 3 , page 6-112, see Fig 4 , page 6-15, see Fig 1 , and page 6E-18, see Fig 2 , in the 1996 Swift Supplementary Service Manual (p/n 99501-51G10-33E). Please make the indicated corrections in your applicable service manual as listed in this bulletin.
