Service Manual Correction -DTC PO500 VSS Malfunction (TS 4-23 12215)

Publication date: 1995-12-21
Reference number: TS 4-23 12215

SERVICE MANUAL CORRECTION -DTC PO500 VSS MALFUNCTION

TECHNICAL SERVICE BULLETIN

Reference Number(s): TS 4-23 12215, Date of Issue: December 21, 1995

AMENDMENT OF l99t SWIFT SUPPLEMENTARY SERVICE MANUAL

Model(s): 1996 Suzuki Swift

Section: Engine

Bulletin No.: TSB No. TS4-23 12215

Date: December 21, 1995

NOTE: This is a Service Manual update.

CONDITION

Correction in Swift Service Manual (P/N 99501-51G10). DTC P0500 Vehicle Seed Sensor (VSS) malfunction.

CAUSE

Additional information.

CORRECTION

Please make the indicated corrections as listed in this bulletin.

This bulletin is to inform you of the amendment of the DTC P0500 Vehicle Speed Sensor diagnostic and inspection procedures described on pages 6-111 and 6-112 in the 1996 Swift Service Manual (P/N 99501-51G10). Please make the indicated corrections in your applicable service manual as listed in this bulletin. See Fig 1 and Fig 2 .

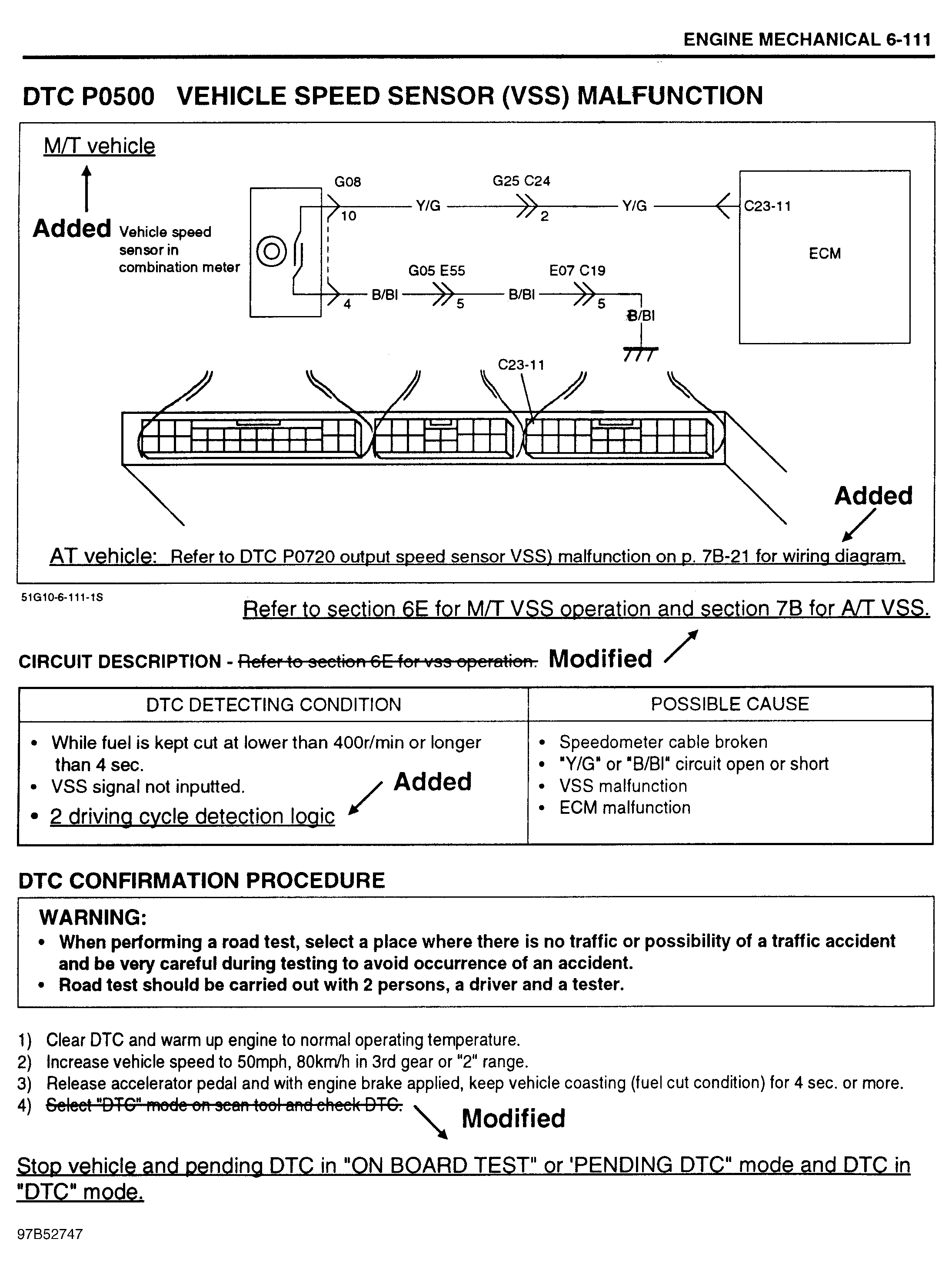

Fig 1: Page 6-111 Engine Mechanical - Revision

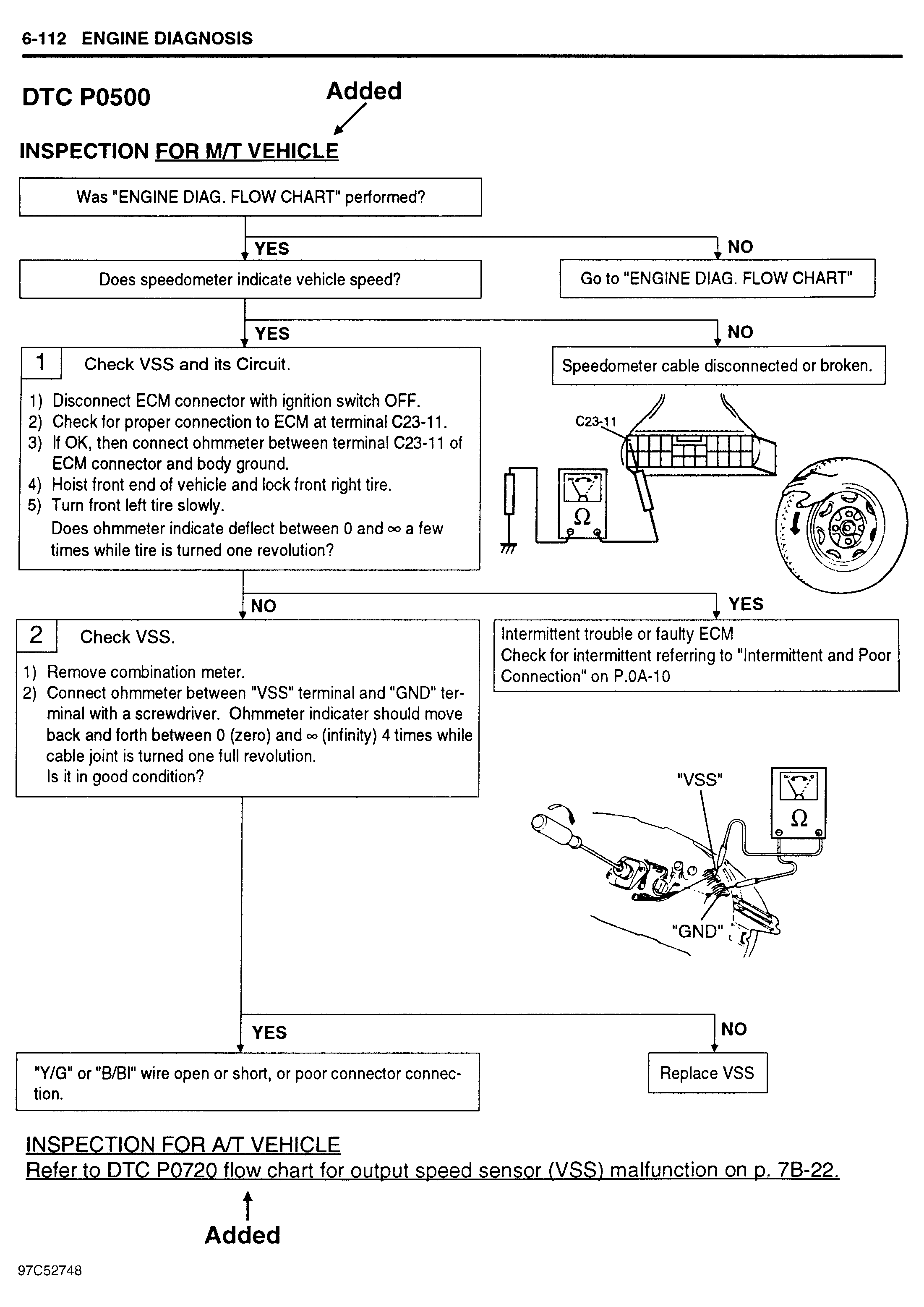

Fig 2: Page 6-112 Engine Diagnosis - Revision
