Home >> Suzuki >> 1996 >> Swift Automatic >> Repair and Diagnosis >> Brakes >> Traction Control >> Anti-Lock Brake System >> Circuit Tests >> Chart C - Abs (Amber) Indicator Off Constantly, No DTC'S Stored

April 5, 2026: LEMON Manuals is launched! Read the announcement.

Chart C - Abs (Amber) Indicator Off Constantly, No DTC'S Stored

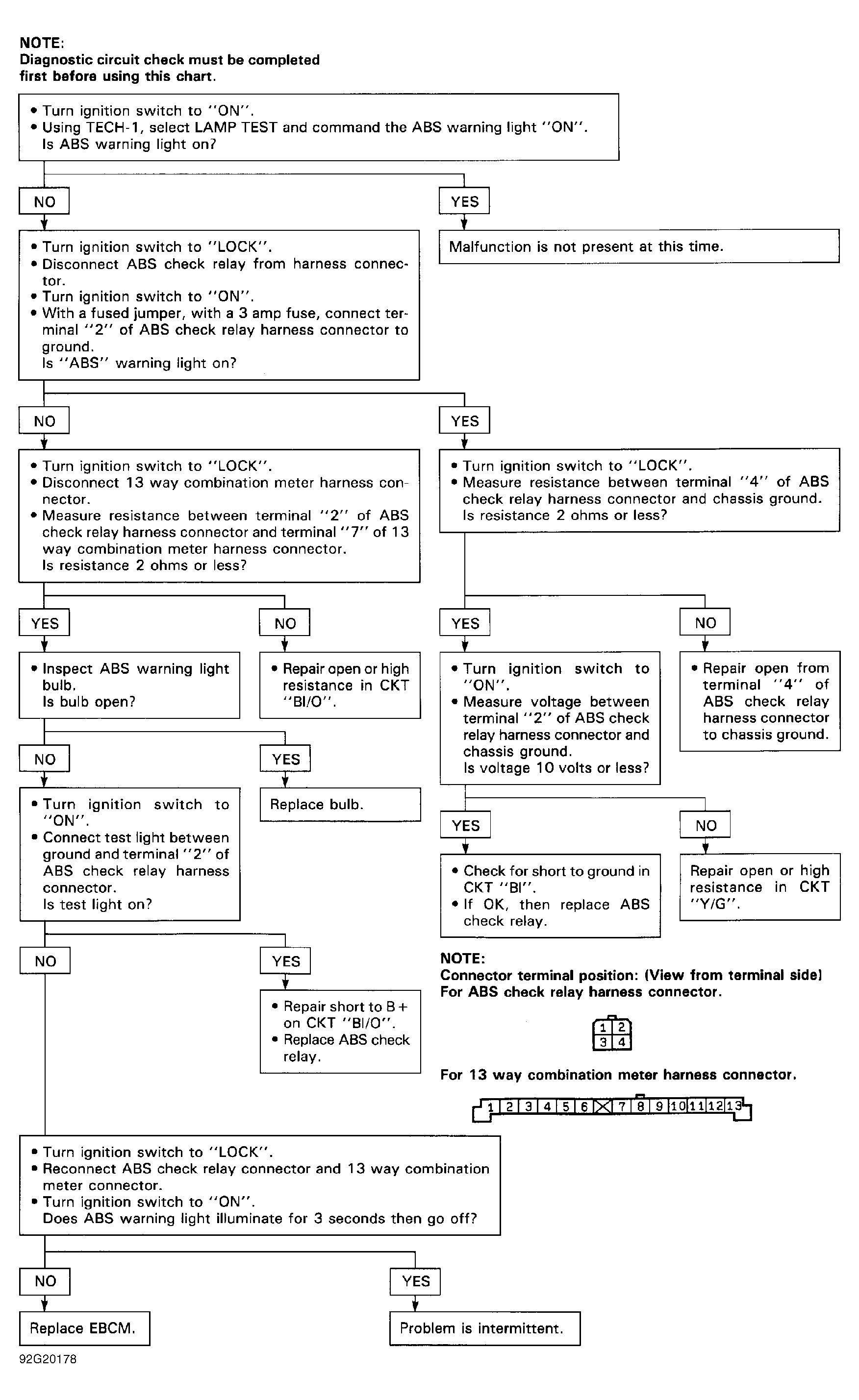

Fig 1: SYMPTOM CHART "C"

G96G20178
