Removal & Installation

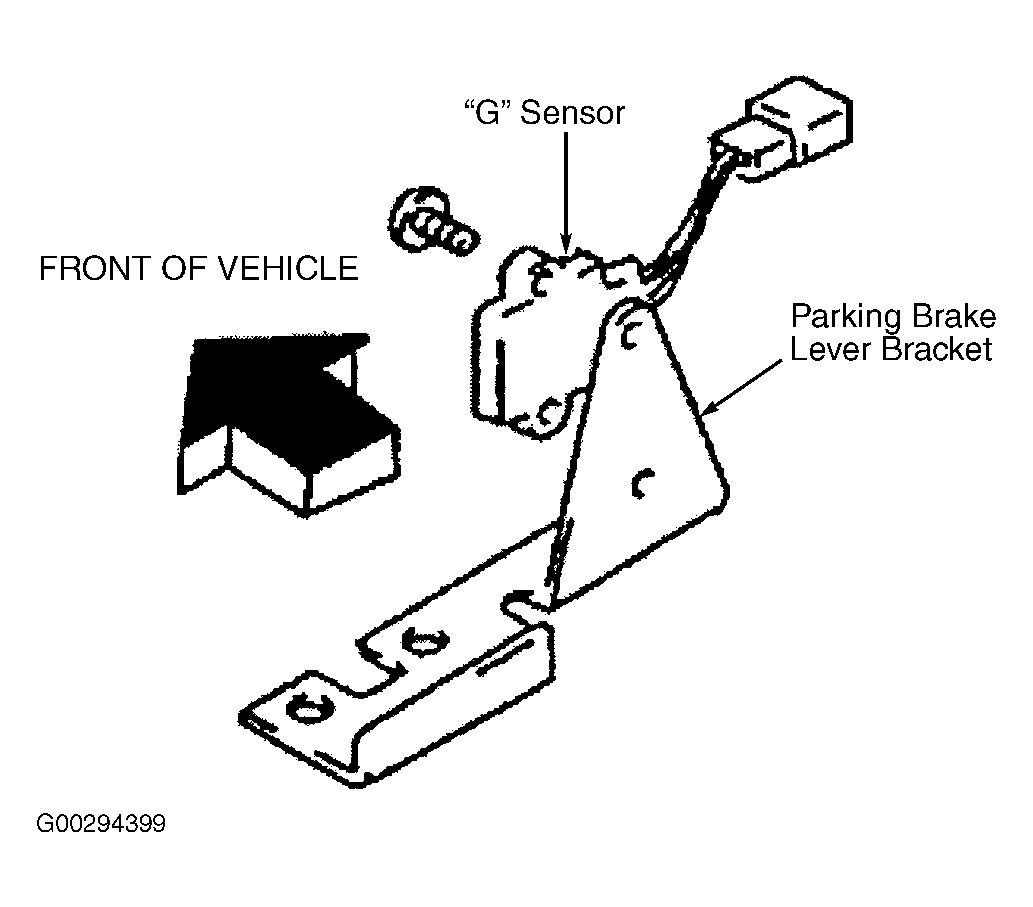

Turn ignition off and disconnect negative battery cable. Remove rear center console box. Disconnect "G" sensor harness connector. Remove retaining screw and sensor from parking brake lever bracket. DO NOT drop or shock sensor. To install, reverse removal procedure and install "G" sensor as shown. See Fig 1 .
