Diagnostic Flow Chart A-1 No TCC Lock-Up Control
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

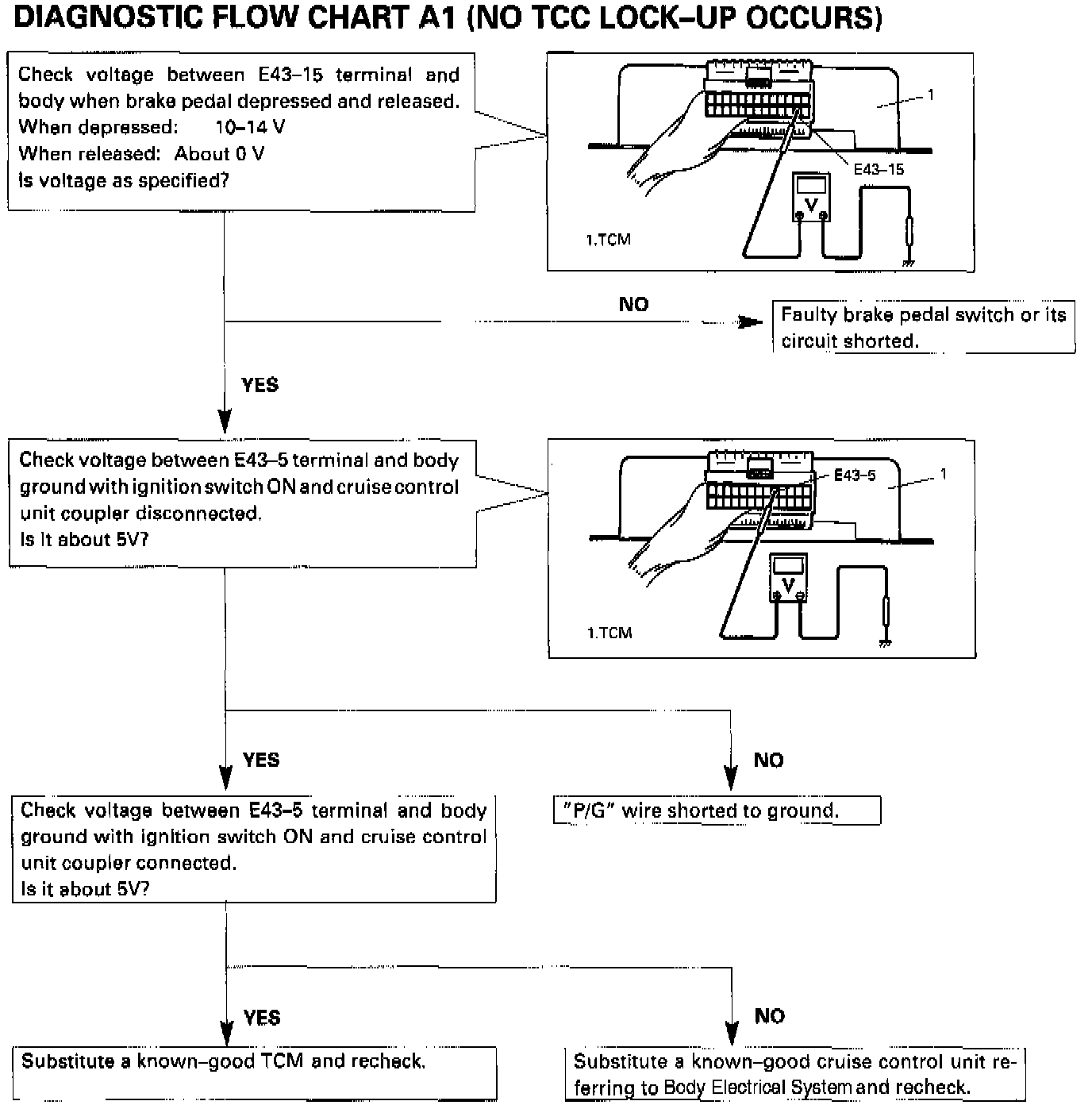

Diagnostic Flow Chart A-1 No TCC Lock-Up Control
