Pinout Values and Diagnostic Parameters






CM Connectors






E32-1/E32-2

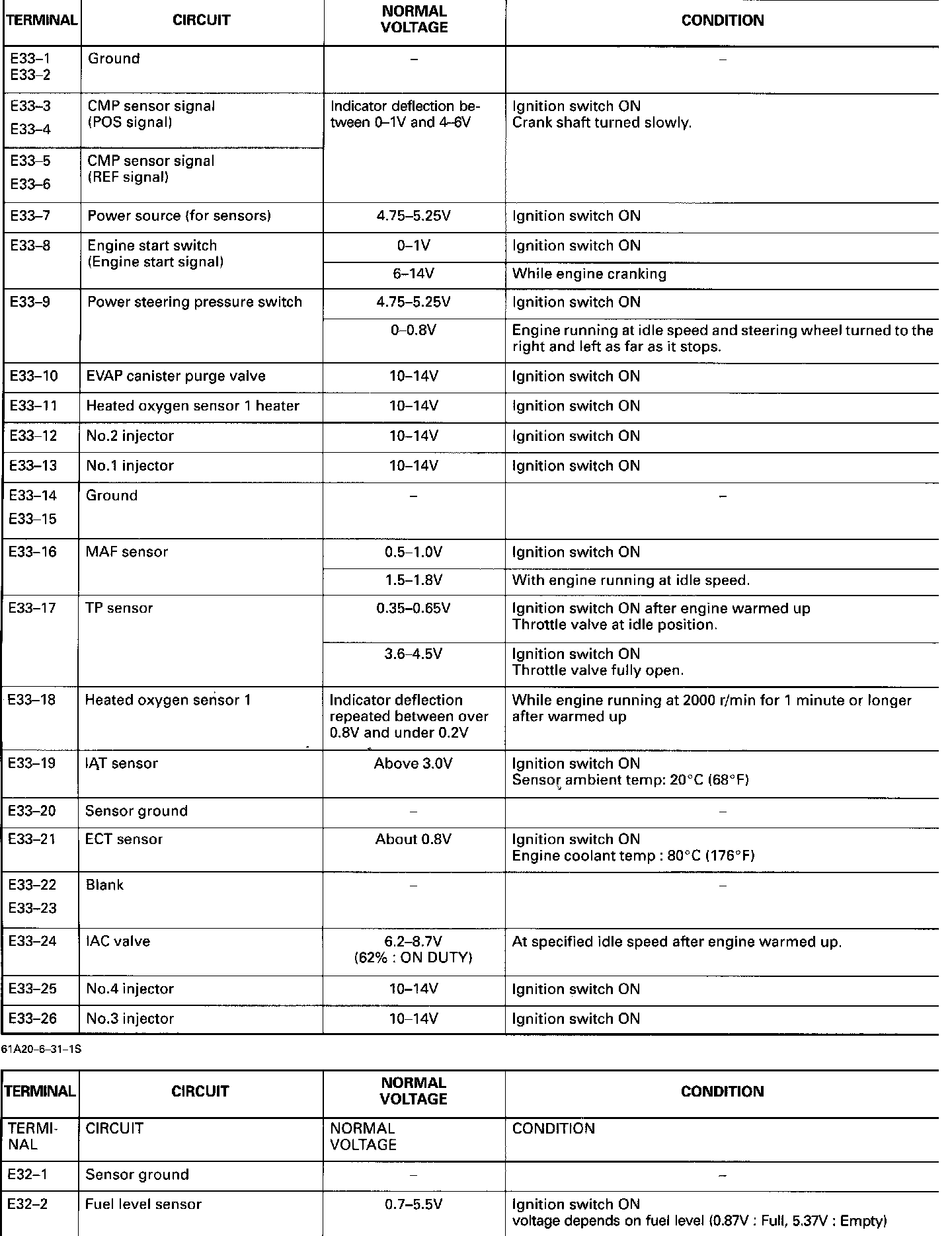

E33-1/E32-26

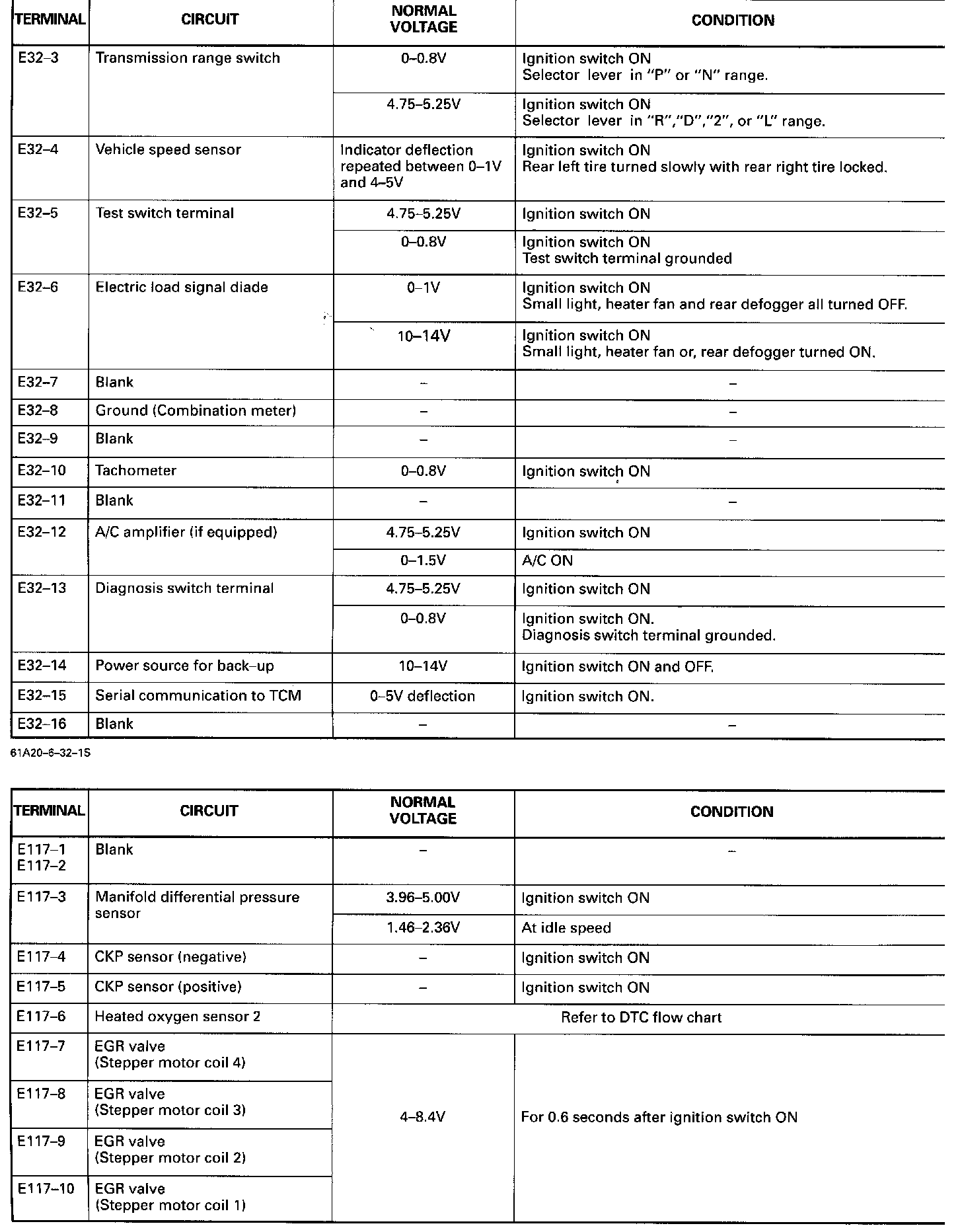

E32-3/E117-10






E17-11/E17-12

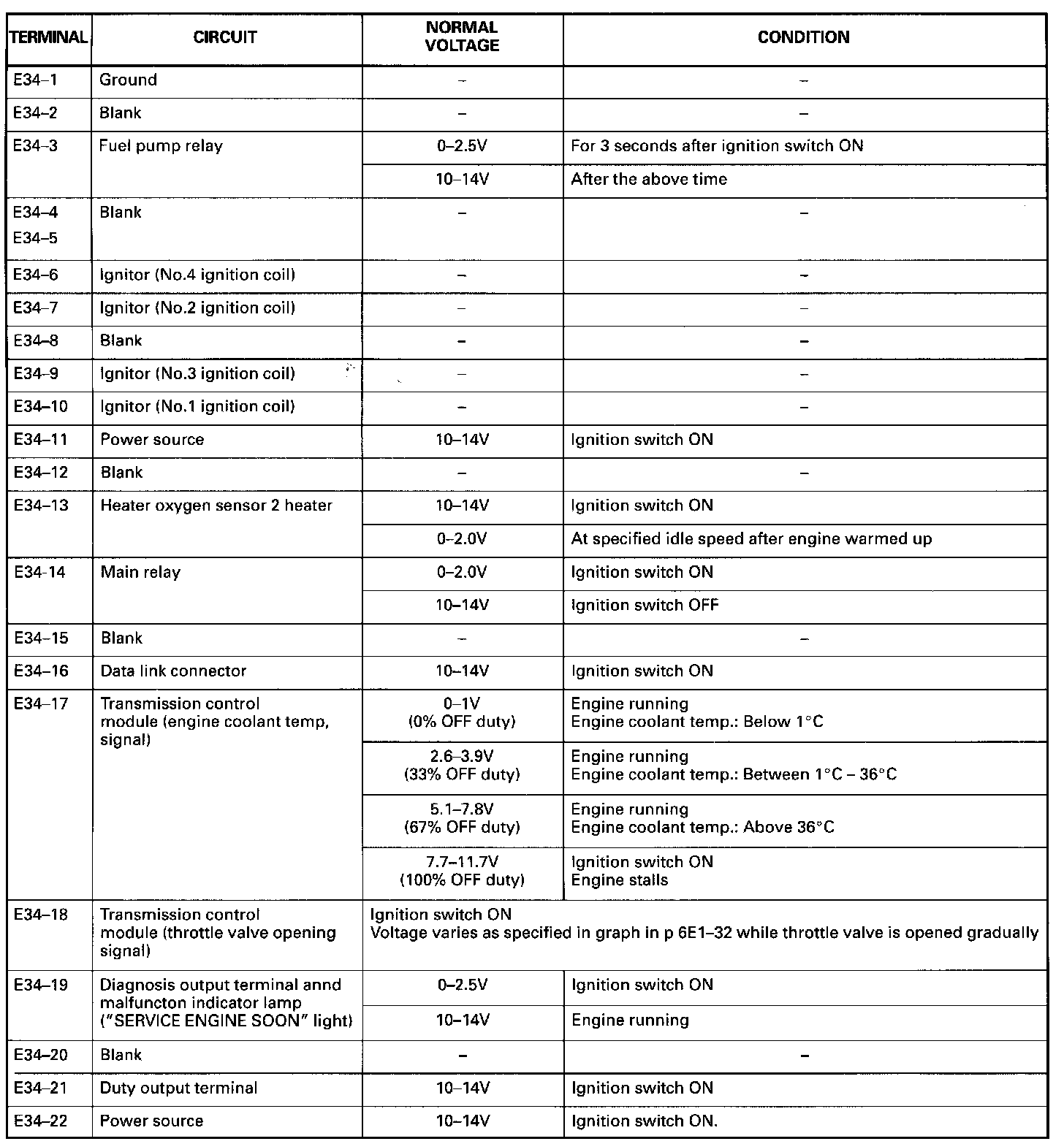

E34-1/E34-22

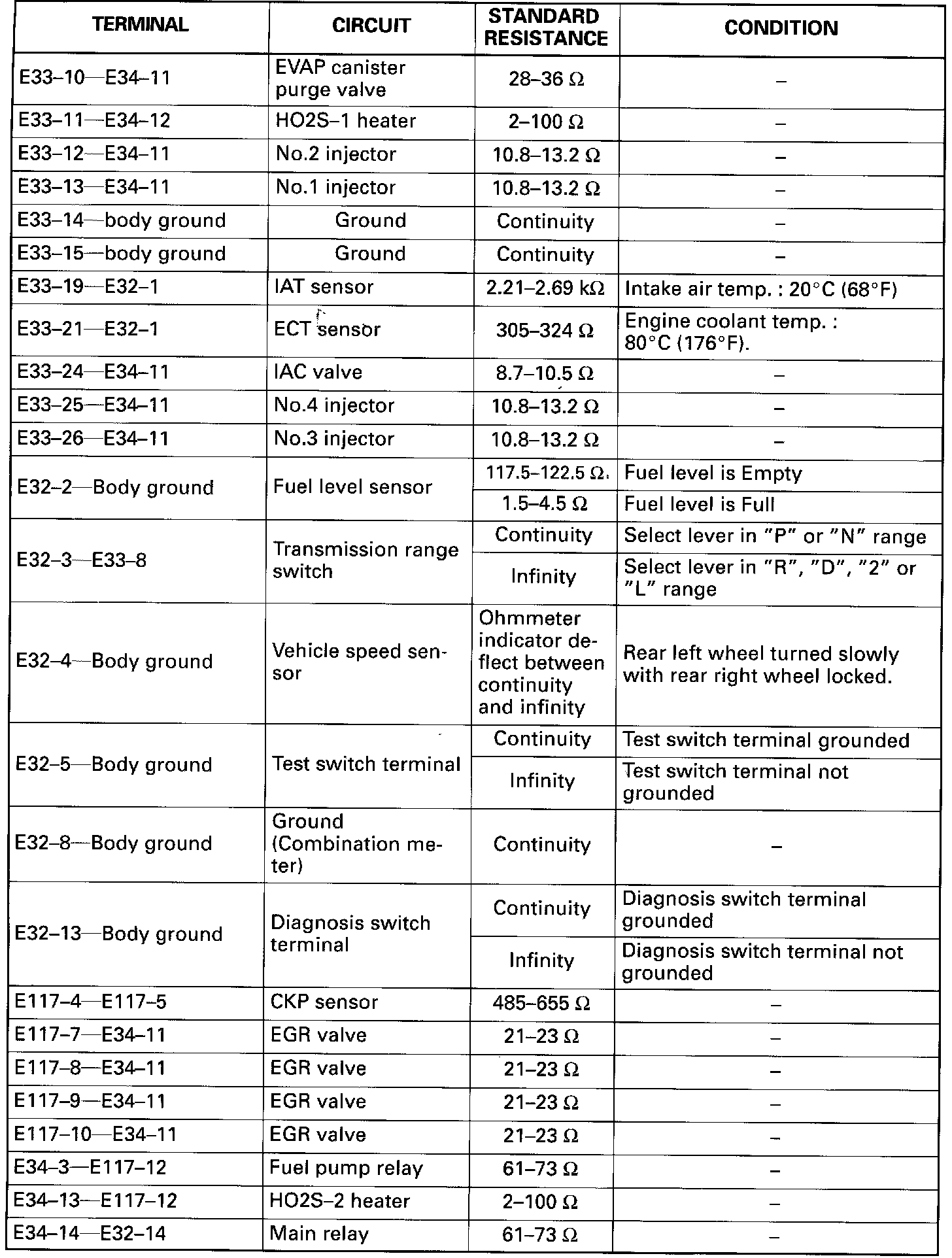

Resistance Specifications
