Engine Basic Check








This check is very important for troubleshooting when ECM has detected no DTC and no abnormality has been found in visual inspection.

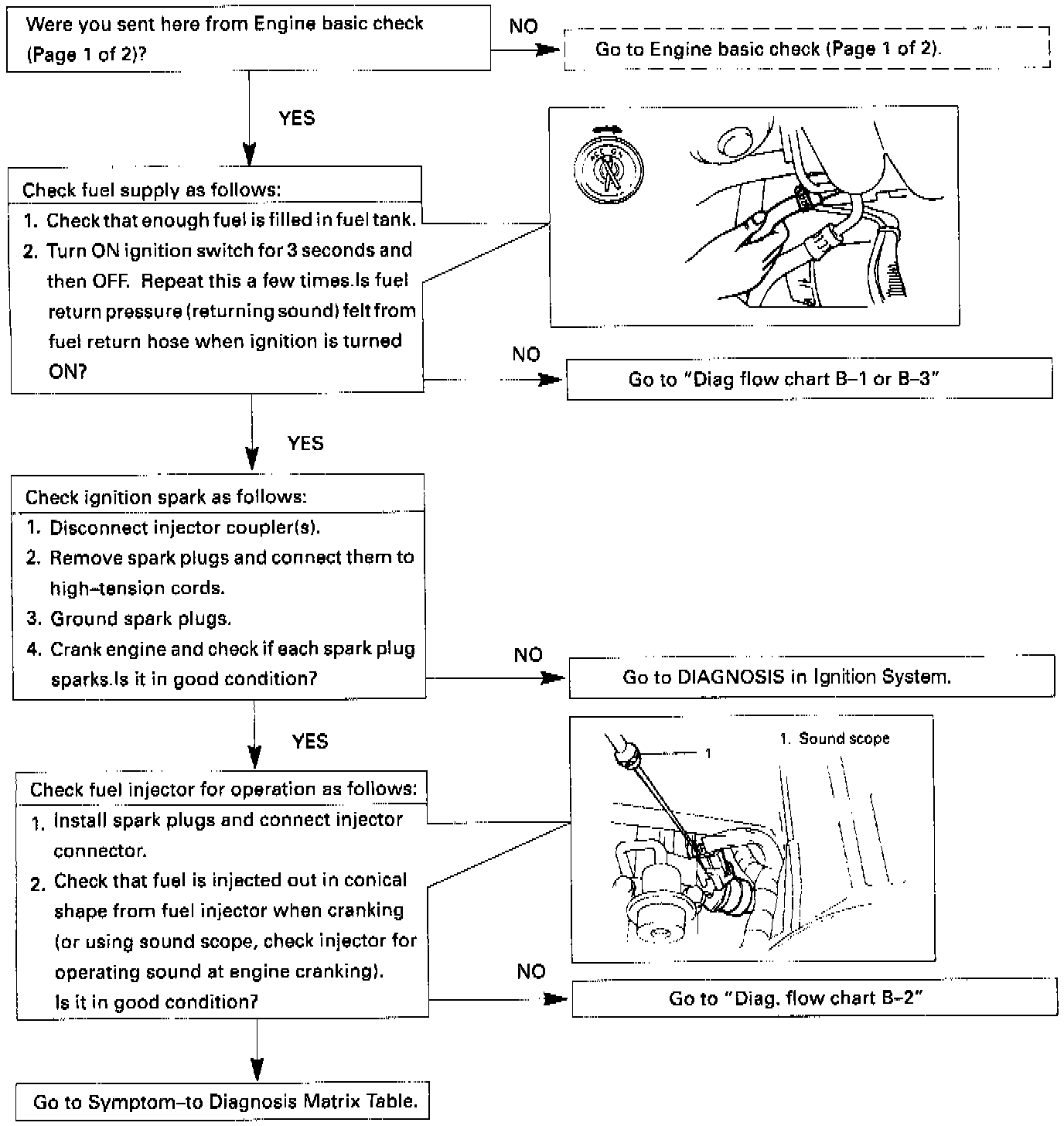

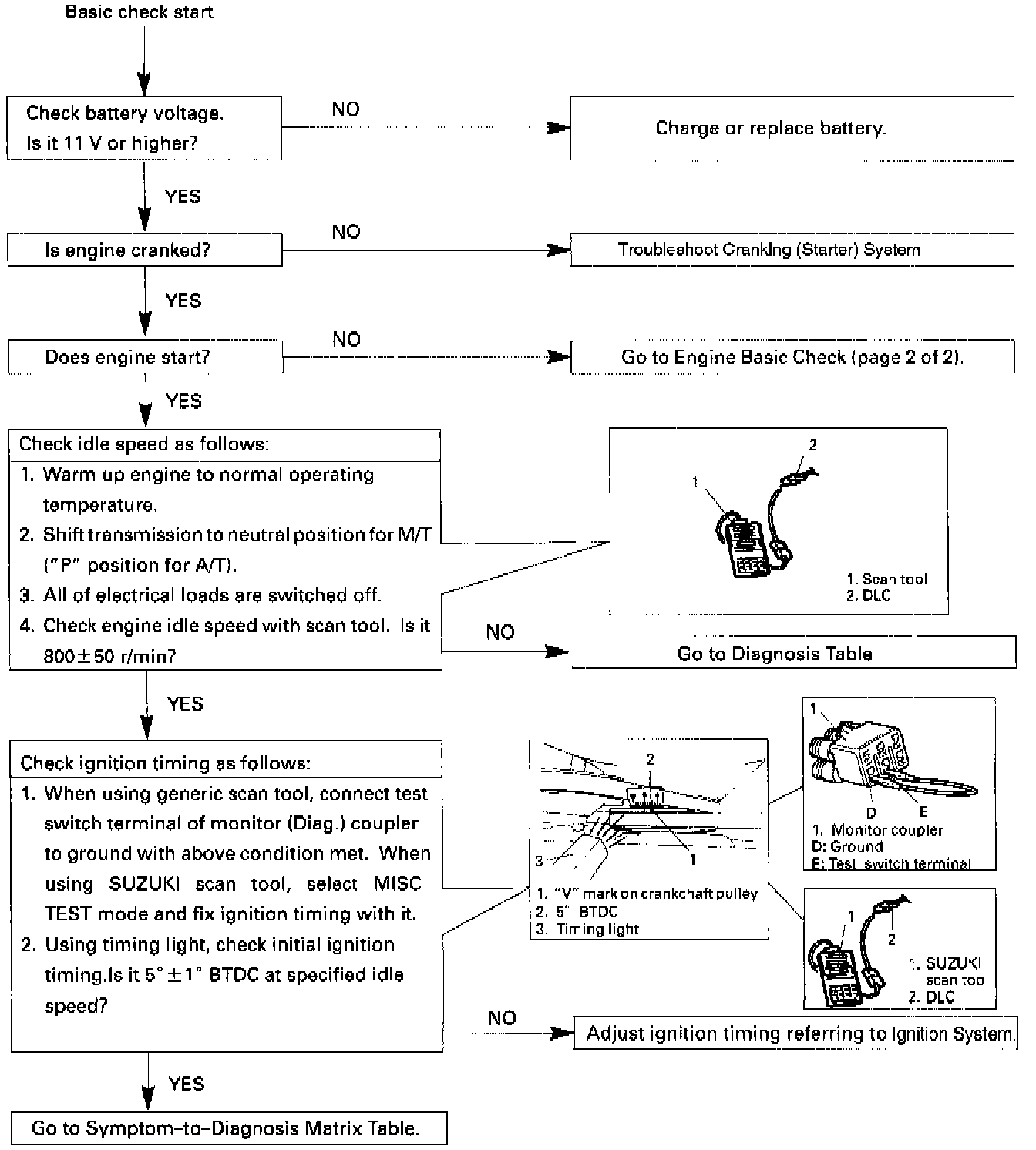

Follow the flow chart carefully.
