ABS - Modification to Control Module
TSB No. TS5-01 02096Section Title: Steering, Brakes, and Suspension
Division: Automotive
Category: Technical
SUBJECT:
MODIFICATION OF ANTILOCK BRAKE SYSTEM (ABS) CONTROL MODULE
MODEL:
ALL
YEAR:
NOVEMBER 1995 PRODUCTION AND LATER.
CONDITION:
Modification of ABS controller.
CAUSE:
Factory modification to standardize control modules.
CORRECTION:
When replacing the ABS controller, please use the information as listed in this bulletin.

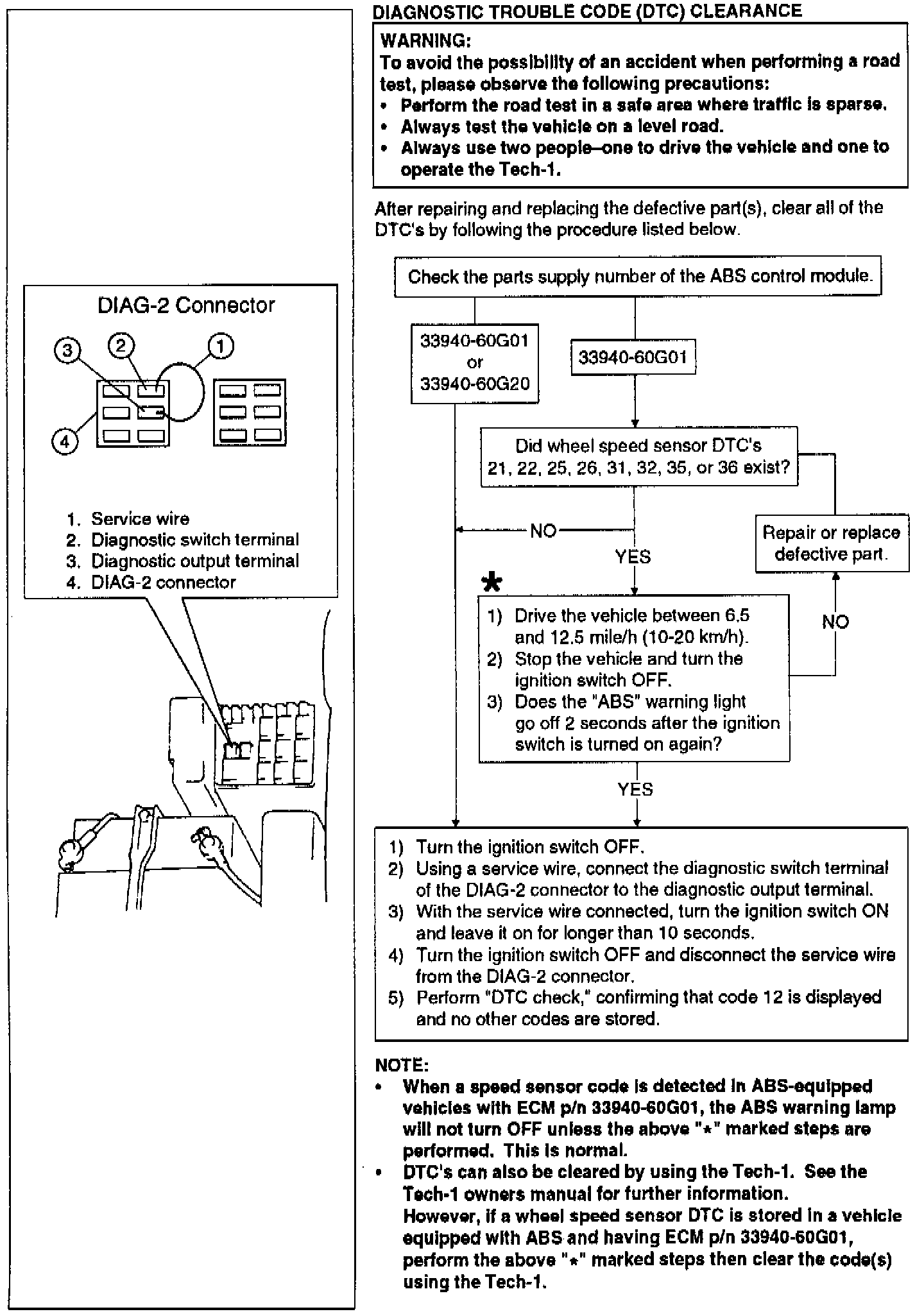

This bulletin is to inform you of the modification of the ABS control module which has been carried out since November 1995 production. This modification was made to standardize ABS control modules. The late type controller will require a new procedure to clear the Diagnostic Trouble Codes (DTC). Please see this bulletin for an explanation of this procedure.
EFFECTIVE VIN: JS2GB31S_T5103918~
EARLY AND LATE TYPE IDENTIFICATION
The ABS control module can be identified by the part number located on the side of the controller, as shown.
PARTS SUPPLY DATA
